M512-3 Juggler : User Guide © 2021 7thSense
Connect a Juggler Optical Data Bus
4-Lane ‘Half’ Bus
Using the ‘half-bus’ optical transceivers, Juggler modules can be bused together using on-board SFP
modules. Each fibre optic cable carries 1 lane in each direction.

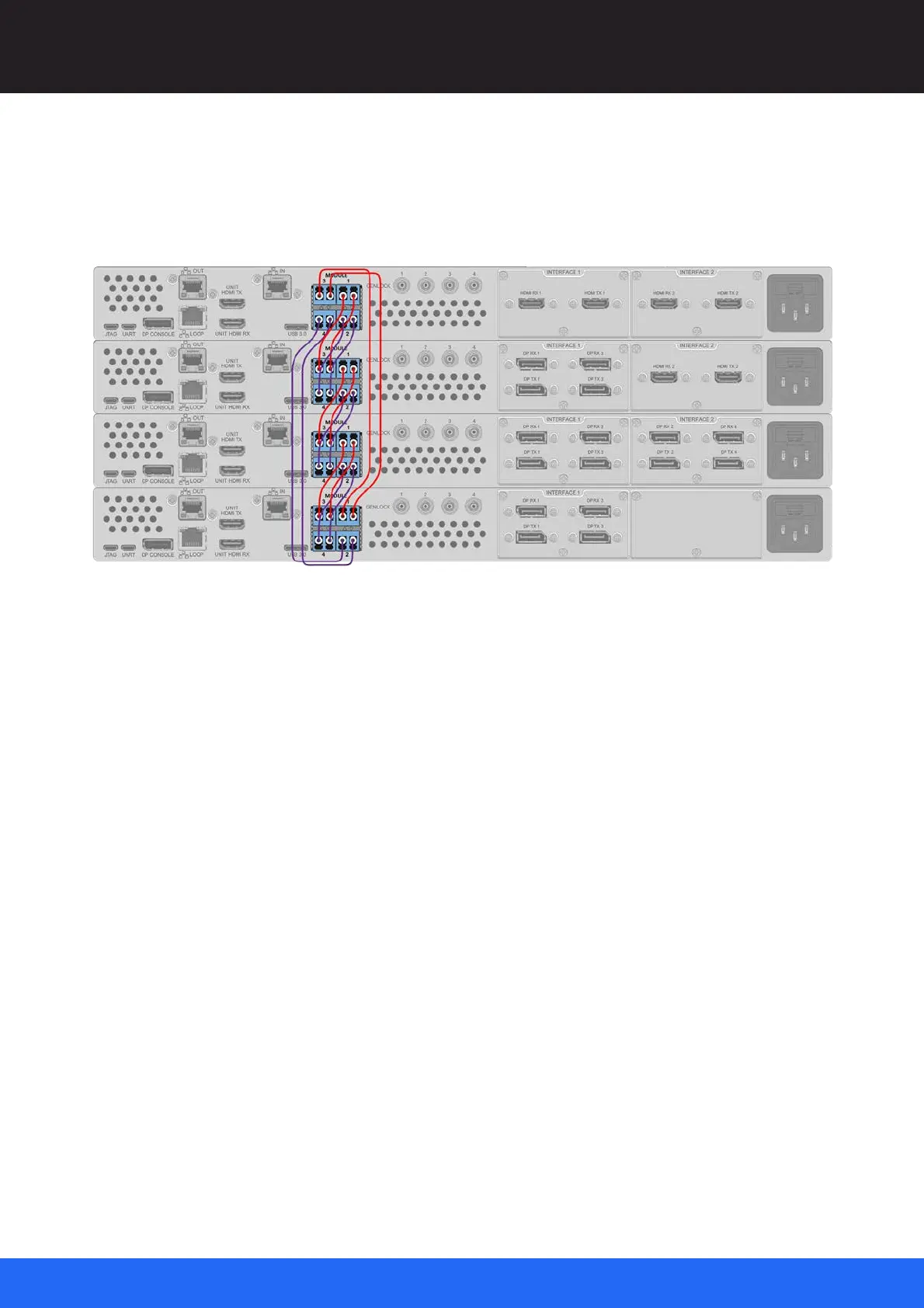

Units are daisy-chained progressively unit to unit, 1 to 3, 2 to 4 and loop back from the last unit to the
first in the same way.
We recommend the use of paired crossover patch cables, which will have colour or tag identifiers. It
can be helpful to choose an identifier to work with (yellow, a number etc.) and keep these on the
outside as you work down one side and up the other. In this example, yellow-sleeved and tagged A:
