12 BM series
Slide breeze brea
k
（doo
r
）
Weighing pan/
Pan support
(
Note 2
)
A
ttach the slide breeze
break (base) while pressing
the sponge part located at
the rear of the slide breeze
break (base) at an angle to
the wall surface.
Weighing pan /
pan support
(Note.2)
Small weighing pan
for filter

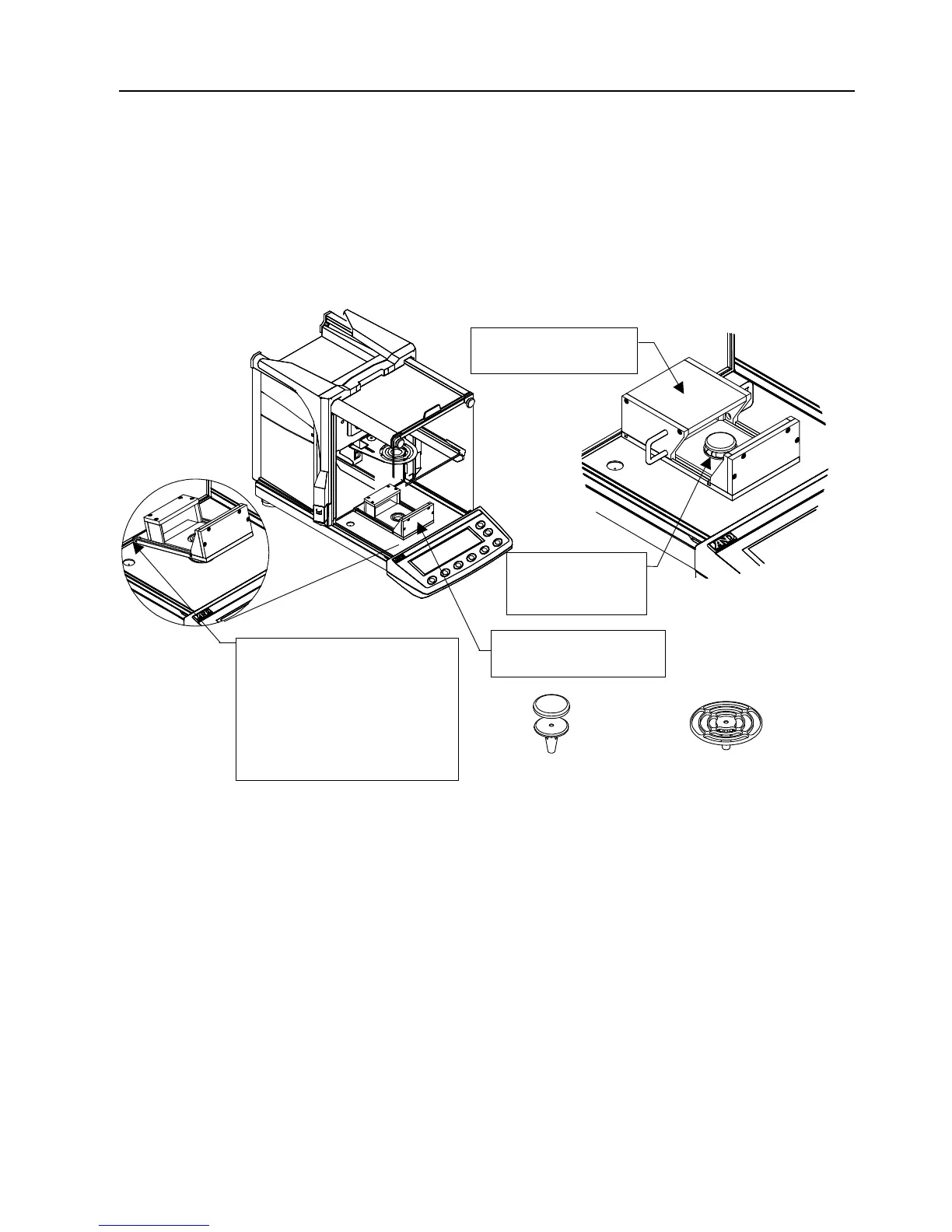

3.1.1. Installing the slide breeze break BM-20 / BM-22
The slide breeze break improves weighing precision by reducing the negative effects from the
surrounding environment. It is installed inside the weighing chamber of the BM-20 / BM-22.
1 Determine positioning of the slide breeze break to align the slide breeze break (base) hole with the
weighing pan/pan support mounted section while pressing the sponge, located at the rear of the slide
breeze break (base), at an angle to the BM-20 or BM-22 wall surface.
2 Attach the weighing pan/pan support and he slide breeze break (door).
Note 1 There may be variations in weighing results after attaching the slide breeze break as it has not
adjusted to the surrounding temperature. Wait a while before making any measurements.
Note 2 The weighing pan / pan support or small weighing pan for filter provided with the BM-20 / BM-22
can be used.
Slide breeze brea
k
（base）
