3. Installing the Balance and Precautions
3.1. Installing the Balance
1 Place the balance on a solid weighing table. Refer to "3.2. Precautions Before Use" for details on
a place to install the balance.
2 Assemble the weighing pan and other parts in accordance with the model and use as shown
below.

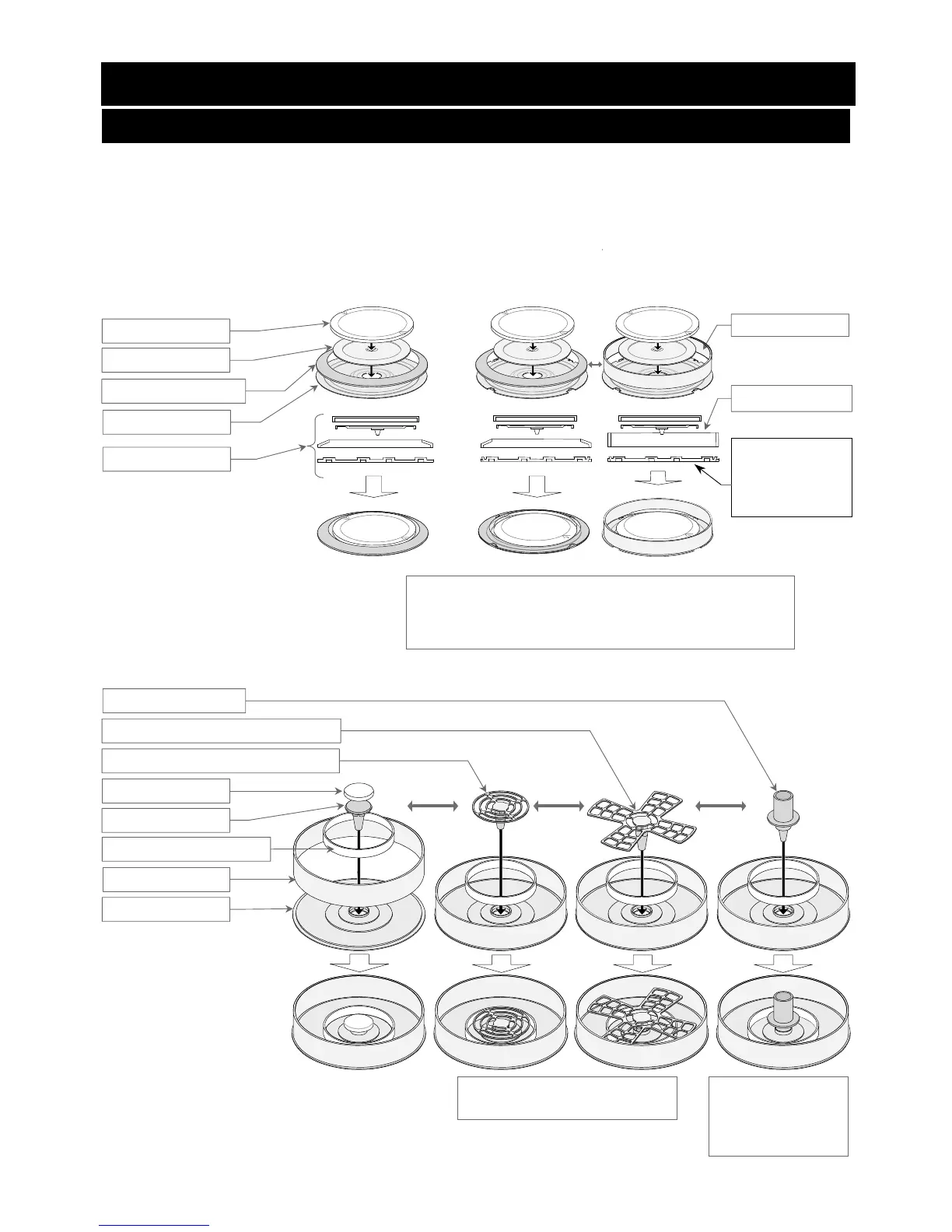

BM-500, BM-300, BM-200 BM-252
BM-20, BM-22
Weighing pan
Breeze break ring
Dust plate
Pan suppor
t
Use the fine range ring in place of the breeze break
ring to avoid errors caused by drafts when weighing
with a minimum display of 0.01 mg.
Fine range ring
Sectional view
Pan suppor
t
Weighing pan
Small
f
ine range ring
Dust plate
Fine range ring
Large weighing pan for filter
Small weighing pan for filter
Choose the weighing pan
appropriate to the filter size.
Micro tube holder
Use the holder for
micro tube or test
tube of 12 mm
or less.
Fine range ring
Note
The mounting
direction of the
dust plate.
