NoteAction
Make sure that the oil temperature is +25°C
± 10°C.
3
WARNING
Handling gearbox oil involves several
safety risks, see Gearbox lubricants (oil or
grease) on page 31.
4

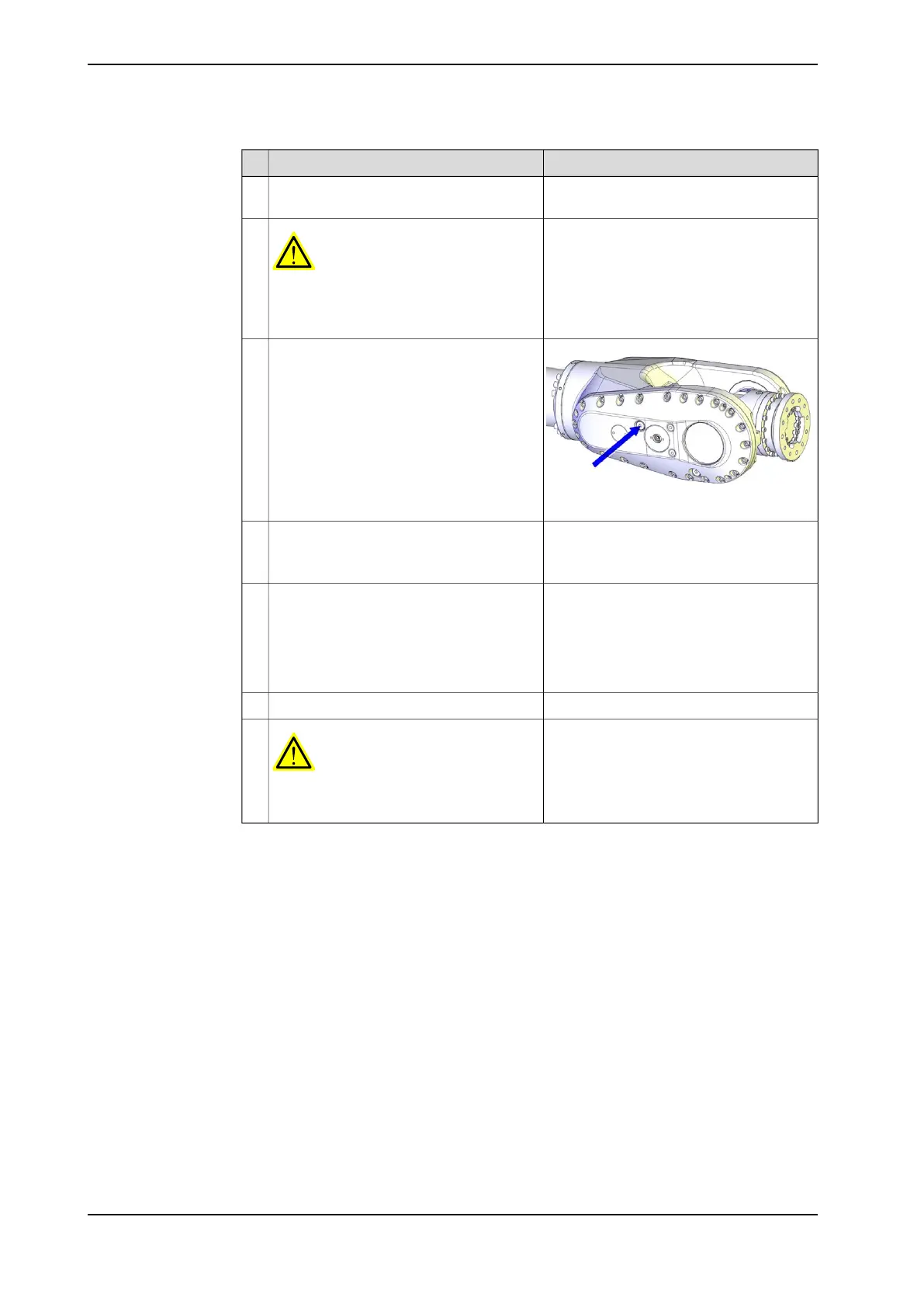

xx1200000959
Open the oil plug.5
Check the oil level.6
Required oil level is: 0 - 10 mm below the
oil plug hole.
Type of oil and total amount is detailed in
Technical reference manual - Lubrication
in gearboxes.
Add or drain oil, if required.7
Further information about how to drain or
fill with oil is found in section Changing oil,
axis-5 gearbox on page 150.
Tightening torque: 24 Nm.Refit the oil plug.8
DANGER
Make sure all safety requirements are met
when performing the first test run.
9
110 Product manual - IRB 6790
3HAC063331-001 Revision: B
© Copyright 2019 - 2020 ABB. All rights reserved.
3 Maintenance
3.3.5 Inspecting the oil level in axis-5 gearbox
Continued
