2.4.4.2 Lifting the robot with roundslings
Roundslings used for lifting and transporting
The robot can be lifted and transported using roundslings according to this section.

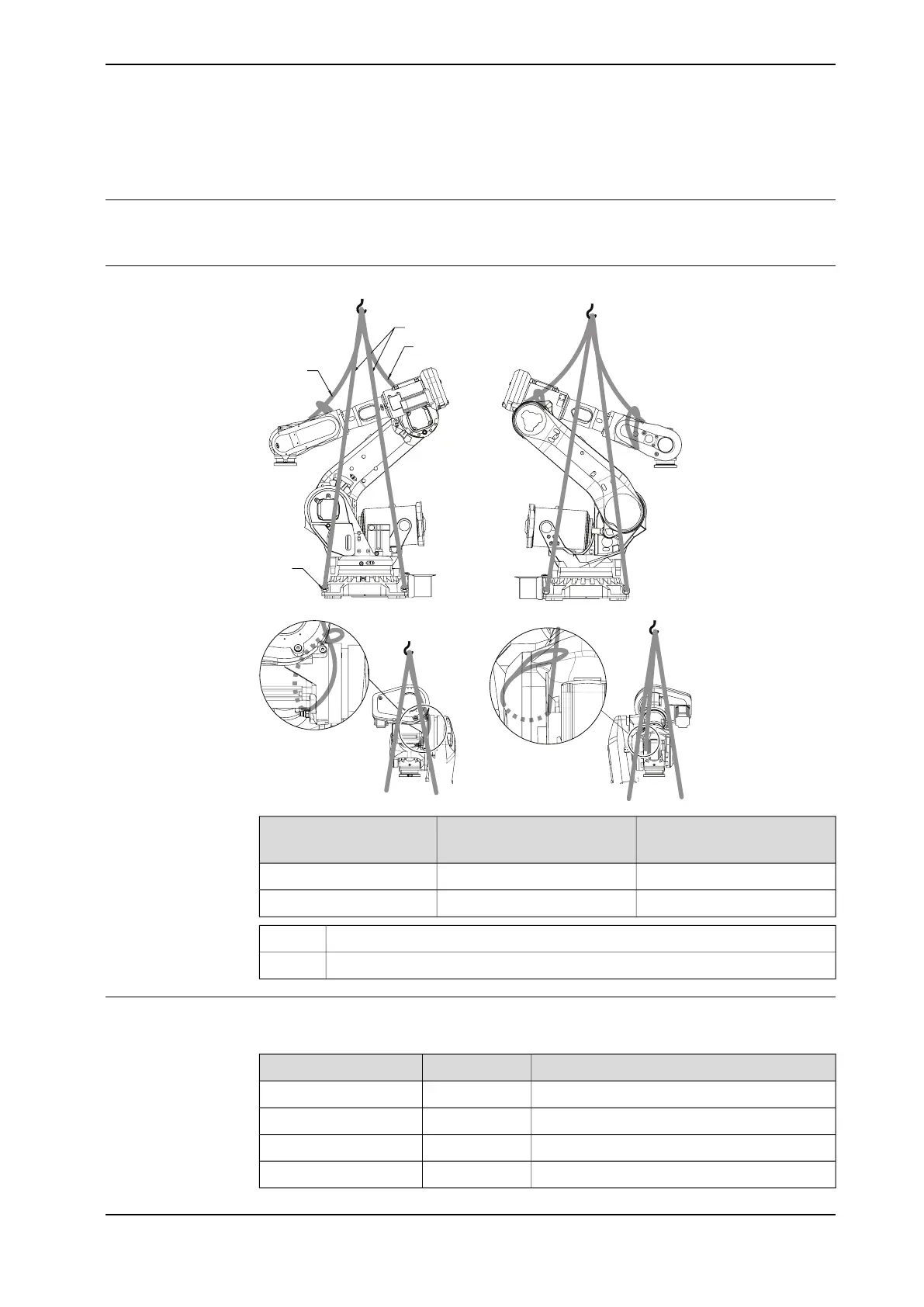

Attaching the roundslings
C
A
B
D
Length B (1 pc)
Do not strain!
Length A (1 pc)
Do not strain!
Variant
Roundsling, 2 mRoundsling, 2 mIRB 6790 - 235/2.65
Roundsling, 2 mRoundsling, 2 mIRB 6790 - 205/2.80
Roundsling, 2.5 m (4 pcs)C
Lifting eye, M20 (4 pcs)D
Required equipment
See quantity of roundslings in figure Attaching the roundslings on page 61.
NoteArticle numberEquipment, etc.
-Overhead crane
Working load limit: 2,000 kg.-Lifting eye, M20
Length: 2 m. Lifting capacity: 2,000 kg.-Roundsling, 2 m
Length: 2.5 m. Lifting capacity: 2,000 kg.-Roundsling, 2.5 m
