4.3 Lifting associated procedures
4.3.1 Attaching lifting accessories to complete arm system
Definition of the complete arm system
The complete arm system consists of the following parts of the robot:
• upper arm
• wrist
• lower arm
• frame

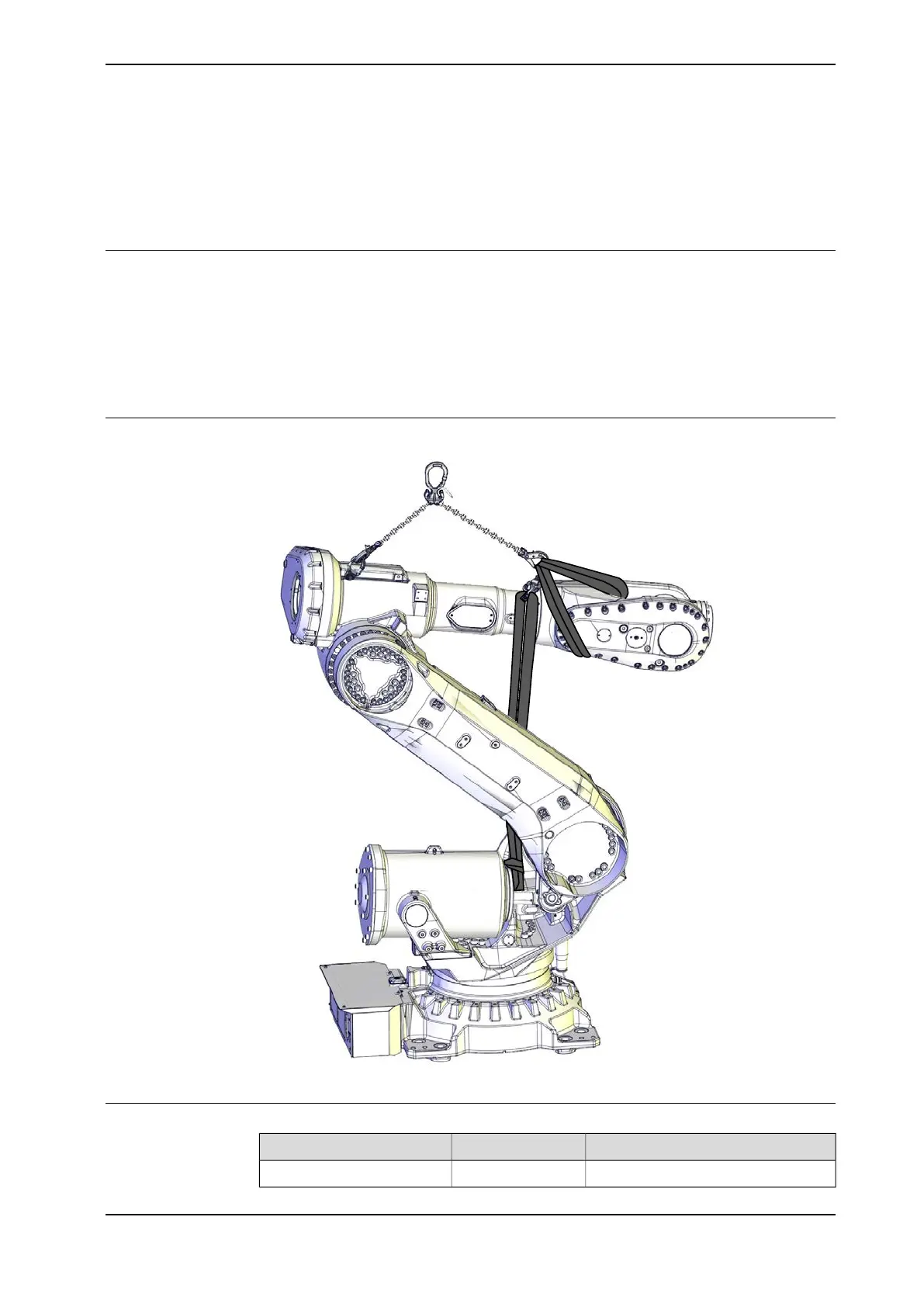

Attachment points of lifting accessory
Required tools
NoteArticle numberEquipment, etc.
M123HAC16131-1Lifting eye
Continues on next page
