3.3 Inspection activities
3.3.1 Inspecting the oil level in axis-1 gearbox
Location of oil plug

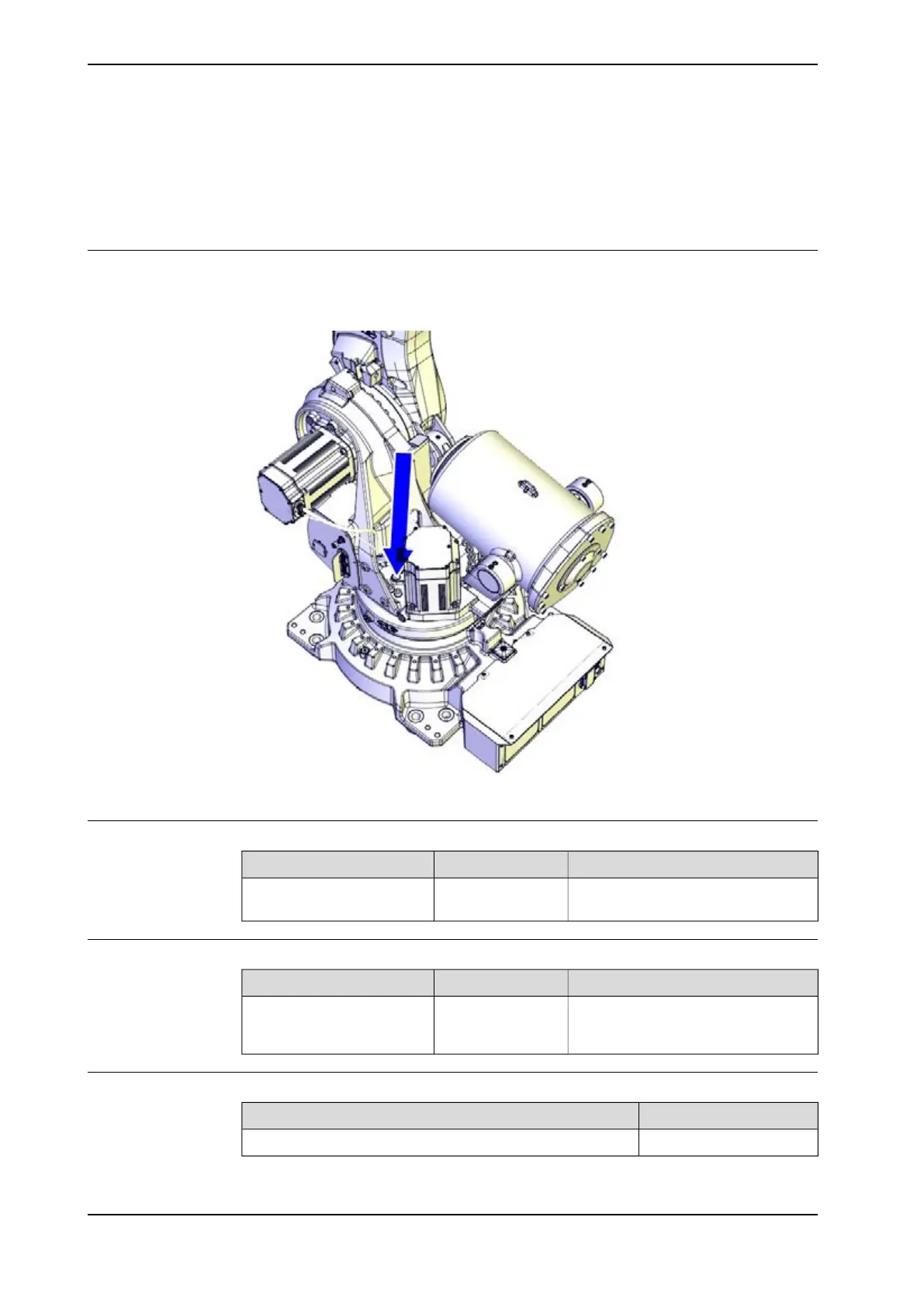

The oil plug through which the oil level is inspected is located as shown in the
figure.
xx1200000950
Required tools
NoteArticle numberEquipment
Content is defined in section Standard
toolkit on page 652.
-Standard toolkit
Required consumables
NoteArticle numberConsumables
Information about the oil is found in
Technical reference manual - Lubrica-
tion in gearboxes.
-Lubricating oil
Required documents
Document numberDocument name
3HAC042927-001Technical reference manual - Lubrication in gearboxes
