5.4.3 Installation locations for the calibration tools
Location of fixed calibration items
This section shows how the robot is equipped with items for installation of
calibration tools for Axis Calibration (fixed calibration pins and/or bushings).
Installed calibration tools are not shown.

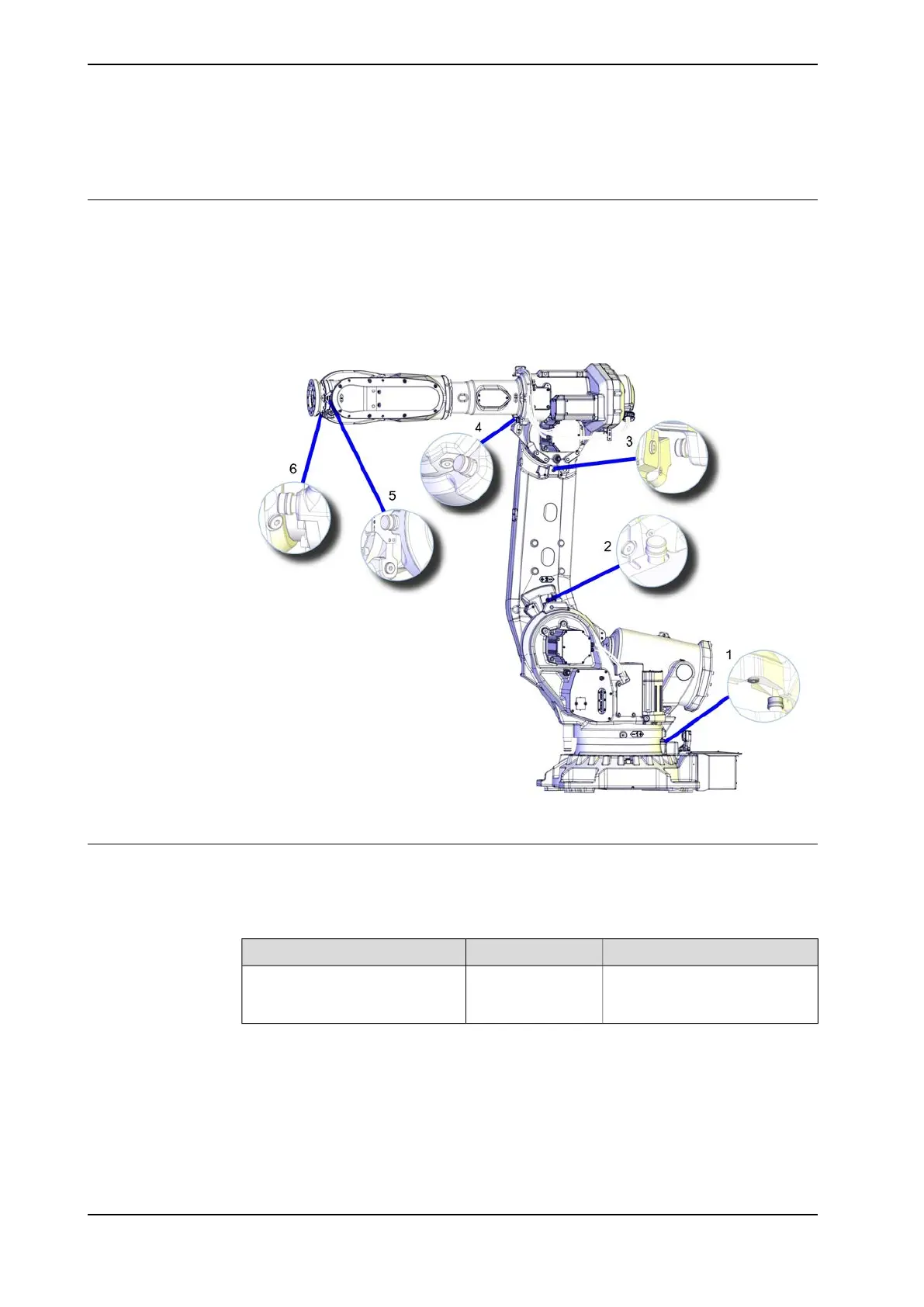

A fixed calibration pin and a bushing for the movable calibration tool are located
on each axis as follows.
xx1500000890
Spare parts
When calibration is not being performed, a protective cover and an o-ring should
always be installed on the fixed calibration pin as well as a protective plug, included
a sealing, in the bushing. Replace damaged parts with new.
NoteArticle numberSpare part
Contains replacement calibration
pin covers and protective plugs
for the bushing.
3HAC064875-001Protection cover and plug set
628 Product manual - IRB 6790
3HAC063331-001 Revision: B
© Copyright 2019 - 2020 ABB. All rights reserved.
5 Calibration
5.4.3 Installation locations for the calibration tools
