NoteAction
xx1200000950

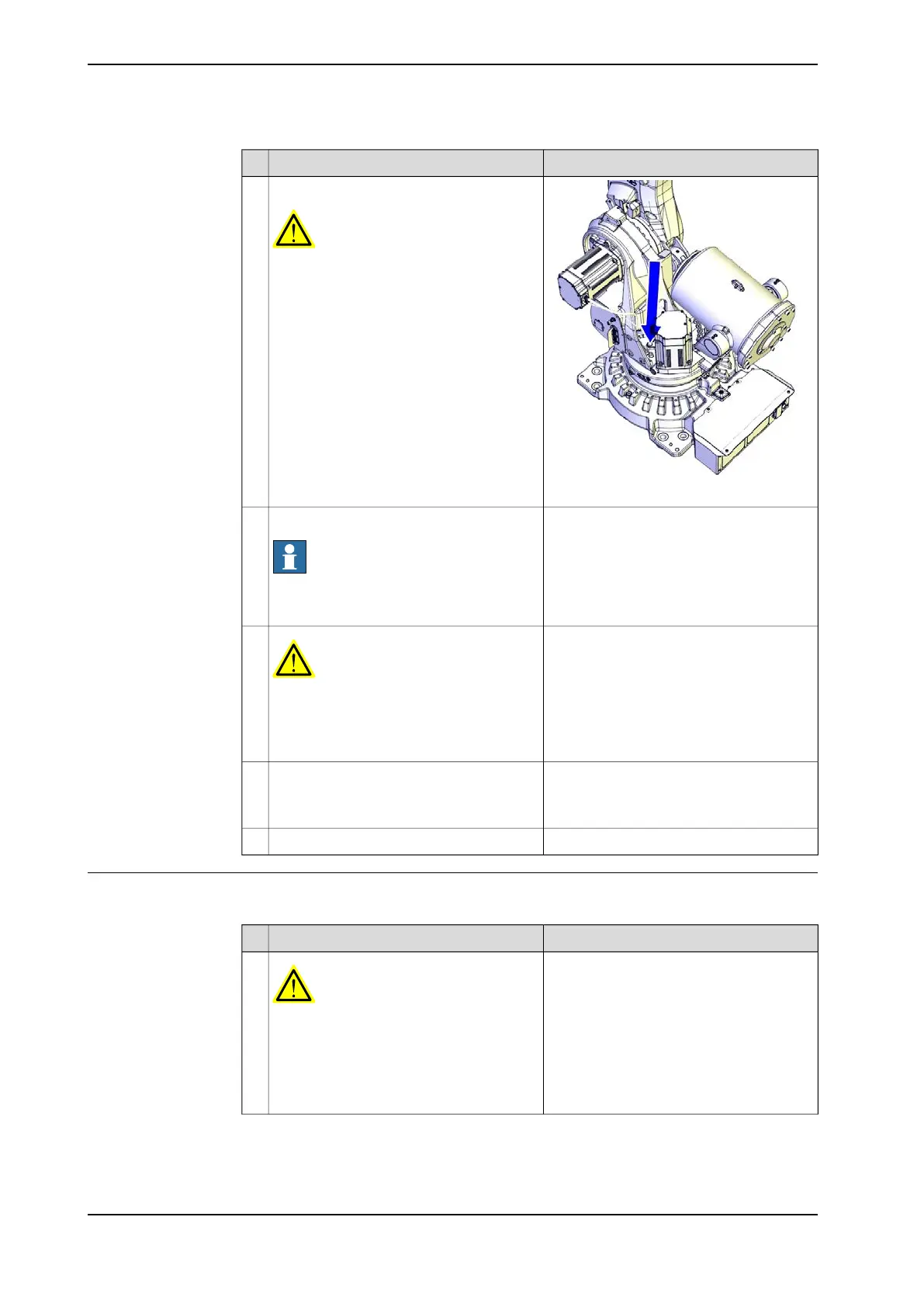

Remove the plug from the vent hole.
WARNING
Open the vent hole while using the dis-
penser, to avoid damaging vital parts in the
gear.
5
Suck out the oil with the oil dispenser.
Note
There will be some oil left in the gear after
draining.
6
WARNING
Used oil is hazardous material and must
be disposed of in a safe way. See section
Decommissioning on page 639 for more in-
formation.
7
Remove the oil dispenser.8
Apply Mercasol on the nipple.
Refit the protective cap on the nipple.
Tightening torque: 24 Nm.Refit the vent hole plug.9
Filling oil into the axis-1 gearbox
Use this procedure to refill the gearbox with oil.
NoteAction
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
to the robot, before entering the safe-
guarded space.
1
Continues on next page
134 Product manual - IRB 6790
3HAC063331-001 Revision: B
© Copyright 2019 - 2020 ABB. All rights reserved.
3 Maintenance
3.5.2 Changing oil, axis-1 gearbox
Continued
