NoteAction

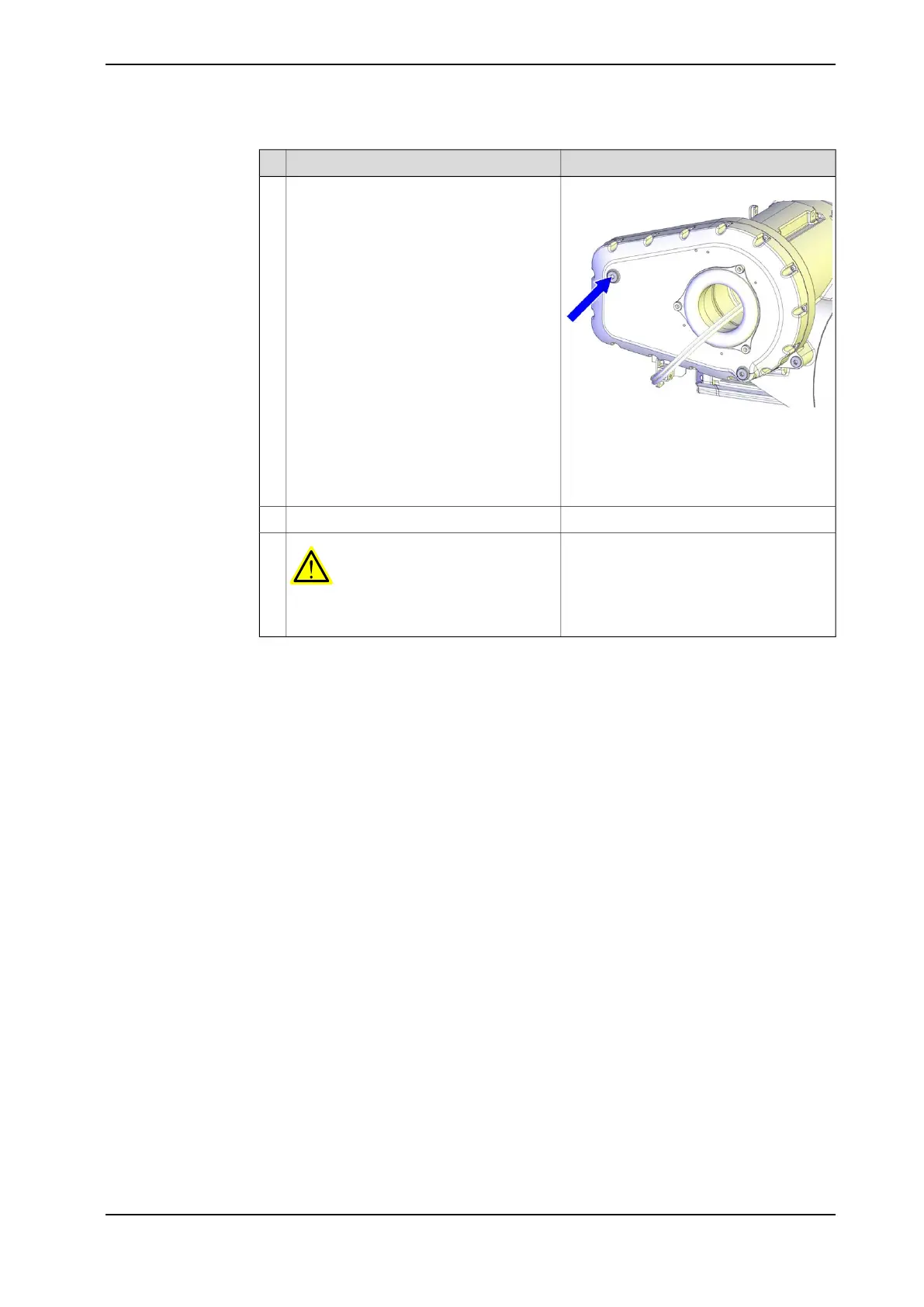

The level is measured at the fill hole.
xx1200000957
Inspect the oil level.6
Required oil level is: 0 - 10 mm below the
oil plug hole.
See Inspecting the oil level in axis-4 gear-
box on page 107.
Tightening torque: 24 NmRefit the oil plug.7
DANGER
Make sure all safety requirements are met
when performing the first test run.
8
