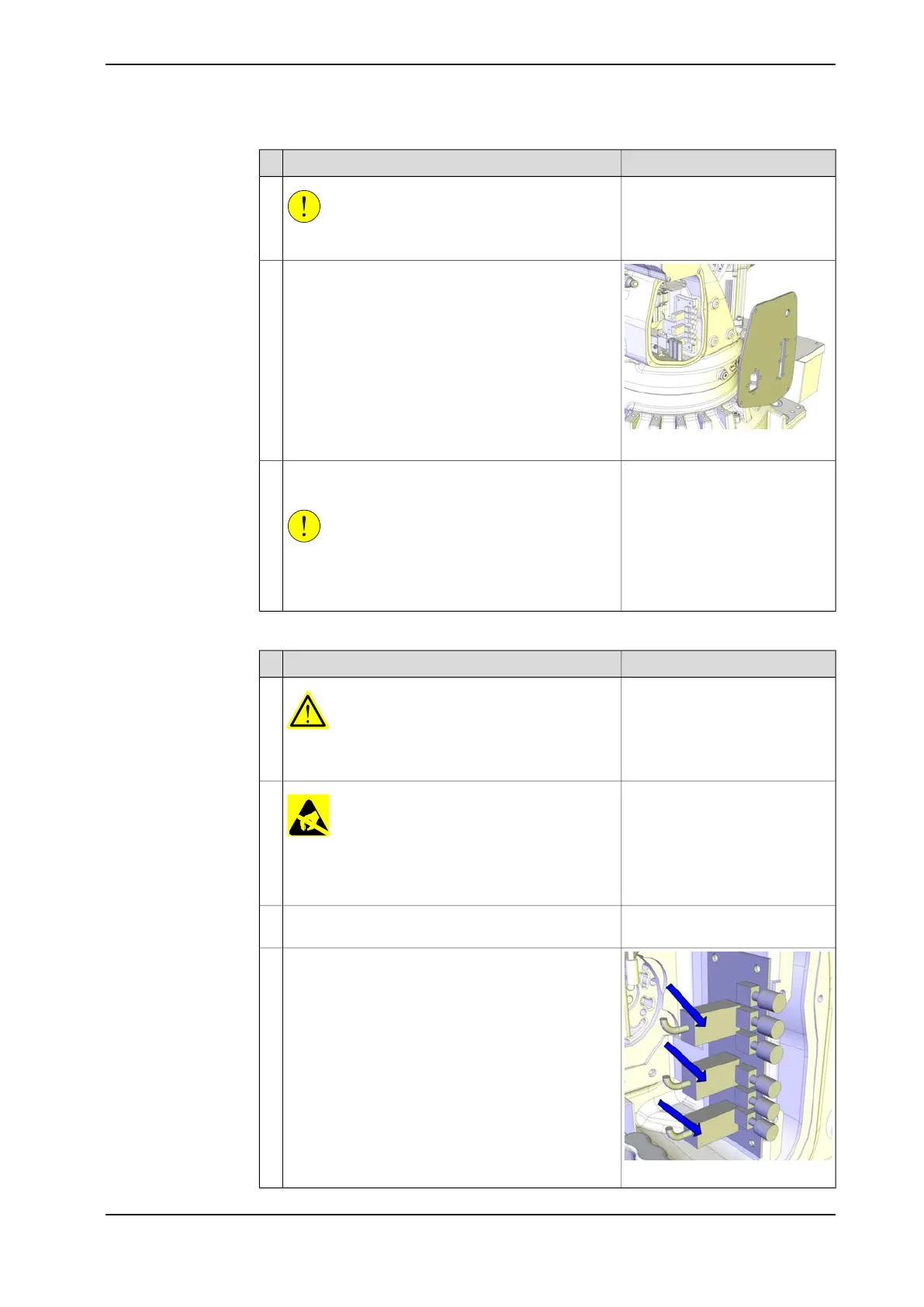

NoteAction
CAUTION
Turn off the air pressure supply.
5
xx1300000742
Remove the SMB cover.6
The battery can stay connected, to avoid the need of
synchronizing the robot.
CAUTION
If the battery stays connected, put (or hold) the SMB
cover in a safe position. The battery cable connectors
can otherwise be damaged.
7
Disconnecting the brake release unit
NoteAction
DANGER
Make sure that all supplies for electrical power and
hydraulic pressure are turned off.
1
ELECTROSTATIC DISCHARGE (ESD)
The unit is sensitive to ESD. Before handling the unit
please read the safety information in the section The
unit is sensitive to ESD on page 49
2
Take a picture or make notes of how the robot cabling
is positioned in regard to the brake release board.
3
xx1300000670
Remove the connectors X8, X9 and X10 from the
brake release board.
4
Continues on next page
Product manual - IRB 6790 249
3HAC063331-001 Revision: B
© Copyright 2019 - 2020 ABB. All rights reserved.
4 Repair
4.4.4 Replacing the brake release unit
Continued
