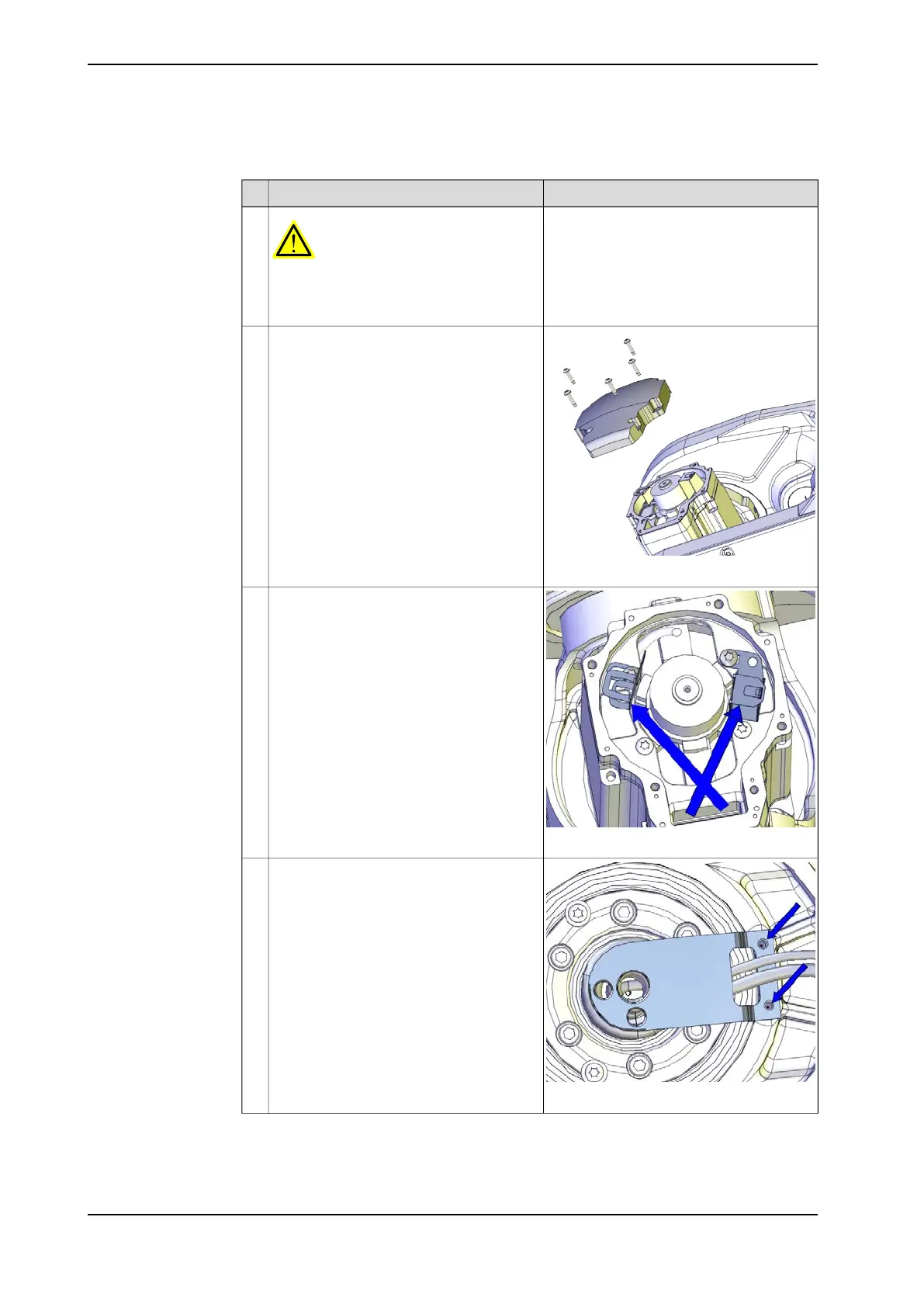

Disconnecting the axis-6 motor cables
NoteAction
DANGER
Make sure that all supplies for electrical
power and hydraulic pressure are turned
off.
1
xx1200001080
Unscrew the attachment screws and re-
move the motor cover.
2
xx1300000488
Disconnect the motor cables.3
xx1300000484
Unscrew the attachment screws that hold
the cable bracket.
