NoteAction
xx1200001135

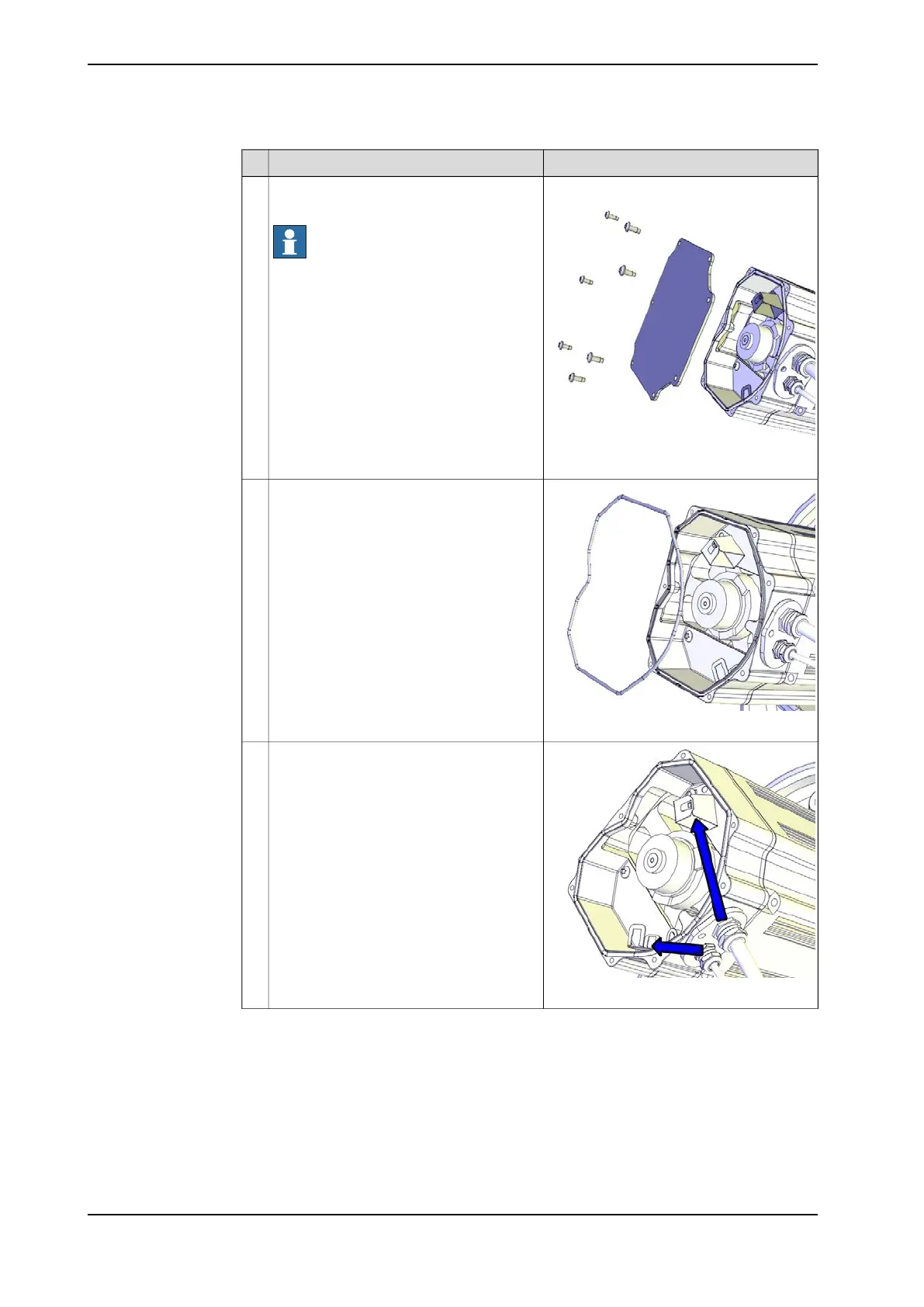

Unscrew the attachment screws and
washers and remove the motor cover.
Note
Axis 3 and 4 motors only:
Be careful not to damage the air hose or
air nipple.
2
xx1200001070
Make sure the o-ring is present.3
xx1200001066
Disconnect the motor cables.4
