NoteAction
Bits extender: 3HAC12342-1
xx1200001071

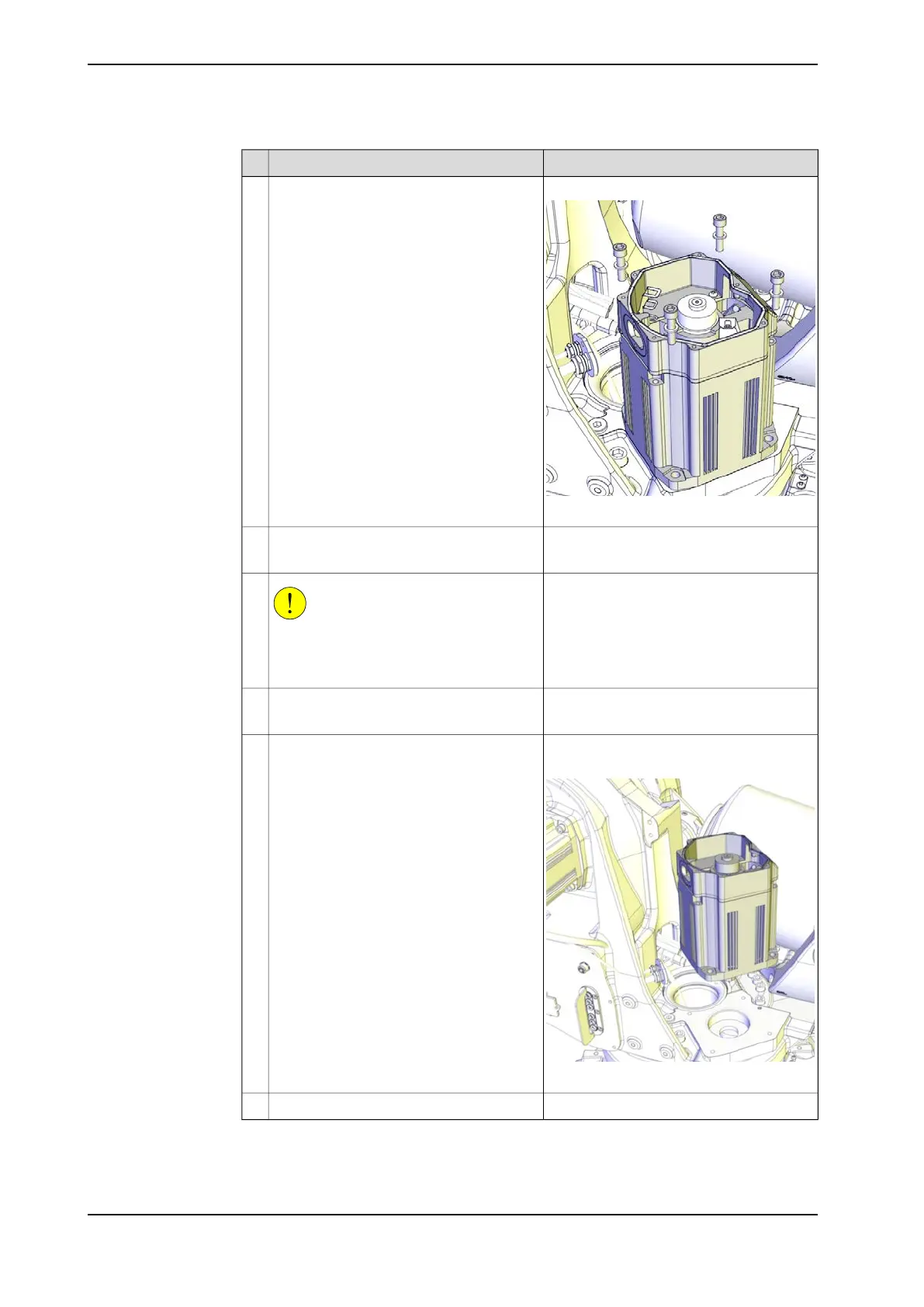

Unscrew the attachment screws and
washers.
Use a bits extender to reach the screws.
5
Guide pin, M12x150: 3HAC13056-2Fit guide pins in opposite holes.6
Always use guide pins in pairs.
CAUTION
Whenever parting/mating motor and gear-
box, the gears may be damaged if excess-
ive force is used.
7
Removal tool M12: 3HAC057339-002If needed, use removal tools to help re-
move the motor.
8
Always use removal tools in pairs.
Lifting accessory (chain): 3HAC15556-1Use caution and lift the motor straight up
to get the pinion parted from the gear.
9
Lifting accessory, motor: 3HAC14459-1.
xx1200001072
Disconnect the 24 VDC power supply.10
Continues on next page
512 Product manual - IRB 6790
3HAC063331-001 Revision: B
© Copyright 2019 - 2020 ABB. All rights reserved.
4 Repair
4.8.1 Replacing the axis-1 gearbox
Continued
