R
xx1300000262

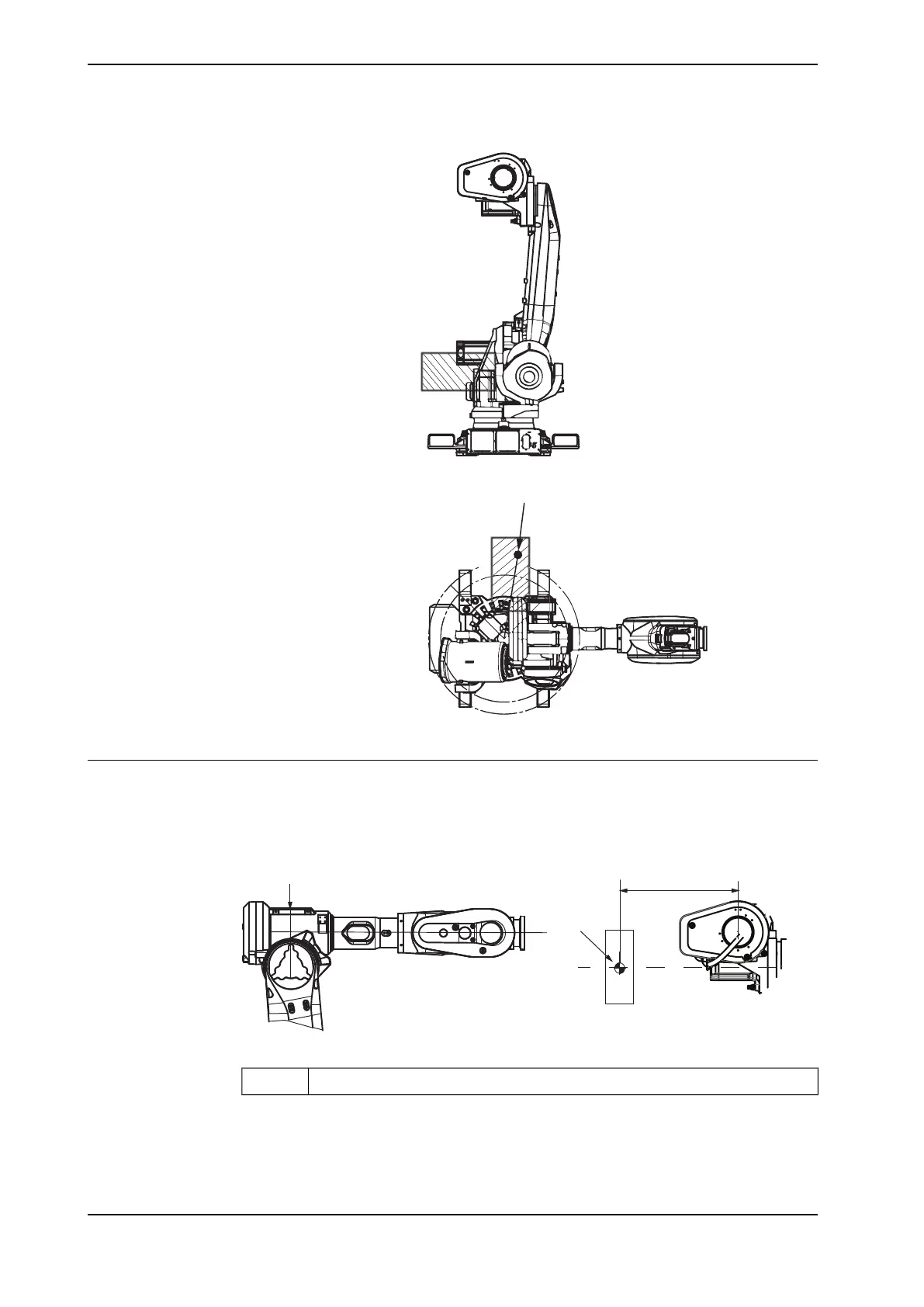

Upper arm
Allowed extra load on the upper arm housing, in addition to the maximum handling
weight, is M1 ≤ 50 kg with a distance (a) ≤ 500 mm from the center of gravity in the
axis-3 extension.
a
(A)
M1
M1
xx1400002019
Mass centerA
