Actual signals and parameters 177
1404
RO 1 ON DELAY
0.0 … 3600.0 s 0.1 s 0.0 s
Defines the switch-on delay for
relay 1.
• On / off delays are ignored when
relay output of parameter 1401
RELAY OUTPUT 1 is set to
PFA.
1405
RO 1 OFF DELAY
0.0 … 3600.0 s 0.1 s 0.0 s
Defines the switch-off delay for relay 1.
• On / off delays are ignored when relay output of parameter 1401 RELAY OUTPUT 1
is set to PFA.
1406
RO 2 ON DELAY
0.0 … 3600.0 s 0.1 s 0.0 s
Defines the switch-on delay for relay 2.
• See parameter 1404 RO 1 ON DELAY.
1407
RO 2 OFF DELAY
0.0 … 3600.0 s 0.1 s 0.0 s
Defines the switch-on delay for relay 2.
• See parameter 1405 RO 1 OFF DELAY
.
1408
RO 3 ON DELAY
0.0 … 3600.0 s 0.1 s 0.0 s
Defines the switch-on delay for relay 3.
• See parameter 1404 RO 1 ON DELAY.
1409
RO 3 OFF DELAY
0.0 … 3600.0 s 0.1 s 0.0 s
Switch-off delay for relay 3.
• See parameter 1405 RO 1 OFF DELAY.
1410
RELAY OUTPUT 4
0…69 1 0
Defines the event or condition that activates relay 4 – what relay output 4 means.
• See parameter 1401 RELAY OUTPUT 1. (Relay Output 2 only with MREL-01)
1413
RO 4 ON DELAY
0.0 … 3600.0 s 0.1 s 0.0 s
Defines the switch-on delay for relay 4.
• See parameter 1404 RO 1 ON DELAY.
1414
RO 4 OFF DELAY
0.0 … 3600.0 s 0.1 s 0.0 s
Defines the switch-off delay for relay 4.
• See parameter 1405 RO 1 OFF DELAY.

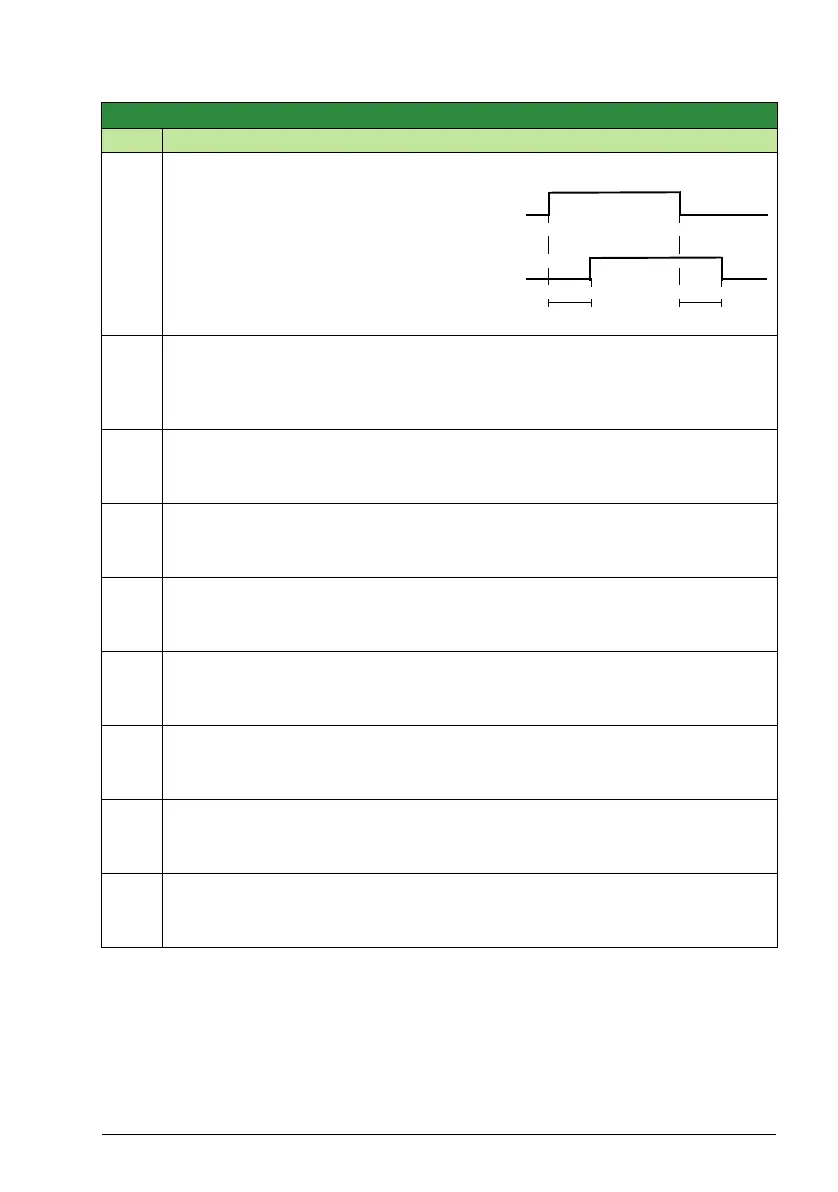

Group 14: Relay outputs
Code Description Range Resolution Default S
Control event
Relay status
1404 1405
