ABB ACS320 - Page 189

Actual signals and parameters 189
1809
FO CONTENT MIN
---
Defines the minimum frequency output FO signal value. Signal is selected with
parameter 1808 FO CONTENT SEL.

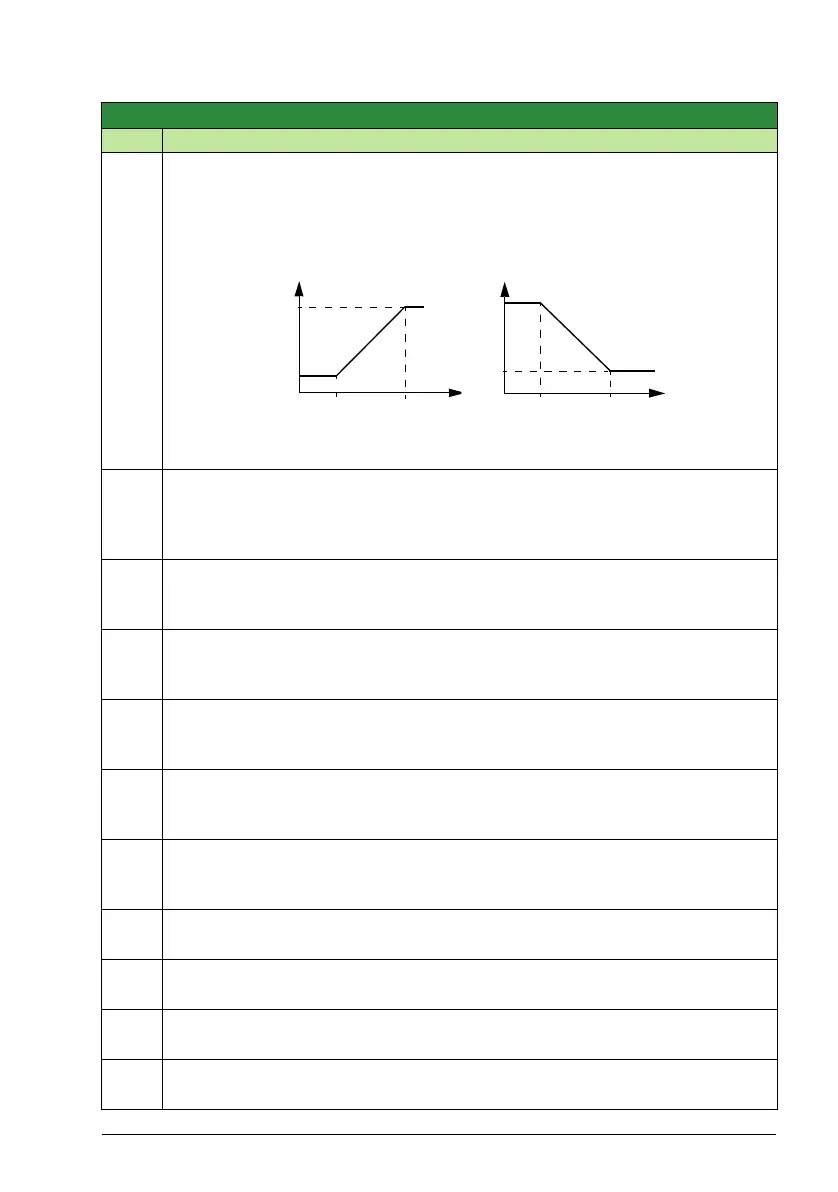

FO minimum and maximum correspond to 1811 MINIMUM FO and 1812 MAXIMUM
FO settings as follows:
Setting range depends on parameter 1808 FO CONTENT SEL setting.
1810
FO CONTENT MAX
---
Defines the maximum frequency output FO signal value. Signal is selected with
parameter 1808 FO CONTENT SEL. See parameter 1809 FO CONTENT MIN.
Setting range depends on parameter 1808 FO CONTENT SEL setting.
1811
MINIMUM FO
10 … 16000 Hz 1 = 1 Hz 10 Hz
Defines the minimum value for frequency output FO. See parameter 1809 FO
CONTENT MIN.
1812
MAXIMUM FO
10 … 16000 Hz 1 = 1 Hz 1000 Hz
Defines the maximum value for frequency output FO. See parameter 1809 FO
CONTENT MIN.
1813
FILTER FO
0.0 … 10.0 s 1 = 0.1 s 0.1 s
Defines the filter time constant for frequency output FO, ie, the time within 63% of a
step change is reached.
1814
DI 1 ON DELAY
0.0 … 3600.0 s 1 = 0.1 s 0.0 s
Defines the delay from the signal change to the change of the digital input DI to the
ON state.
1815
DI 1 OFF DELAY
0.0 … 3600.0 s 1 = 0.1 s 0.0 s
Defines the delay from the signal change to the change of the digital input DI to the
OFF state.
1816
DI 2 ON DELAY
0.0 s
See parameter 1814 DI 1 ON DELAY.
1817
DI 2 OFF DELAY
0.0 s
See parameter 1815 DI 1 OFF DELAY.
1818
DI 3 ON DELAY
0.0 s
See parameter 1814 DI 1 ON DELAY.
1819
DI 3 OFF DELAY
0.0 s
See parameter 1815 DI 1 OFF DELAY.
Group 18: Freq in & tran out
Code Description Range Resolution Default S
1812
1811
1809 1810
1812
1811
1809 1810
FO
content
FO
FO
FO
content
