222 Actual signals and parameters
3616
START DAY 4
1…7 1 1
Defines timer 4 weekly start day.
• See parameter 3604 START DAY 1.
3617
STOP DAY 4
1…7 1 1
Defines timer 4 weekly stop day.
• See parameter 3605 STOP DAY 1.
3622
BOOST SEL
-5…5 1 0
Selects the source for the booster signal.
0 = NOT SEL – Booster signal is disabled.
1 = DI1 – Defines DI1 as the booster signal.
2…5 = DI2…DI5 – Defines DI2…DI5 as the booster signal.
-1 = DI1(INV) – Defines an inverted digital input DI1 as the booster signal.
-2…-5 = DI2(INV)…DI5(INV) – Defines an inverted digital input DI2…DI5 as the
booster signal.
3623
BOOSTER TIME
00:00:00 … 23:59:58 2 s 12:00:00
Defines the booster ON
time. Time is started
when booster sel signal
is released. If parameter
range is 01:30:00, then
booster is active for 1
hour and 30 minutes
after activation DI is
released.
Group 36: Timed functions
Code Description Range Resolution Default S

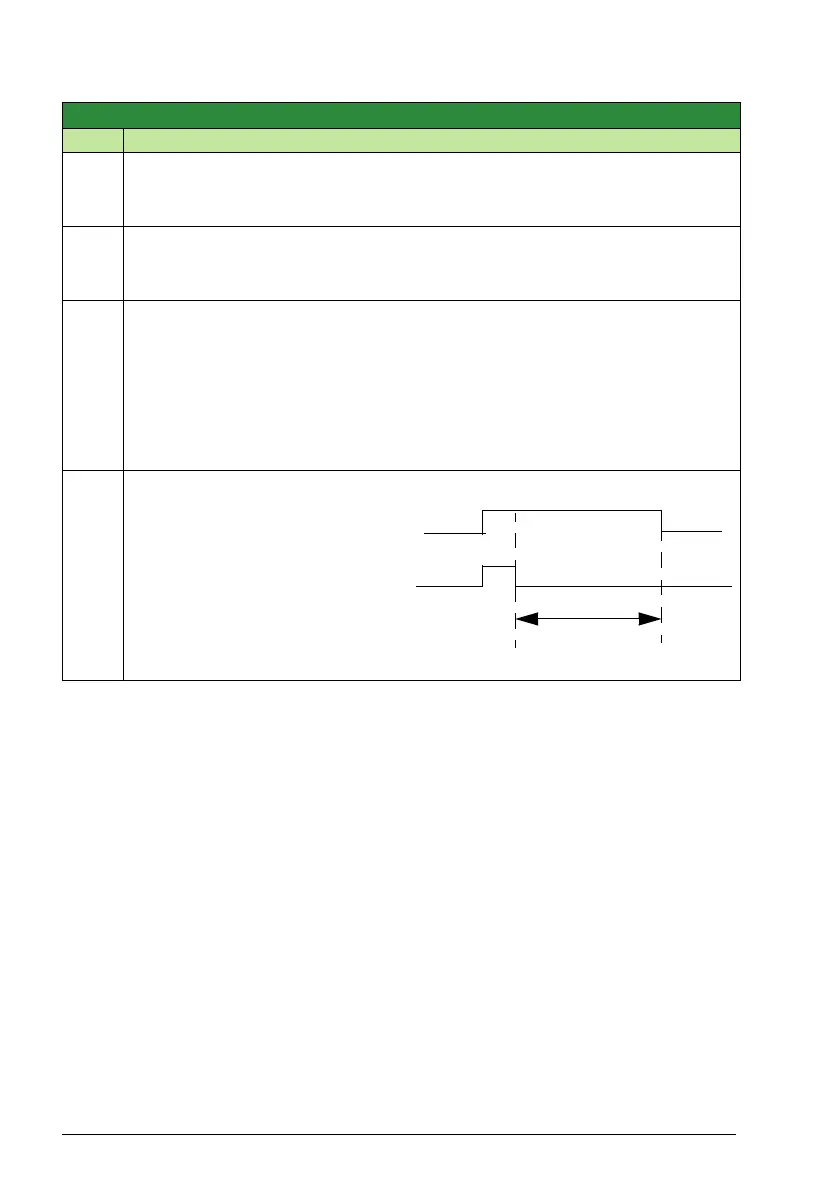

Booster active
Activation DI
Booster time
