ABB ACS320 User Manual

Electrical installation 51

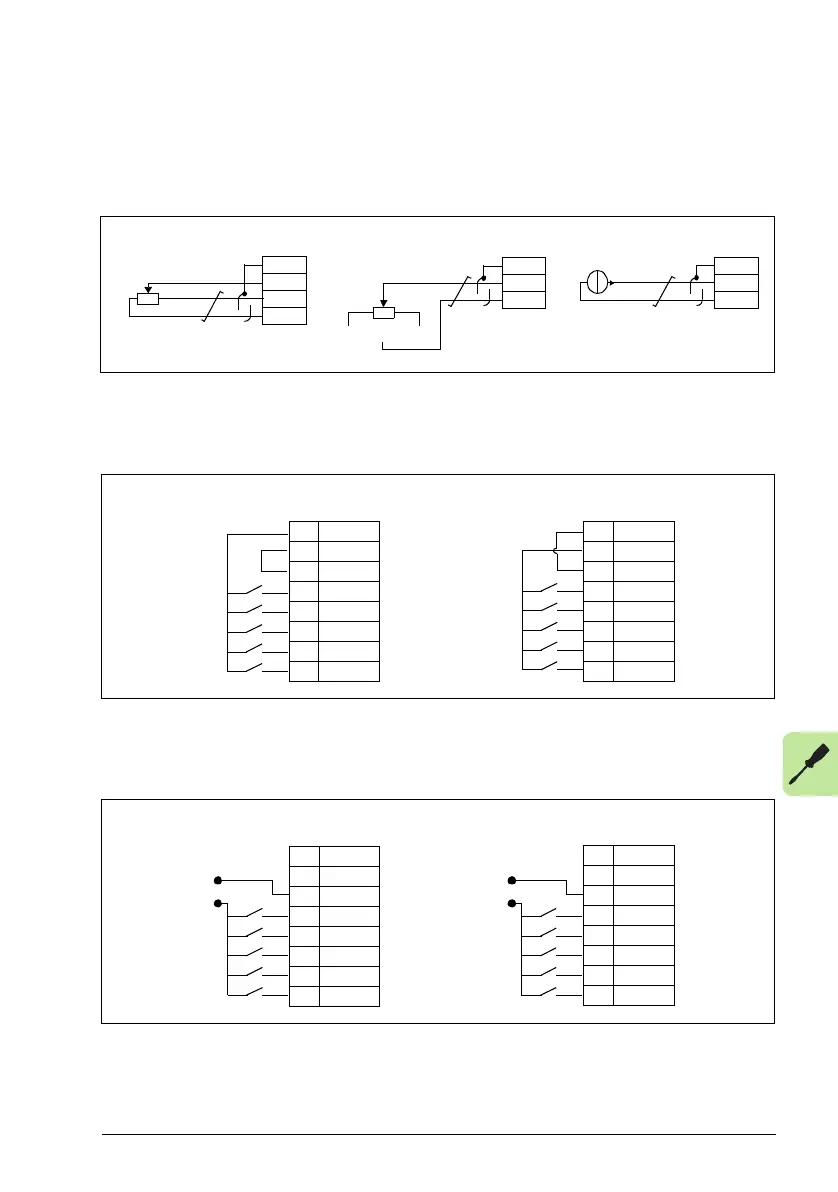

Voltage and current connection for analog inputs
Bipolar voltage (-10…10 V) and current (-20…20 mA) are also possible. If a bipolar
connection is used instead of a unipolar one, see section Programmable analog
inputs on page 107 for how to set parameters accordingly.
PNP and NPN configuration for digital inputs
You can wire the digital input terminals in either a PNP or NPN configuration.
External power supply for digital inputs
For using an external +24 V supply for the digital inputs, see the figure below.
SCR
AI
+10V
1…10 kohm
Unipolar voltage
+10 V GND -10 V
Bipolar voltage Unipolar/Bipolar current
Use external power supply.
GND
SCR
AI
GND
SCR
AI
GND
9 +24V
10 GND
11 DCOM
12 DI1
13 DI2
14 DI3
15 DI4
16 DI5
9 +24V
10 GND
11 DCOM
12 DI1
13 DI2
14 DI3
15 DI4
16 DI5
X1X1
NPN connection (sink)PNP connection (source)
NPN connection (sink)PNP connection (source)
9 +24V
10 GND
11 DCOM
12 DI1
13 DI2
14 DI3
15 DI4
16 DI5
9+24V
10 GND
11 DCOM
12 DI1
13 DI2
14 DI3
15 DI4
16 DI5
X1X1
+24 V DC
0VDC
0VDC
+24 V DC

ABB ACS320 Specifications

General

Overload Capacity	150% for 60 seconds
IP Rating	IP20
Frame Size	R1 to R3
Enclosure Rating	IP20
Frequency Range	0 to 500 Hz
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Short circuit, Ground fault, Overtemperature
Fieldbus Communication	Modbus RTU, PROFIBUS DP, CANopen
Communication Interfaces	RS485
Operating Temperature	-10 to +50 °C (14 to 122 °F)
Storage Temperature	-40°C to +70°C
Humidity	Less than 95% (non-condensing)
Supply Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
