• UPLOAD TO PANEL – Copies all parameters from the drive to the Control panel.
This includes user sets of parameters (if defined) and internal parameters. The
Control panel memory is non-volatile and does not depend on the panel’s battery.
To upload parameters to control panel, follow these steps:

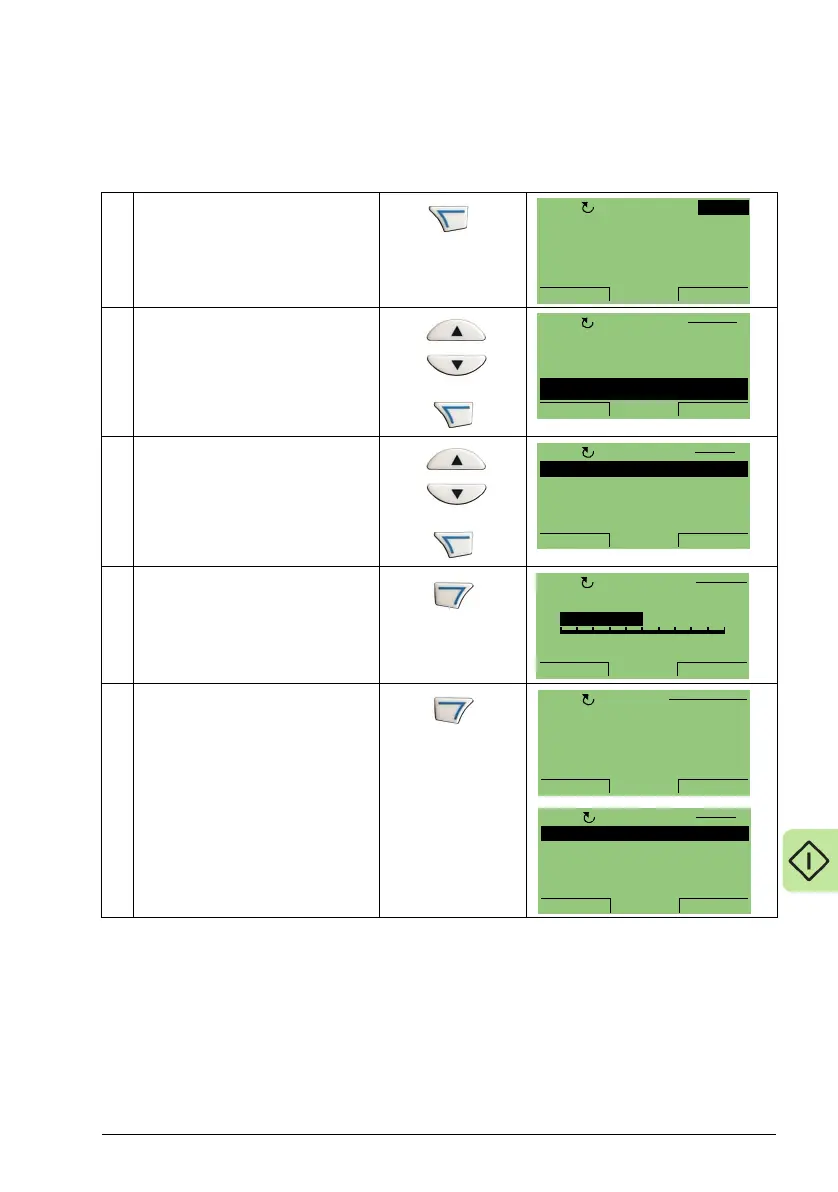

1
Select MENU to enter the main
menu.
2
Select PAR BACKUP with the
UP/DOWN buttons and select
ENTER.
3
Select UPLOAD TO PANEL and
select SEL.
4
The “Copying parameters” text
and a progress diagram is
displayed. Select ABORT if you
want to stop the process.
5
The “Parameter upload
successful” text is displayed and
the control panel returns to the
PAR BACKUP menu. Select
EXIT to return to the main menu.
Now you can disconnect the
panel.
