72 Start-up
• DOWNLOAD FULL SET – Restores the full parameter set from the Control panel
to the drive. Use this option to restore a drive, or to configure identical drives. This
download does not include user sets of parameters.

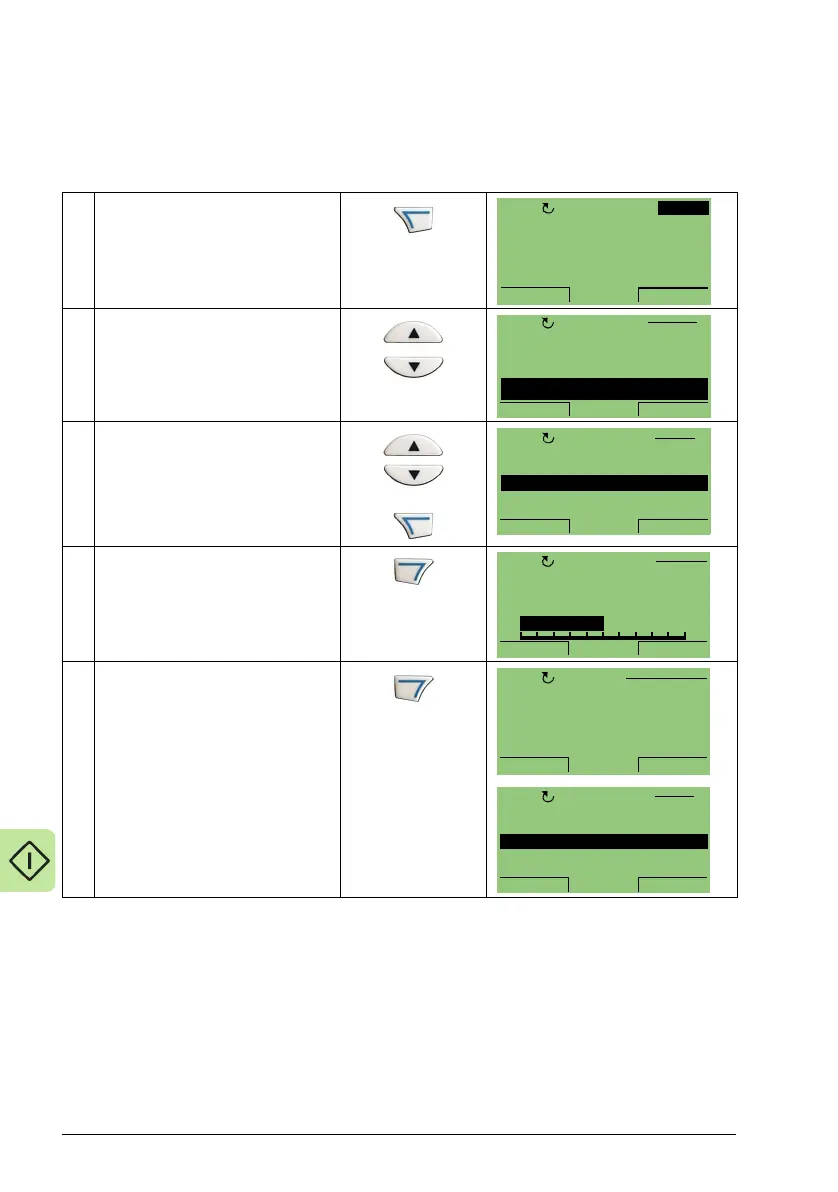

To download all parameters to drive, follow these steps:
Note: Download full set writes all parameters to the drive, including motor
parameters. Only use this function to restore a drive, or to transfer parameters to
systems that are identical to the original system.
1
Select MENU to enter the menu.
2
Select PAR BACKUP with the
UP/DOWN buttons.
3
Scroll to DOWNLOAD FULL
SET and select SEL.
4
The “Downloading parameters”
text is displayed. Select ABORT
if you want to stop the process.
5
After the download stops, the
“Parameter download
successfully completed” text is
displayed and the control panel
goes back to PAR BACKUP
menu. Select EXIT to return to
the main menu.
0 A
0 %
0 mA0.
0.
0.
0.0HzOFF
MENU
SP
FAULT LOGGER
CLOCK SET
PAR BACKUP
EXIT ENTER
OFF MAIN MENU 5
UPLOAD TO PANEL
BACKUP INFO
DOWNLOAD FULL SET
DOWNLOAD APPLICATION
PAR BACKUP 3
EXIT
SEL
OFF
ABORT
51%
PAR BACKUP
OFF
Downloading
parameters (full
set)
Parameter download
successfully
completed
MESSAGE
OK
OFF
UPLOAD TO PANEL
BACKUP INFO
DOWNLOAD FULL SET
DOWNLOAD APPLICATION
PAR BACKUP 3
EXIT
SEL
OFF
