• Download application – Copies a partial parameter set from the Control panel to
a drive. The partial set does not include internal motor parameters, parameters
9905…9909, 1605, 1607, 5201, nor any Group 53: EFB protocol parameters. Use
this option to transfer parameters to systems that use similar configurations – the
drive and motor sizes do not need to be the same.

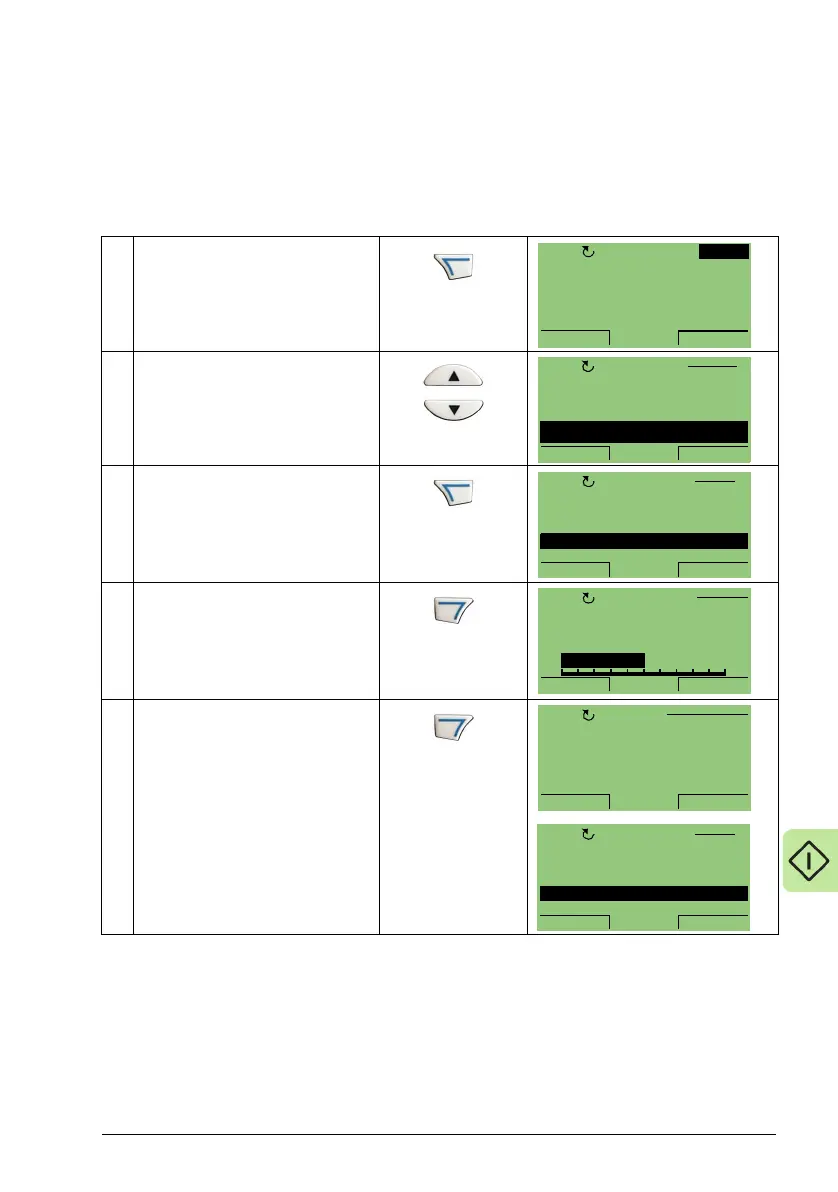

To download application to drive, follow these steps:
1
Select MENU to enter the menu.
2
Select PAR BACKUP with the
UP/DOWN buttons.
3
Scroll to DOWNLOAD
APPLICATION and select SEL.
4
The “Downloading parameters”
text is displayed. Select ABORT
if you want to stop the process.
5
The “Parameter download
successfully completed” is
displayed and the control panel
returns to PAR BACKUP menu.
Select EXIT to return to the main
menu.
0 A
0 %
0 mA0.
0.
0.
0.0HzOFF
MENU
SP
FAULT LOGGER
CLOCK SET
PAR BACKUP
EXIT ENTER
OFF MAIN MENU 5
UPLOAD TO PANEL
BACKUP INFO
DOWNLOAD FULL SET
DOWNLOAD APPLICATION
PAR BACKUP 4
EXIT
SEL
OFF
ABORT
51%
PAR BACKUPOFF
Downloading
parameters
(application)
Parameter download
successfully
completed.
