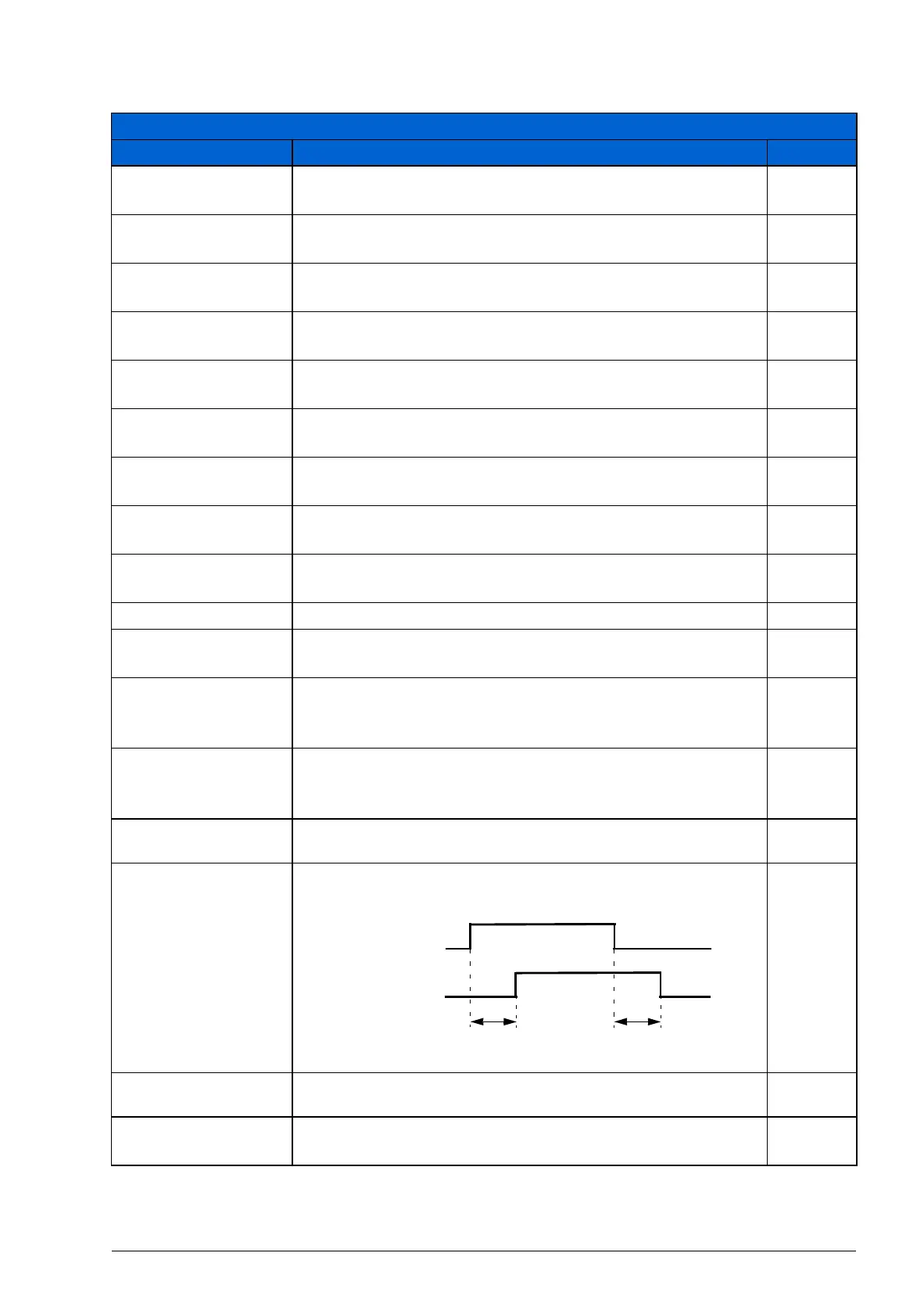

ABB ACS355 - Page 201

Actual signals and parameters 201
TIMED FUNC 3 Timed function 3 is active. See parameter group 36 TIMED
FUNCTIONS.
39
TIMED FUNC 4 Timed function 4 is active. See parameter group 36 TIMED
FUNCTIONS.
40
M.TRIG FAN Cooling fan running time counter is triggered. See
parameter group 29 MAINTENANCE TRIG.
41
M.TRIG REV Revolutions counter is triggered. See parameter group 29
MAINTENANCE TRIG.
42
M.TRIG RUN Run time counter is triggered. See parameter group 29
MAINTENANCE TRIG.
43
M.TRIG MWH MWh counter is triggered. See parameter group 29
MAINTENANCE TRIG.
44
SEQ PROG Relay output control with Sequence programming. See
parameter 8423 ST1 OUT CONTROL.
50
MBRK On/Off control of a mechanical brake. See parameter group
43 MECH BRK CONTROL.
51
JOG ACTIVE Jogging function active. See parameter 1010 JOGGING
SEL.
52
STO STO (Safe torque off) has been triggered. 57
STO(-1) STO (Safe torque off) is inactive and the drive operates
normally.
58
1402 RELAY
OUTPUT 2
See parameter 1401 RELAY OUTPUT 1. Available only if
the MREL-01 relay output extension module is connected to
the drive.
NOT SEL
1403 RELAY
OUTPUT 3
See parameter 1401 RELAY OUTPUT 1. Available only if
the MREL-01 relay output extension module is connected to
the drive.
NOT SEL
1404 RO 1 ON
DELAY
Defines the operation delay for relay output RO 1. 0.0 s
0.0…3600.0 s Delay time. The figure below illustrates the operation (on)
and release (off) delays for relay output RO.
1 = 0.1 s
1405 RO 1 OFF
DELAY
Defines the release delay for relay output RO 1. 0.0 s
0.0…3600.0 s Delay time. See the figure for parameter 1404 RO 1 ON
DELAY.
1 = 0.1 s
All parameters
No. Name/Value Description Def/FbEq
Control event
Relay status
1404 On delay 1405 Off delay
