ABB ACS560 - Process PID setpoint and feedback source selection

Control chain diagrams 497

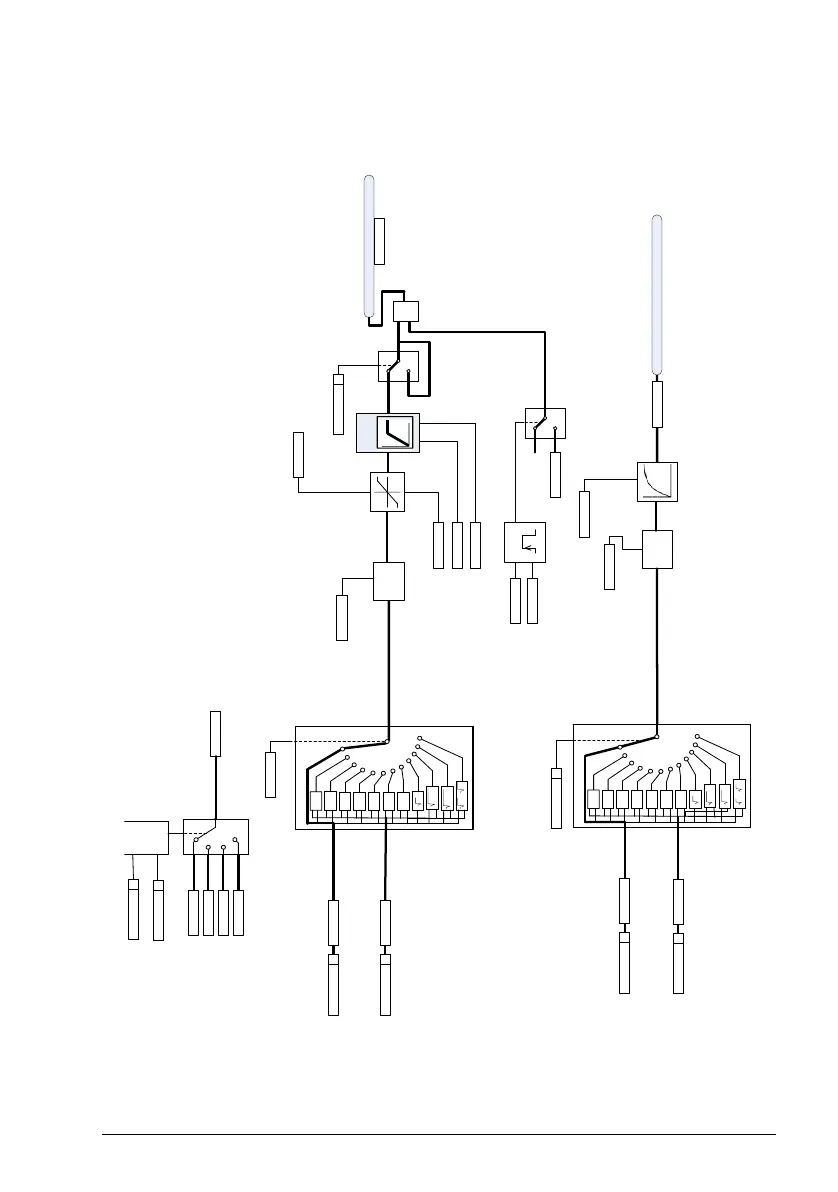

Process PID setpoint and feedback source selection
40.26 Set 1 setpoint min
40.27 Set 1 setpoint max
40.18 Set 1 setpoint function
40.10 Set 1 feedback function
40.11 Set 1 feedback filter time
40.28 Set 1 setpoint increase time
40.29 Set 1 setpoint decrease time
Value
40.16 Set 1 setpoint 1 source
Selection
>
Value
40.17 Set 1 setpoint 2 source
40.21 Set 1 internal setpoint 1 40.22 Set 1 internal setpoint 2 40.23 Set 1 internal setpoint 3
Selection
>
Value
Value
Value Value Value
40.30 Set 1 setpoint freeze enable
Selection
>
Value
40.08 Set 1 feedback 1 source
Selection
>
Value
40.09 Set 1 feedback 2 source
Selection
>
Selection
>
40.02 Process PID feedback actual
Value
Value
Mul
Add
Feedback 1
ADD SUB
MUL
DIV
MIN
MAX
AVE
a
a-b
a+b
a + b
Mul
Add
Setpoint 1
ADD
SUB
MUL
DIV
MIN
MAX
AVE
a
a-b
a+b
40.45 Set 1 sleep boost time
Value
40.46 Set 1 sleep boost step
Value
0
RAMP
40.03 Process PID setpoint actual
Value Value Value
a + b
+
Value
Pulse
Note! Process PID parameter set 2 is also available. See parameter group 41.
Value
40.62 PID internal setpoint actual
Value
40.06 Process PID status word: bit 4 PID sleep mode
40.19 Set 1 internal setpoint sel1
40.20 Set 1 internal setpoint sel2
BIN TO INT SEL
b0
b1
0
Selection
>
Selection
>
OUT
1
2
3
0
Feedback
Scale
40.90 Set 1 feedback multiplier
Value
Setpoint
Scale
40.89 Set 1 setpoint multiplier
Value
40.24 Set 1 internal setpoint 0
Value
