Control macros 149
Jigar macro
The Jigar machine is a machine used in the textile industry. The ABB Jigar macro is
suitable for the Jigar machine and automatically configures the drive parameters
required for Jigar machine applications.
Jigar machine has two main rollers controlled by two separate drive. If one act as
winder and the other act as unwinder and vice versa.
 Jigar machine sequence
The Jigar machine has two operation sequences:
1. The fabric rolls on the first roller and passes it to the coloring section. In the
coloring section, the fabric winds to the second roller.
2. Once the second roller fills, the process reverses and the second roller starts
unwinding and the first roller winds the fabric.
To enable the macro, navigate to

• Main menu Connection macro  Jigar
or
Main menu
Complete parameter list parameter 96.04 Macro select 
[30] Jigar.

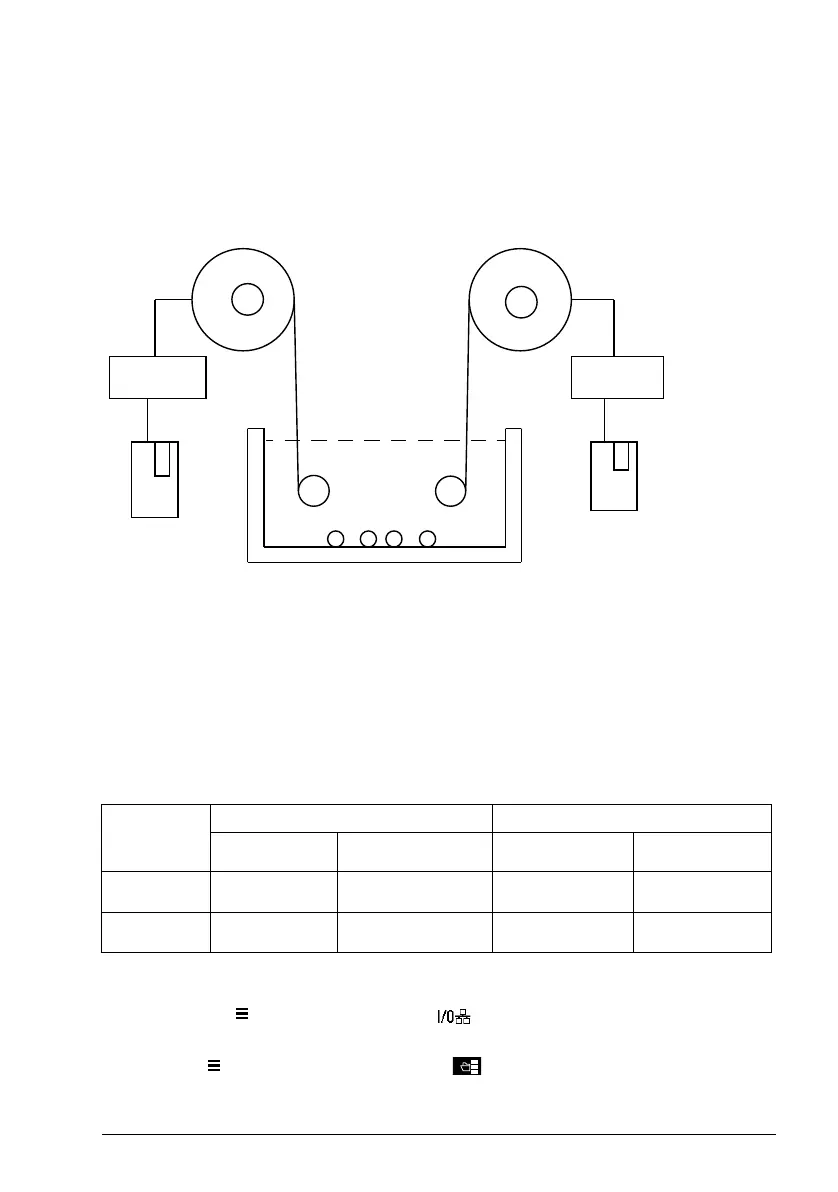

Machine sequence 1 Machine sequence 2
Drive 1 (Winder) Drive 2 (Unwinder) Drive 2 (Winder) Drive 1 (Unwinder)
Unwinding
Speed / Forward
direction
Speed / Forward
direction
Winding
Torque mode -
Reverse direction
Tor qu e mode -
Reverse direction
Roller 1
Roller 2
Motor 2
Motor 1
Drive 1
Drive 2
Dye liquor pool
Heating tube
Dye liquor
