84 Program features
over the sensor. The temperature measurement function calculates the resistance of
the sensor and generates an indication if overtemperature is detected.
Leave the sensor end of the cable shield unconnected.
For wiring of the sensor, refer to the drive hardware manual
The figure below shows typical PTC sensor resistance value as a function of
temperature.
In R0...R2 frames, when an analog output is not available or used for other purposes,
it is possible to setup a voltage divider connection that uses the internal resistance of
a digital input.

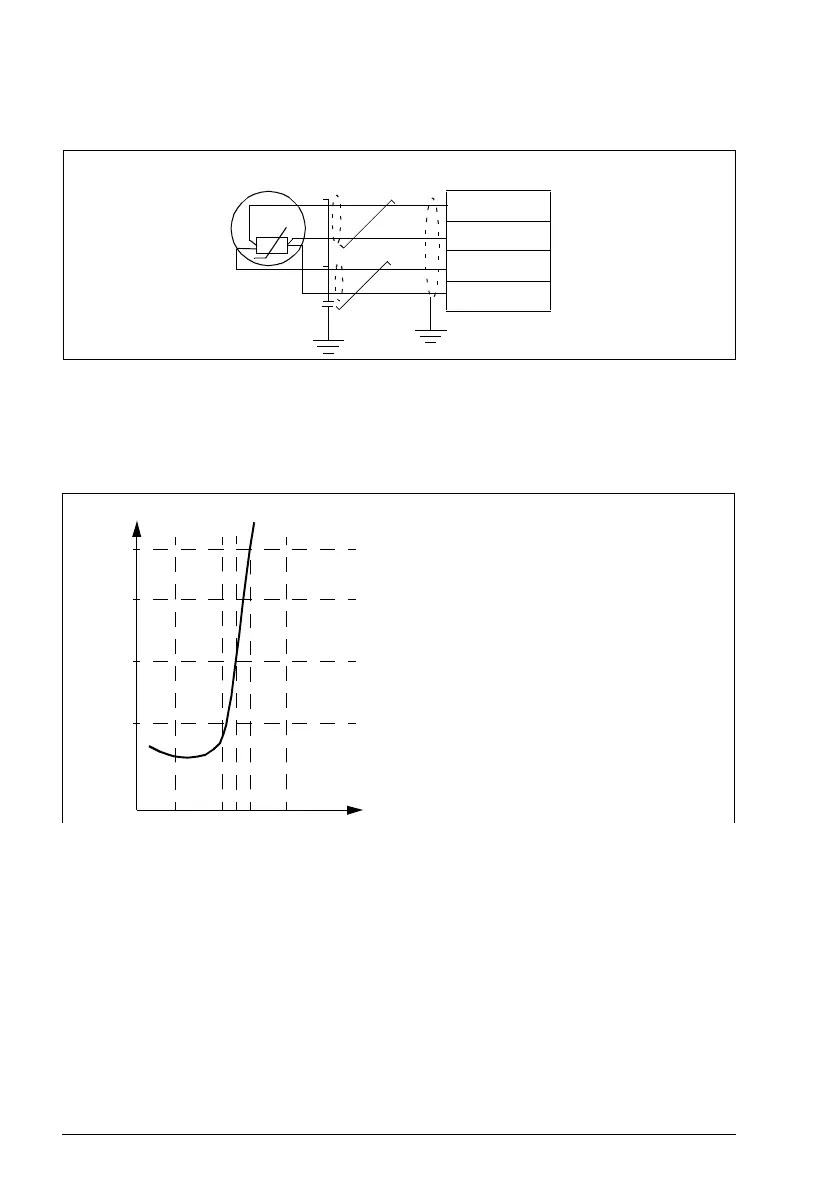

1...3 PTC sensors can be connected in series with 10 V reference and digital and
analog inputs. The temperature measurement function reads the voltage over the
Control unit
AI1
GND
AO
GND
Motor
One sensor
