ABB ACS880-604

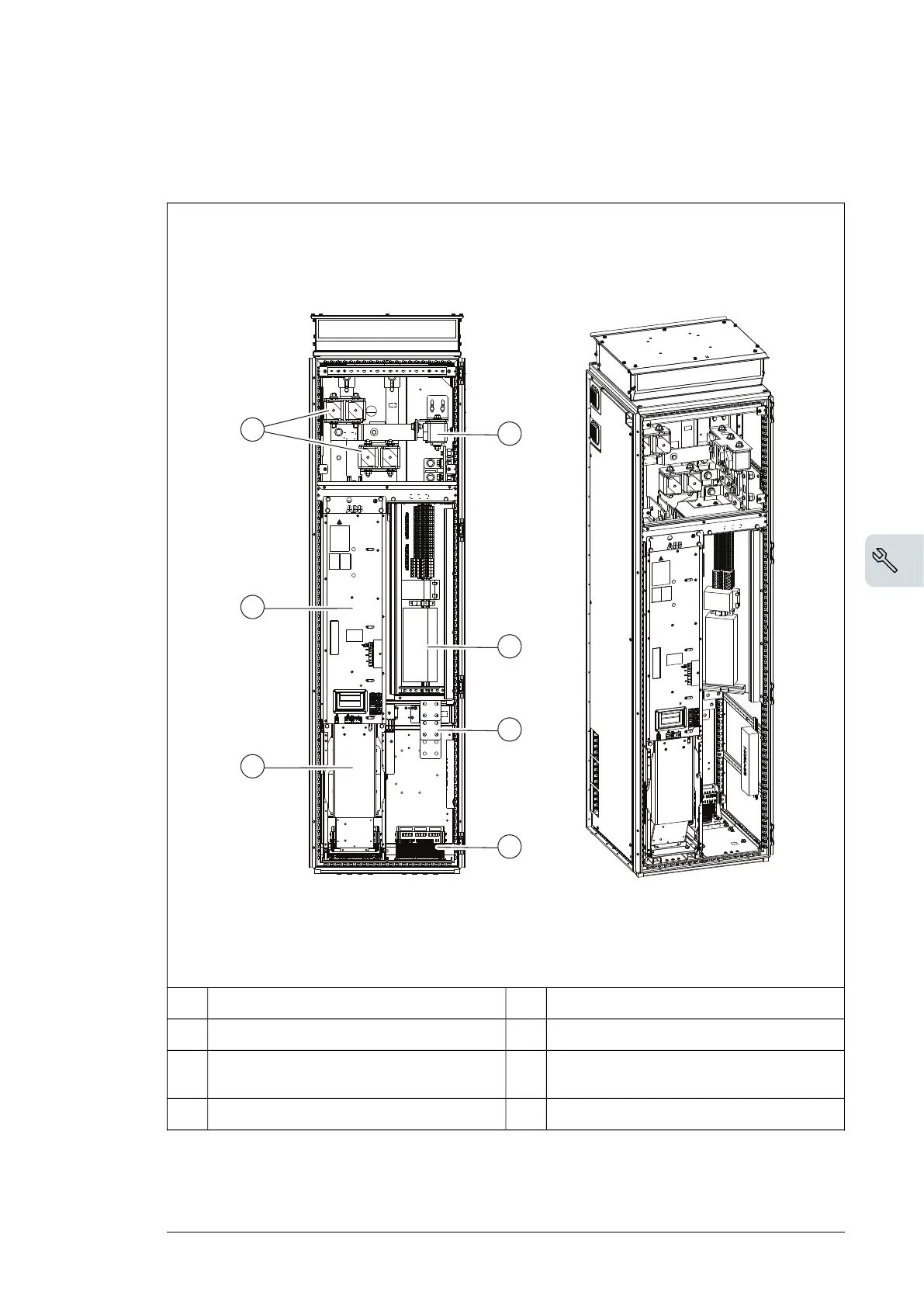

One R8i module in a 600 mm wide Rittal VX25 enclosure
without DC switch/disconnector
4
2
1
3
6
7
5
BCU-02 brake control unit5DC fuses1
Terminals for brake resistor cable connection6Brake chopper module2
Cable entries for brake resistor and control
cables
7Brake chopper module cooling fan3
Brake resistor fuses4
Cabinet construction 31
