ABB ACS880-604

￭ Derating

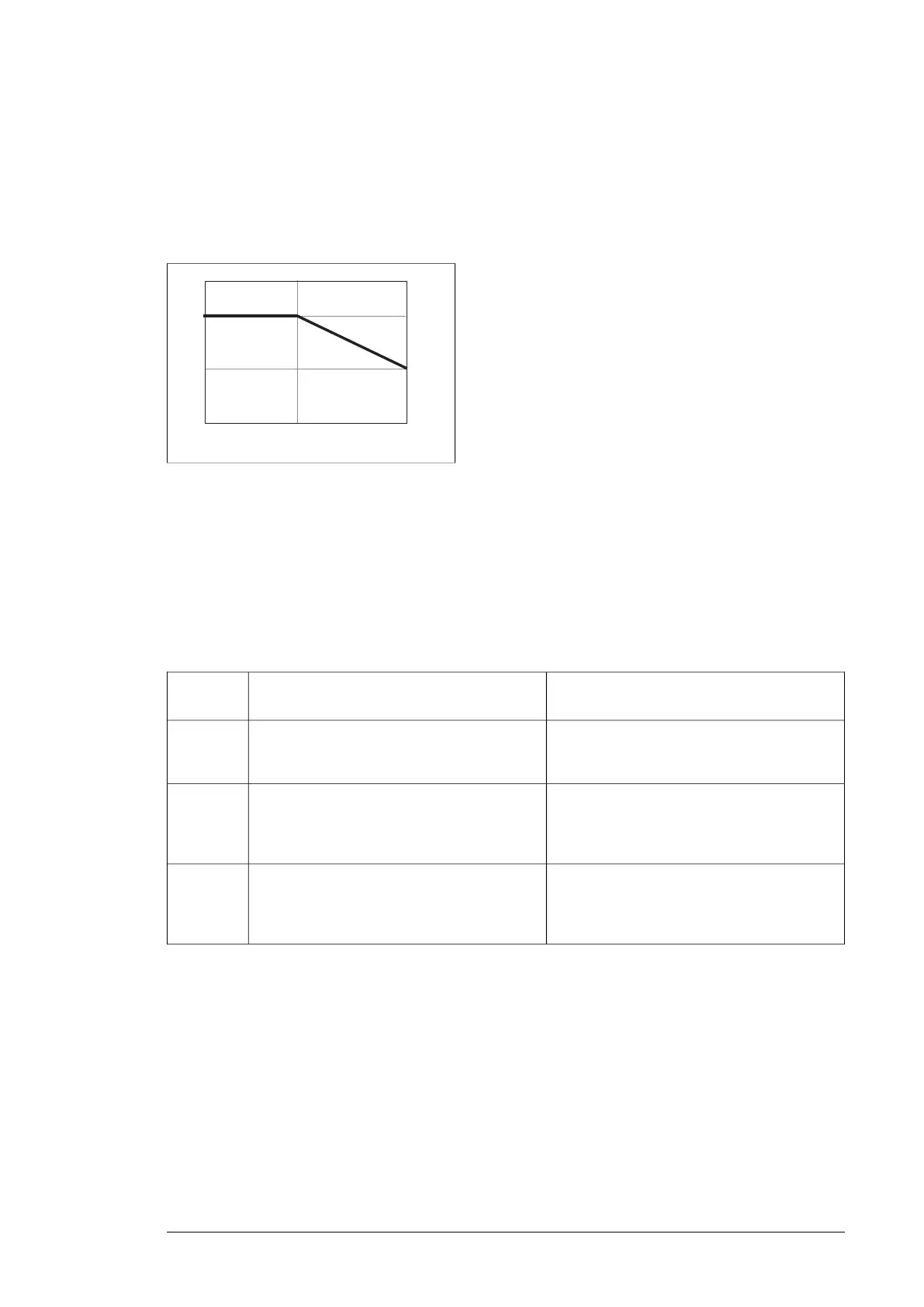

Temperature derating
In the temperature range +40…50 °C (+104…122 °F), the rated output current is derated
by 1% for every added 1 °C (1.8 °F). The output current can be calculated by multiplying
the current given in the rating table by the derating factor (k):


T
1.00
0.90
+40 °C
+104 °F
+50 °C
+122 °F
k
0.80
Altitude derating
At altitudes from 1000 to 2000 m (3300 to 6561 ft) above sea level, the continuous output
currents given above must be derated 1% for every 100 m (328 ft). For a more accurate
derating, use the DriveSize PC tool.
Input and output voltages
Typical input and output voltages are listed below.
Output voltage U
2
(0…U
1
3-phase
symmetrical), ie, resistor (AC) connection
Input voltage U
1
(DC)U
N
(V AC)
3 × 0…566 V DC513…566 V DC.400
This is indicated in the type designation label as
typical output voltage level 566 V DC.
This is indicated in the type designation label as
typical input voltage level 566 V DC.
3 × 0…707 V DC513…707 V DC.500
This is indicated in the type designation label as
typical output voltage levels 566 / 679 / 707 V
DC.
This is indicated in the type designation label as
typical input voltage levels 566 / 679 / 707 V DC.
3 × 0…976 V DC (UL, CSA: 848 V DC)709…976 V DC (UL, CSA: 848 V DC).690
This is indicated in the type designation label as
typical output voltage levels 742 / 849 / 976 (849
UL, CSA) V DC.
This is indicated in the type designation label as
typical input voltage levels 742 / 849 / 976 (849
UL, CSA) V DC.
Technical data 99
