Control panel
The control panel is not included with the module but must be ordered separately. One
control panel is required for the commissioning of an ACS880 drive system, even if the Drive
composer PC tool is used.
The control panel can be flush mounted on the cabinet door with the help of a door mounting
kit. For more information on the control panel, see ACX-AP-x assistant control panels user’s
manual (3AUA0000085685 [English]).

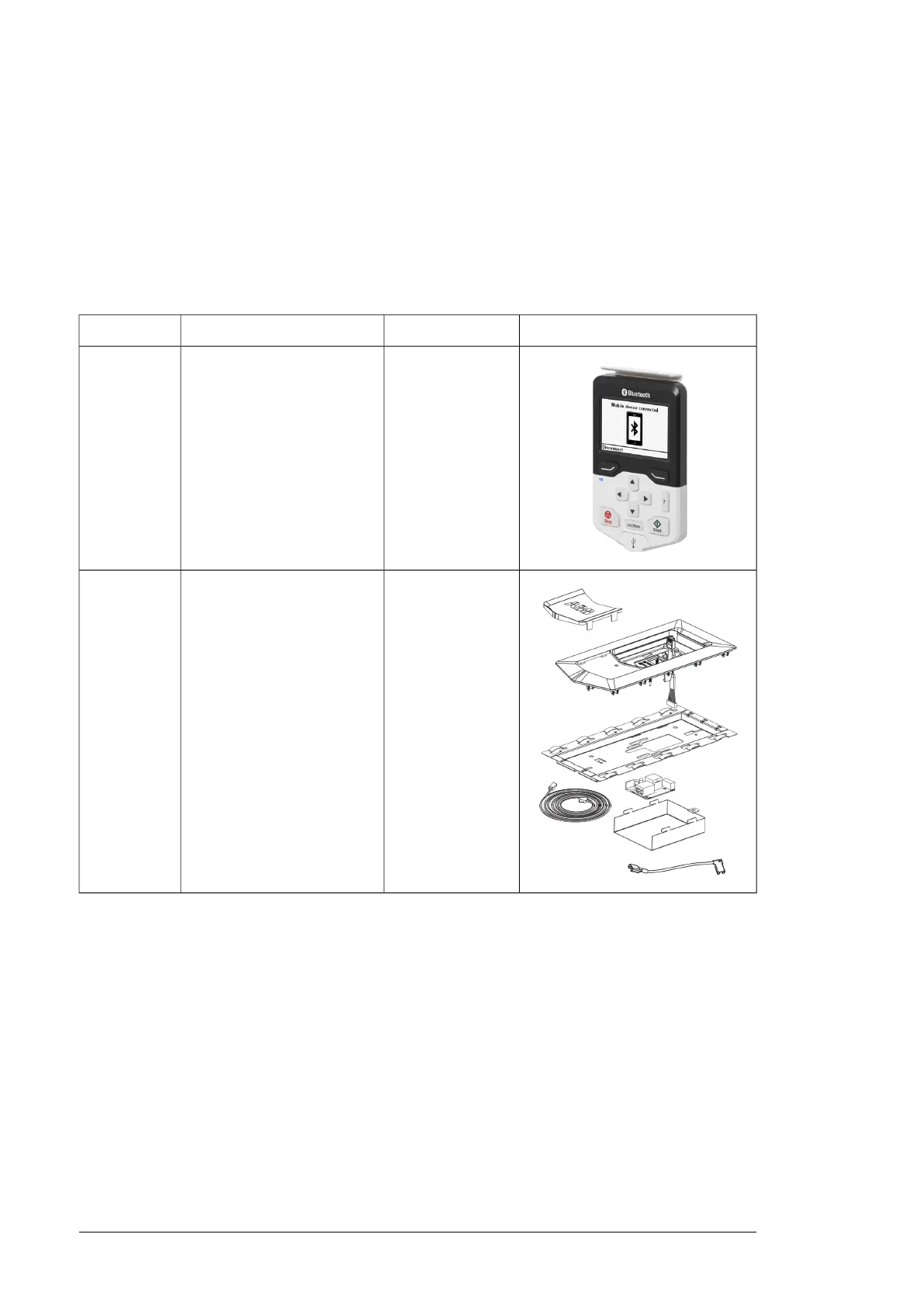

IllustrationOrdering codeDescriptionType
3AXD50000025965Control panel with BluetoothACS-AP-W
3AUA0000108878Door mounting kit (IP55)DPMP-01
The door mounting kit contains:
• front cover
• flat cable (between DDPI-01 board and the panel)
• DDPI-01 board, cover and M4×8 combi screw for the cover
• EMC shield
• control panel mounting platform
• grounding wire
• Ethernet cable (3 m).
•
DPMP-01 mounting platform for ACS-AP control panel installation guide
[3AUA0000100140 (English)].
80 Ordering information
