ABB ACS880-604

DC-side components

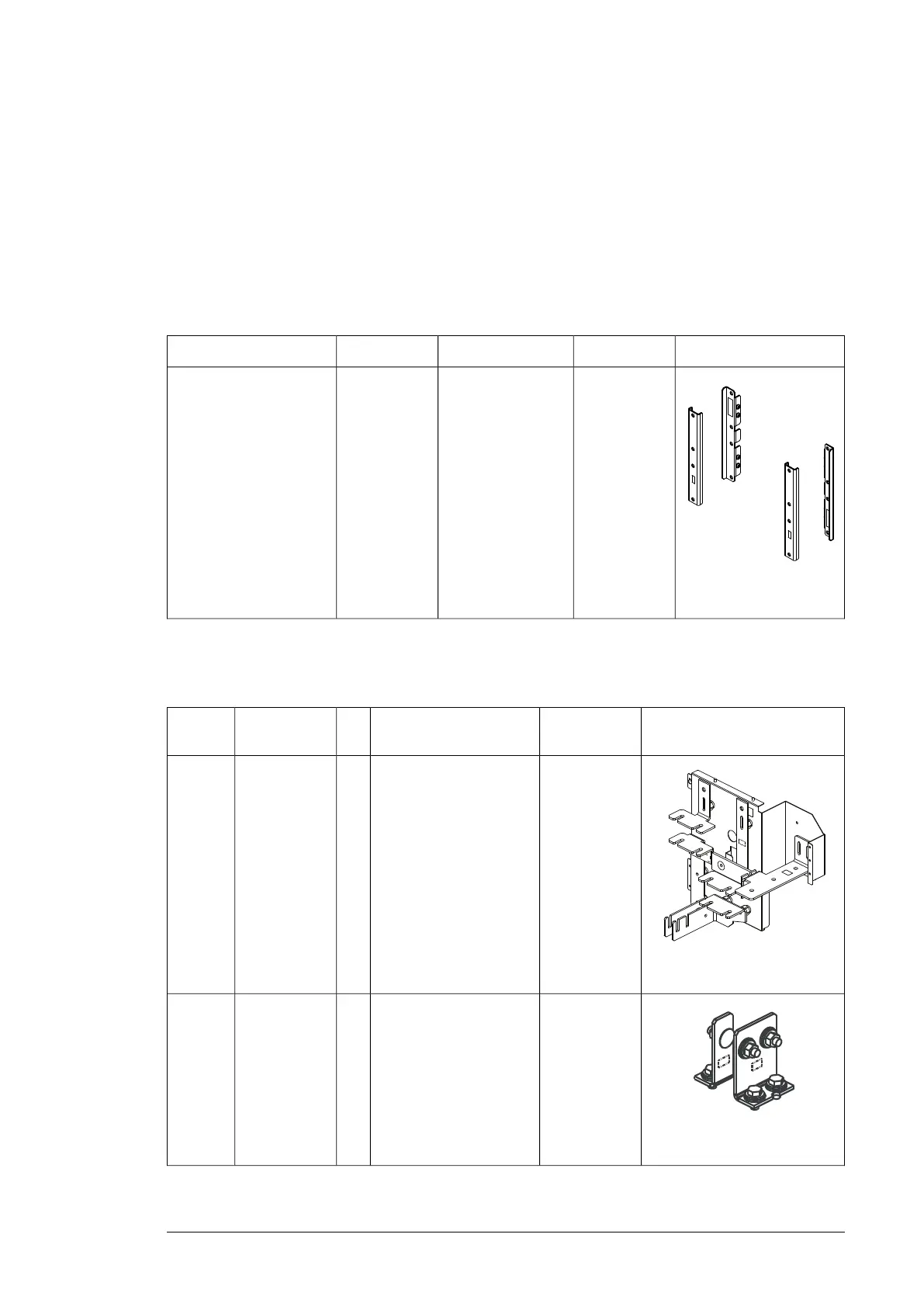

￭ Common DC Flat-PLS assembly
The brackets in this kit act as a mounting base for the busbar supports of the Rittal Flat-PLS
DC bus and ensure its correct placement and alignment inside the cabinet line-up.
Note: The designs presented in this manual for Rittal VX25 enclosures employ the Rittal
Flat-PLS busbar system. Make sure that the current carrying capability of the busbars is
not exceeded at any point of the drive system.
IllustrationKit codeOrdering codeQtyUsed with …
A-468-X-001-
VX
3AXD50000333387
1 kit per cu-
bicle
400/600/800 mm VX25
enclosure
Instruction code:
3AXD50000333639
￭ DC connection flanges and busbars
These DC busbars provide connection from the common DC bus to the module DC input.
IllustrationKit codeOrdering codeQtyEnclosureFrame
size
A-6-8-262-VX3AXD500004890841600 mmR8i
Instruction code:
3AXD50000493555


A-6-8-2633AXD500000168961600 mmR8i
Instruction code:
3AXD50000016945
Ordering information 85
