ControlMaster CM10, CM30 and CM50
Universal process controllers,
1
/8,
1
/4 and
1
/2 DIN 6 Basic Level
IM/CM/S–EN Rev. R 29
…Basic / …Loop 1 Control
Mode Turns the Autotune functionality on or off.
When set to On, an Autotune can be started from the Operator level menus – see page 22.
Autotune

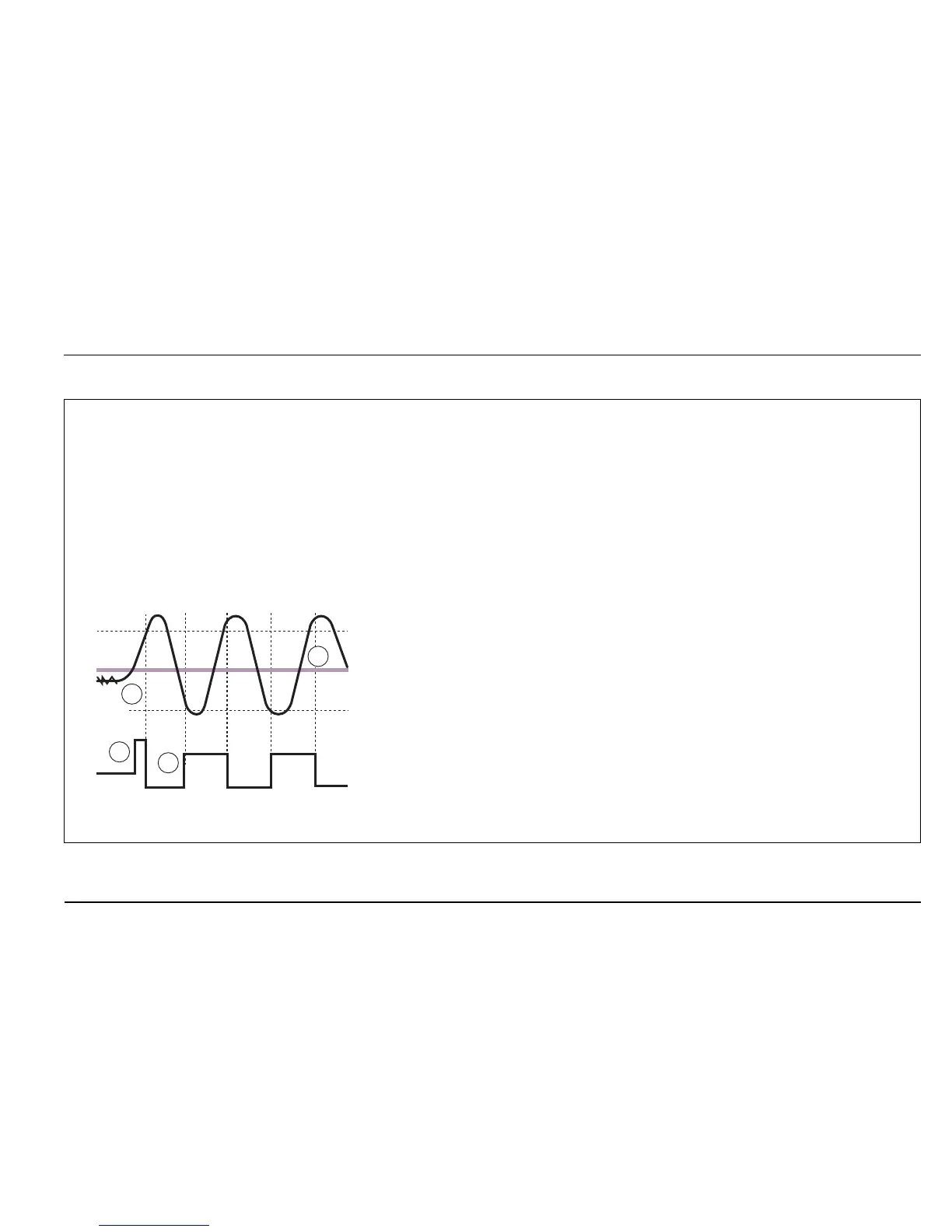

Autotune Operation
Autotune is a user-activated feature that enables automatic setting of the controller PID parameters (see page 30) using an
'at setpoint type' algorithm. Autotune changes the controller output and then monitors the process response to calculate
the optimum PID settings. Autotune uses a relay type function with hysteresis that initiates a controlled oscillation in the
process. New PID parameters are calculated and stored in the controller automatically. Note. To achieve the best results
from Autotune, switch the controller to Manual control mode (see page 5) and adjust the output until the PV is stable (close
to the normal setpoint) before initiating Autotune.
SP
PV
1
Set the first step value and dynamics required. For best results, select the largest initial
output step size that can be tolerated by the process.
2
Autotune
is enabled only if the control type is
PID
.
3
Start
Autotune
from the
Operator
menu.
4
Monitors a noise
A
and calculates a hysteresis value.
5
User-defined initial step in the output
B
. When the process exceeds the hysteresis
value the output is stepped down.
6
Adjusts output amplitude automatically
C
so PV disturbance is kept to minimum
required.
7
When consistent oscillation is established
D
, the Autotune process stops. Optimum
settings are calculated from the process dynamics monitored.
