4 Installation
4.1 Siting and Environmental Requirements

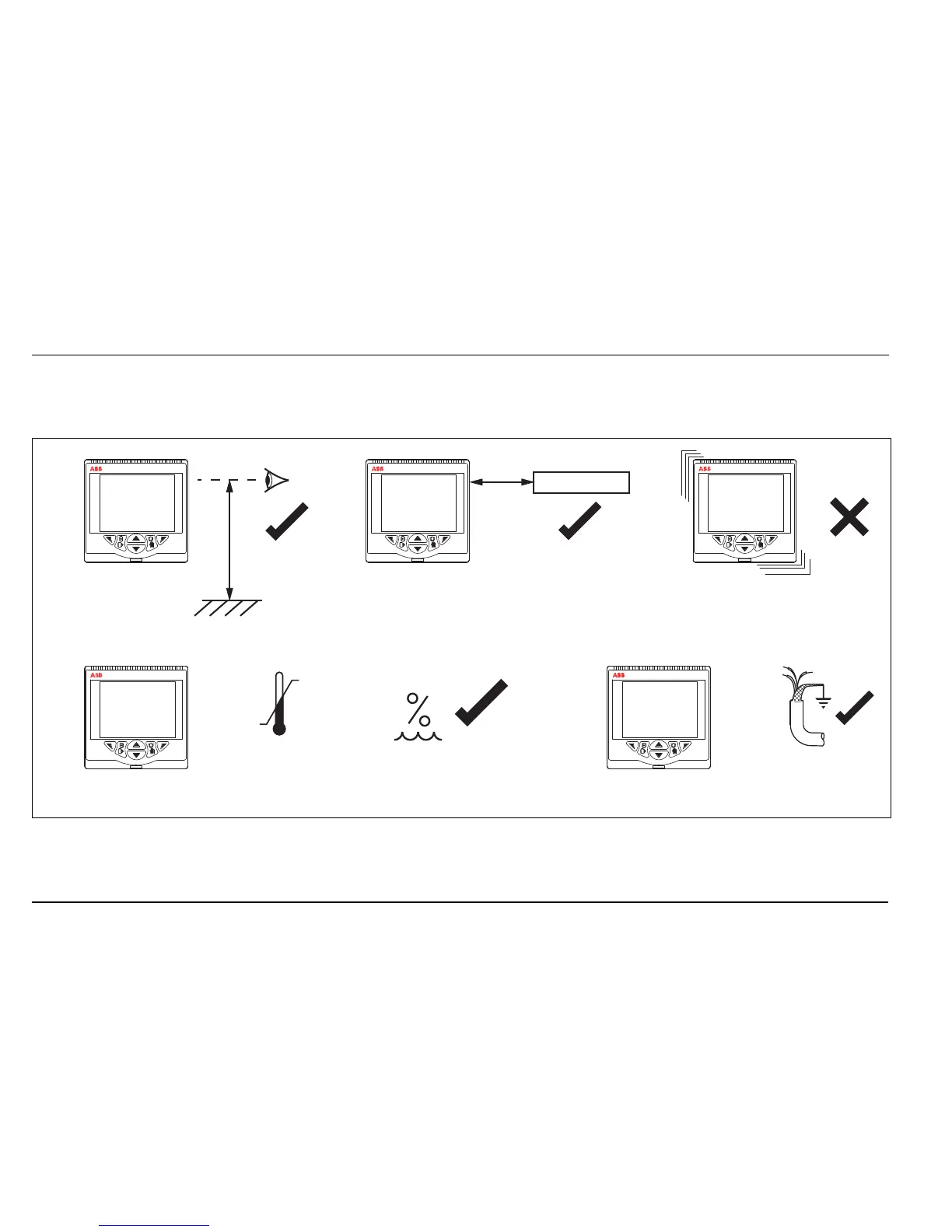

Fig. 4.1 Siting and Environmental Requirements
+
CM30 CM30 CM30
CM30 CM30
At Eye Level
Close to the Sensor
Avoid Vibration
Sensor
Temperature Limits
55°C
(131°F)
Max.
0°C
(32°F)
Min.
Humidity Limits
0 to 95% RH
IP66/NEMA4X (front panel) IP20 (rear)
Use Screened Cable
