ControlMaster CM10, CM30 and CM50
Universal process controllers,
1
/8,
1
/4 and
1
/2 DIN 7 Advanced Level
70 IM/CM/S–EN Rev. R
7.6.3 Set Point Start Condition – Current PV
Selecting Current PV reduces the delay between the end of a program and the beginning of the next program. The process
variable value is used as the program start point and the set point steps up to the process variable value. This has the effect of
changing the overall segment time and maintains a constant ramp rate.

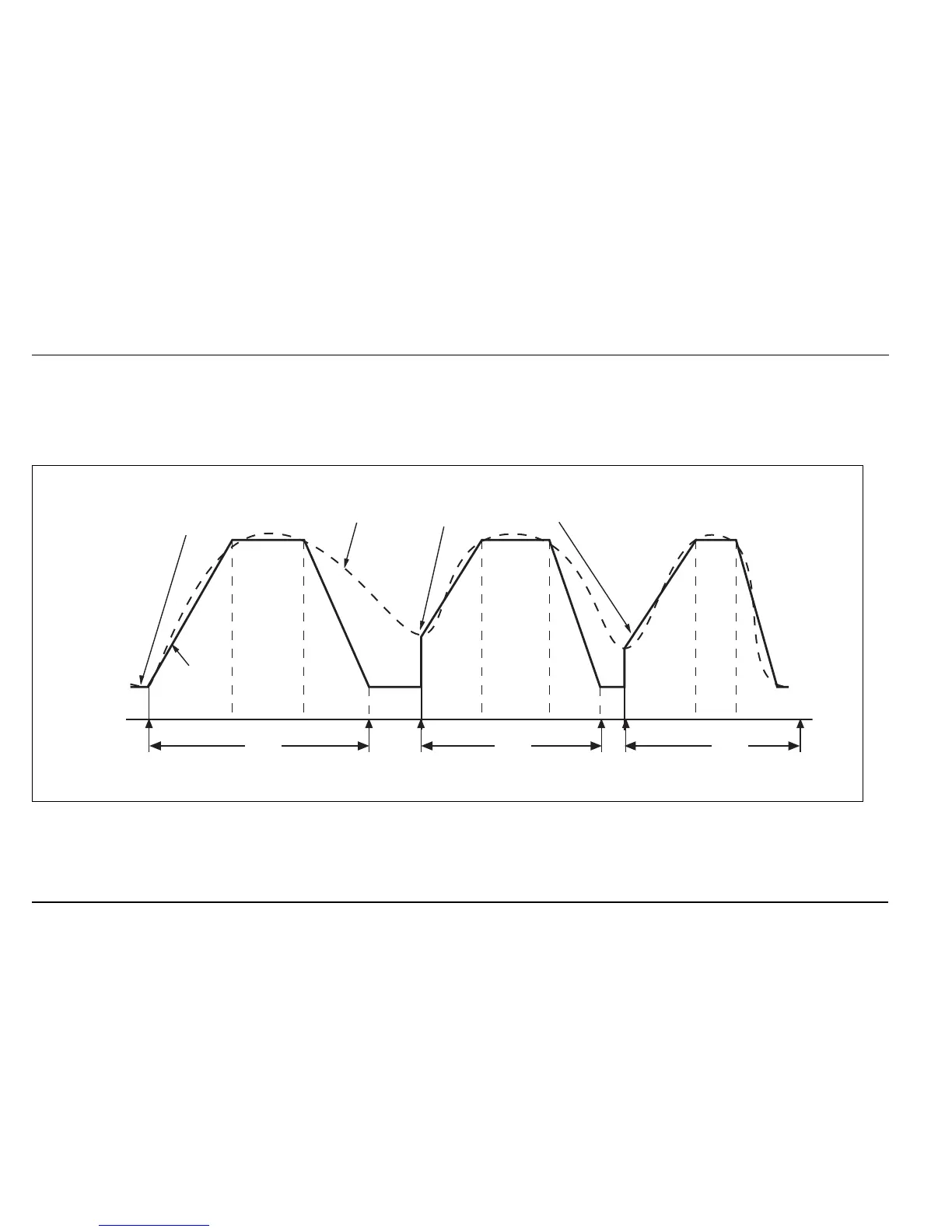

Fig. 7.3 Current PV
Process
variable
Current process variable
inserted as program start level
Current process
variable inserted as
program start level
Program
status
Seg. 1
Seg. 2
Seg. 3
Seg. 1
Seg. 2
Seg. 3
Seg. 1
Seg.
2
Seg. 3
Run
Run
Run
Start Start
Start
Stop
Stop
Stop
