ControlMaster CM10, CM30 and CM50
Universal process controllers,
1
/8,
1
/4 and
1
/2 DIN 4 Installation
IM/CM/S–EN Rev. R 11
4.3 Mounting
ControlMaster is designed for panel mounting. For NEMA4X
protection, a panel thickness of 2.5 mm (0.1 in.) is required.
To panel-mount the controller:
1. Cut a hole of the correct size for the controller in the
panel – see Section 4.2, page 9 for dimensions.
2. Insert the controller into the panel cut-out.
Referring to Fig. 4.4:
3. Position the upper panel clamp A at the top front of
the case against the panel.
4. Locate the panel clamp anchor B in slot C.
5. Tighten the panel clamp anchor screw D until panel
clamp A is secured against the panel.
6. Repeat steps 3 to 5 to fit the lower panel clamp E
and panel clamp anchor F.
Caution. Do not overtighten the screw.

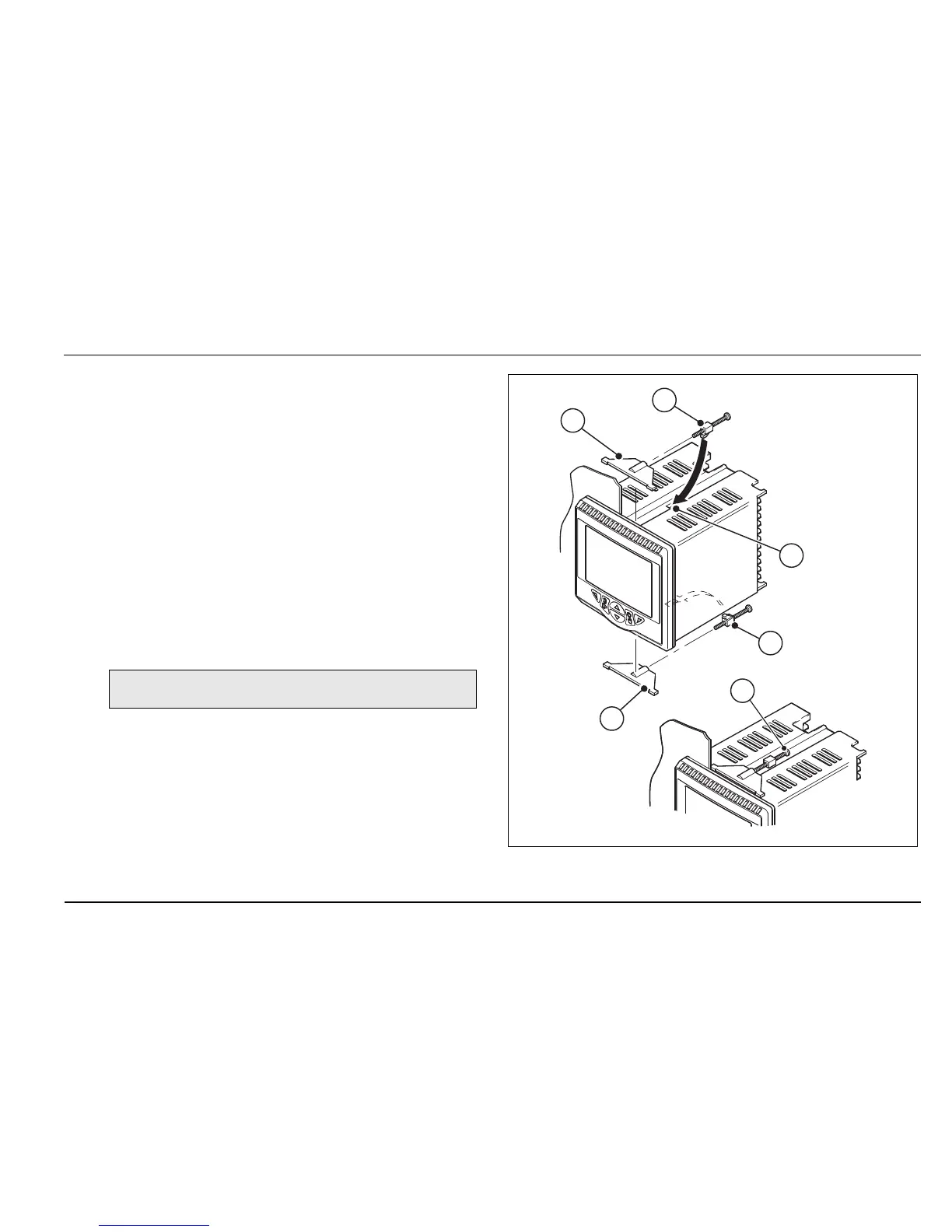

Fig. 4.4 Mounting Details
