ControlMaster CM10, CM30 and CM50
Universal process controllers,
1
/8,
1
/4 and
1
/2 DIN 4 Installation
IM/CM/S–EN Rev. R 13
4.4.2 Resetting Jumper Links
1. The links associated with the relay outputs are shown
in Fig. 4.6.
2. If necessary, move the link to select the relay action
required (N/O or N/C).
Note. The factory-set default for all jumper links is N/O.

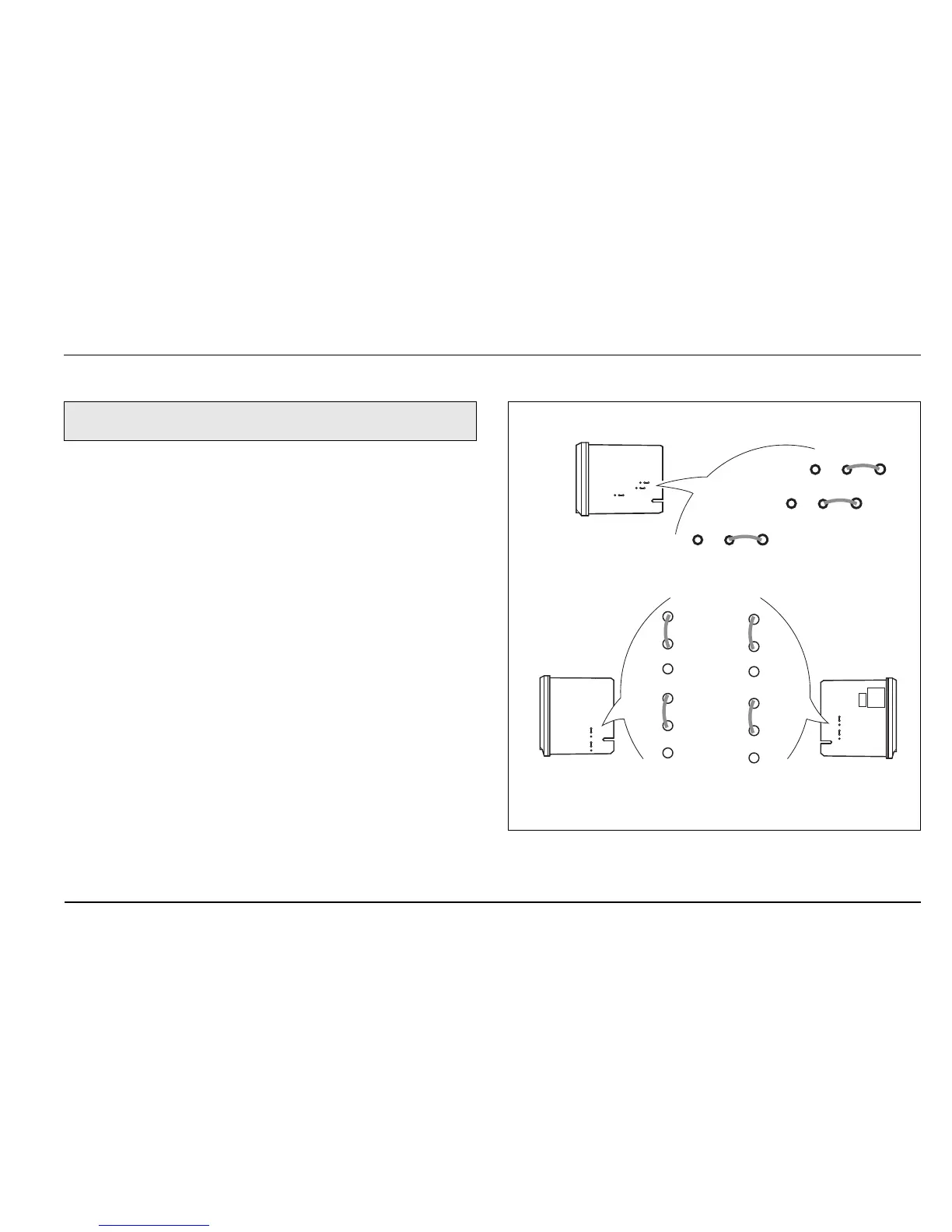

Fig. 4.6 Jumper Links for Relay Outputs
N/C N/O
N/C N/O
N/C N/O
LK1
LK2
LK3
N/O
N/O
N/C
N/C
LK1
LK2
N/O
N/O
N/C
N/C
LK2
LK1
CM10 and CM30
Option Board 1 / 1a
CM50 Option
Board 1
CM50 Standard
Board 1
LK1 = Relay O/P 3
LK2 = Relay O/P 4
LK1 = Relay O/P 1
LK2 = Relay O/P 2
LK1 = Relay O/P 2
LK2 = Relay O/P 3
LK3 = Relay O/P 4
