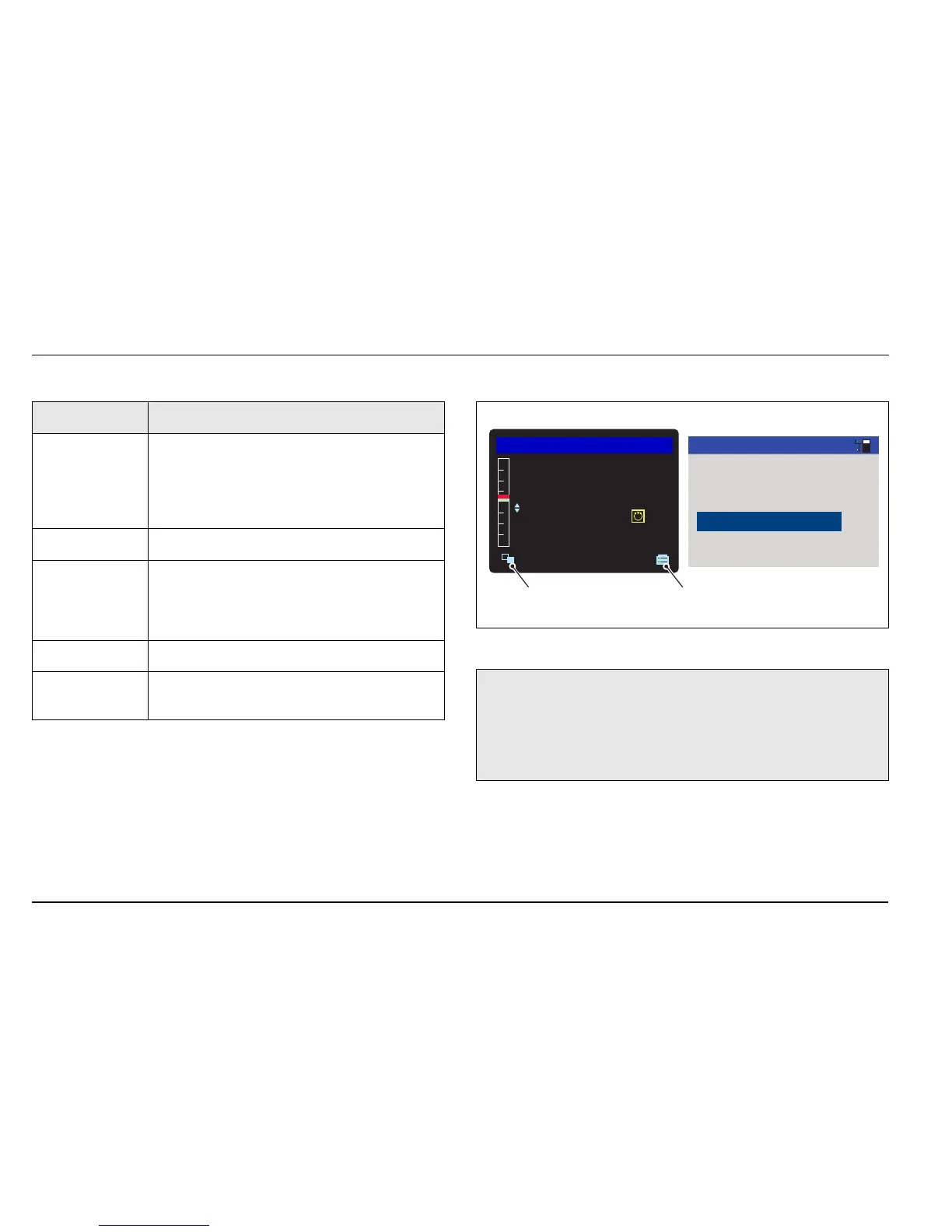

ControlMaster CM10, CM30 and CM50
Universal process controllers,
1
/8,
1
/4 and
1
/2 DIN 5 Operator Level Menus
26 IM/CM/S–EN Rev. R
5.4 Access Level
Level Access
Logout Displayed after Basic or Advanced levels are
accessed. Logs the user out of Basic or
Advanced level. If passwords are set, a password
must be entered to access these levels again
after selecting Logout.
Read Only Enables all parameter settings to be viewed
Basic Enables access to the Basic setup level and
adjustment of PID (see page 30) parameters,
autotuning configuration and adjustment of
alarm trip points.
Advanced Enables configuration access to all parameters.
Service Reserved for use by authorized service
personnel.
Table 5.2 Access Levels
Fig. 5.3 Access Level
Note. A 5-minute time-out period enables a user to return
to the Operator page and re-access the previous menu
(displayed at exit) without re-entering the password. For
periods over 5-minutes (or if Logout is selected), a
password must be re-entered to access protected levels.
ControlMaster
PV
SP
27.589
12.257
0.0
OP
deg C
%
Access Level
Back
Select
Advanced
Logout
Basic
Service
Read Only
Selects
Enter Config. Mode
Selects
Access Level Icon
To v i e w Access Level
