ControlMaster CM10, CM30 and CM50
Universal process controllers,
1
/8,
1
/4 and
1
/2 DIN 3 Displays, Icons and Keys
IM/CM/S–EN Rev. R 7

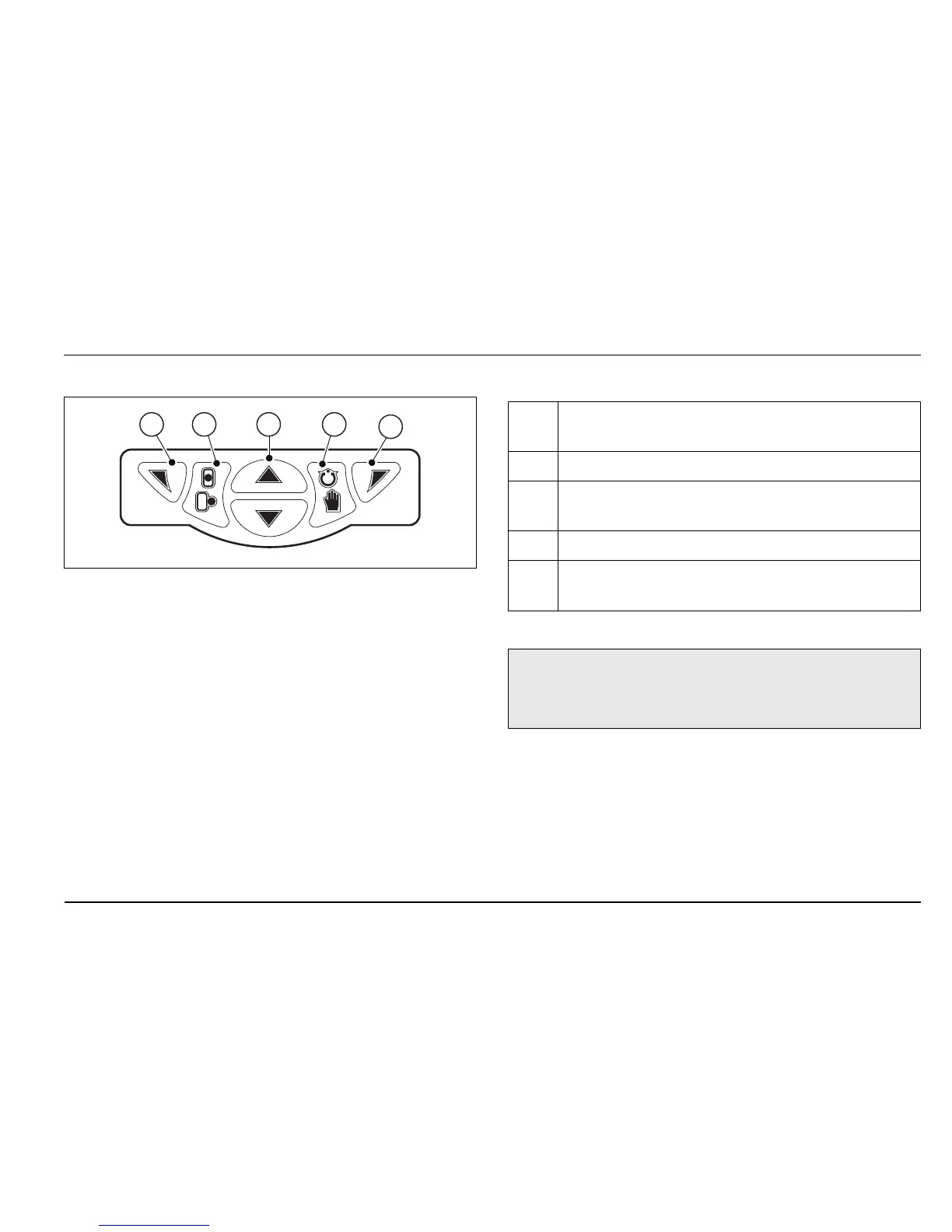

The ControlMaster CM30 and CM50 front panel keys are shown in Fig. 3.3.
Fig. 3.3 ControlMaster CM30 / CM50 Front Panel Keys
B D
E
A
C
A
Navigation (left) / Operator Level access key – see
page 22.
B Local / Remote setpoint mode selection key.
C
Up / Down keys – navigate up / down menus and
increase / decrease displayed values.
D Auto/Manual control mode selection key.
E
Navigation key (right) / programmable Soft Key –
see page 40.
Table 3.2 CM30 / CM50 Front Panel Key Functions
Note. When a Soft Key option is assigned to key E, the
Advanced Level (see page 36) must be accessed using
the Operator Level access key A.
