ABB ControlMaster CM15 User Manual

ControlMaster CM15 and CMF160
Universal process indicator
1
/8 DIN 4 Installation
18 IM/CM/I–EN Rev. P
4.4.2 Resetting Jumper Links – CM15 Indicator
1. The links associated with the relay outputs are shown
in Fig. 4.11.
2. If necessary, move the link to select the relay action
required (N/O or N/C).
Note. The factory-set default for all jumper links is N/O.

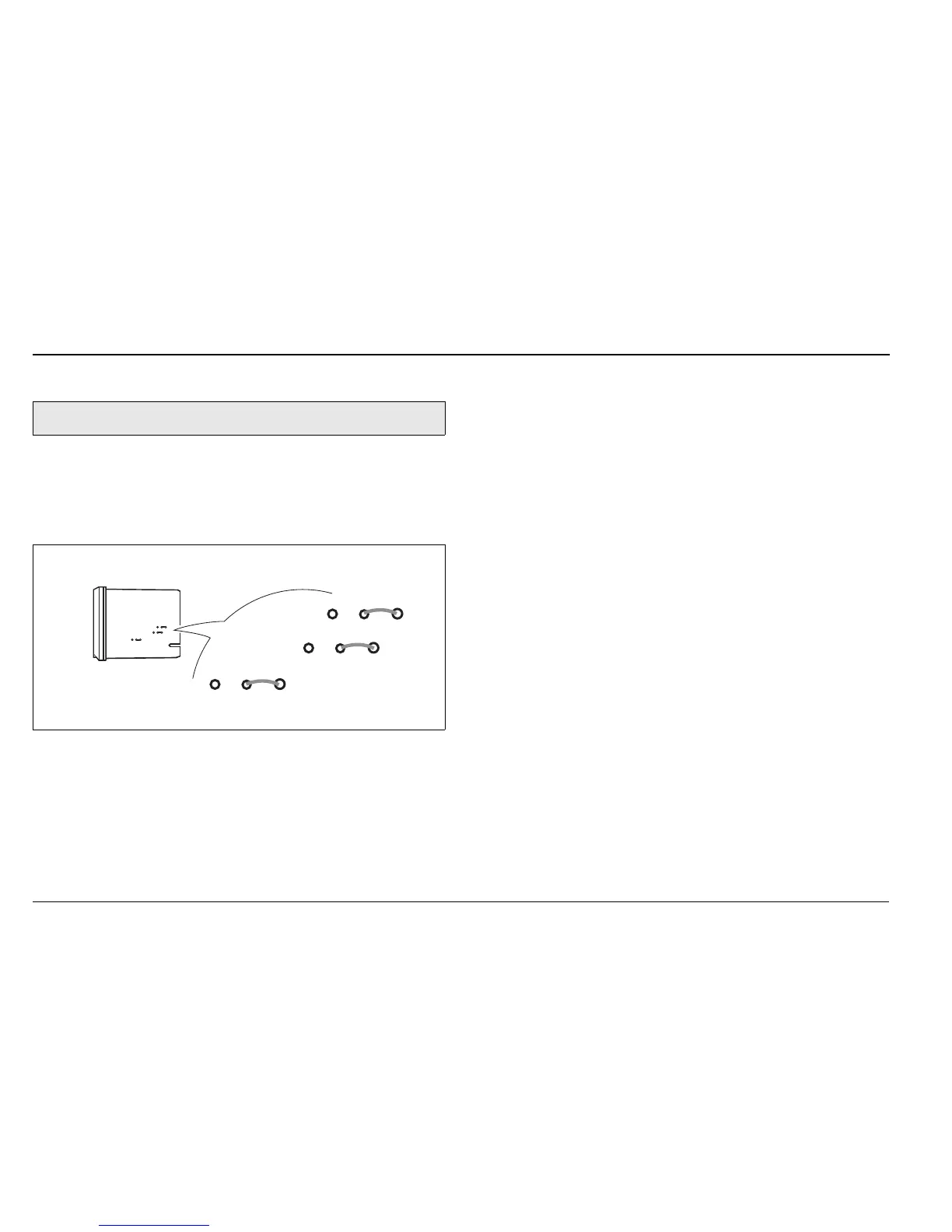

Fig. 4.11 Jumper Links for Relay Outputs – CM15 Indicator
N/C N/O
N/C N/O
N/C N/O
LK1
LK2
LK3
CM15 Option Board
1 / 1a
LK1 = Relay O/P 2
LK2 = Relay O/P 3
LK3 = Relay O/P 4
