ABB ControlMaster CM15 User Manual

ControlMaster CM15 and CMF160
Universal process indicator
1
/8 DIN 5 Operator Level Menus
30 IM/CM/I–EN Rev. P
5.1 Diagnostic Status Bar

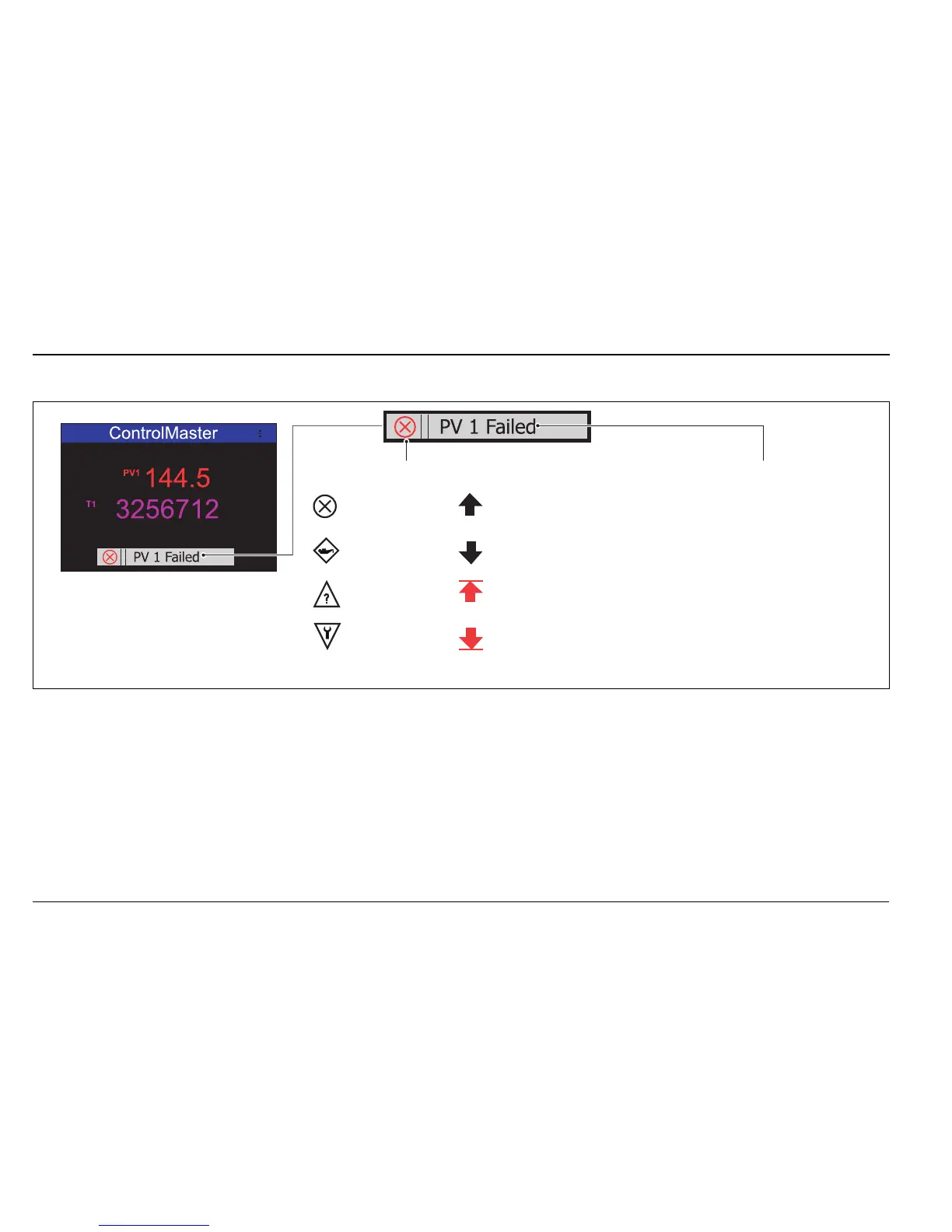

Fig. 5.1 ControlMaster Diagnostic Status Bar
Description of diagnostic or alarm tag.
The highest priority diagnostic or alarm
is displayed. Other active diagnostic /
alarm states can be viewed on the
Diagnostic View – see page 31.
NAMUR (NE107) Status Icon
Failure High Process Alarm
Maintenance Low Process Alarm
Out of Spec High Latch Alarm
Check Function Low Latch Alarm
