ABB ControlMaster CM15 User Manual

ControlMaster CM15 and CMF160
Universal process indicator
1
/8 DIN 4 Installation
IM/CM/I–EN Rev. P 25
4.5.4 Analog Inputs – CMF160 Indicator

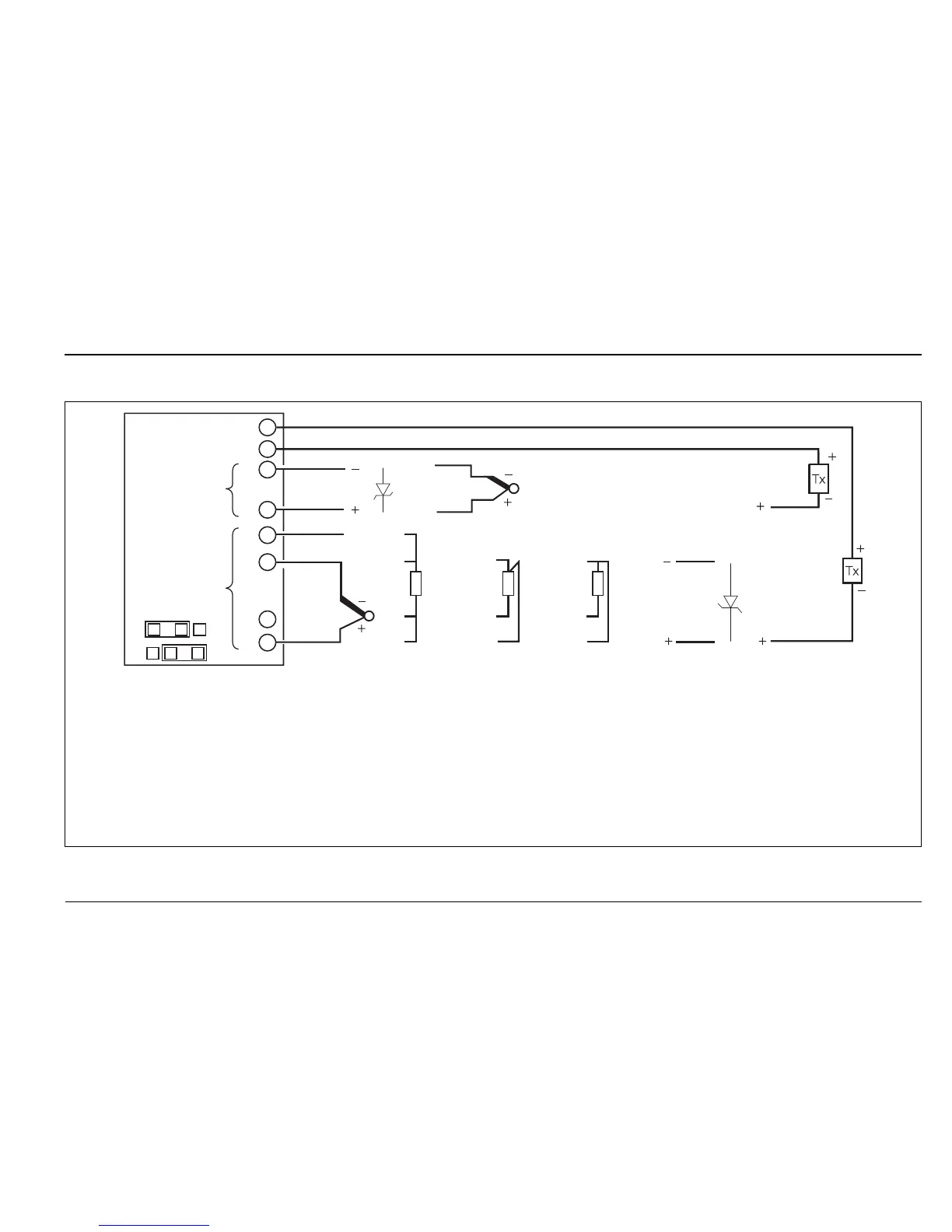

Fig. 4.17 Standard Analog Inputs (1 and 2) – CMF160 Indicator
1
2
3
LK3
4
5
6
A
B
Analog
Input 1
Analog
Input 2
*
**
***
****
Note.
Using internal transmitter power supply.
Analog Input 2 can be used only with THC inputs if Analog Input 1 is also used as a THC input.
To connect the CJ, put LK3 into position B. To disconnect the CJ put LK3 into position A.
For mA input types, to ensure loop continuity when the CMF310 controller (or CMF160 indicator) is switched off,
fit a 2V7 Zener diode.
3-lead RTD: 3 leads must have equal resistance, not exceeding 20  each.
Transmitter PSU
THC**
****
mA, mV, V,
Digital Input
THC
3-lead RTD
2-lead RTD
+ Resistance
4-lead RTD
Milliamps*
Milliamps*
****
mA
mV
V
Digital Input
CJ***
