000906AG

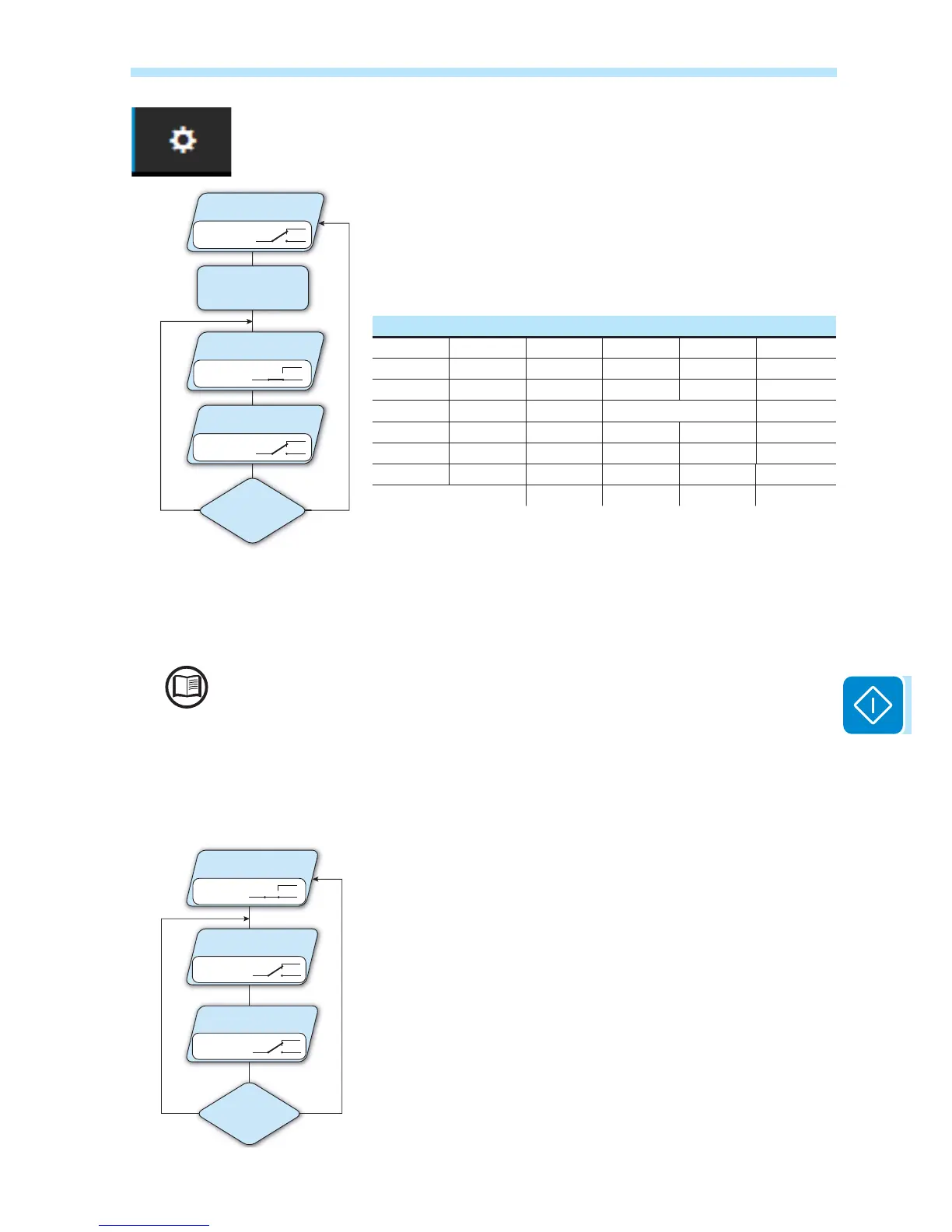

7 - Operation
$ODUP&RQWDFWDODUPFRQ¿JXUDEOHQRODWFK
The relay is activated (status: switched) whenever an error (code Exxx)
or a warning (code Wxxx) is present from those selected from the list in
the dedicated submenu Output Activation Filter of the inverter display.
The contact returns to its resting position when the alarm signal ends, i.e.
before the inverter checks the grid after the alarm state. This is because
grid control state is not an alarm state but a state of normal operation.
Selectable alarms for which the relay is activated
E001 E002 E003 E004 E005 E006
E007 E010 E011 E013 E014 E015
E017 E018 E019 E020 E021 E022
E023 E025 E029 E031 E032 E033
E034 E036 E037 E053 E055 E075
E077 E078 E079 E080 E084 W002
W004 W005 W006 W007 W011 W015
W017 W046 W047 W048
)RU WKH FRQ¿JXUDEOH UHOD\ RSHUDWLQJPRGH³$ODUP &RQI´ WKH IROORZLQJ FRQVLGHUDWLRQV DUH
valid:
If the alarm condition is persistent, the alarm contact cyclically switches from its resting state
to its activated state.
,QWKHSUHVHQFHRI:VLJQDOOLQJ,QSXW89±LQSXWYROWDJHEHORZWKHOLPLWRIRSHUDWLRQ
the alarm contact switches to then reset itself at the end of the alarm signal. This means that
during the reduced input voltage (display message “Waiting Sun”) the alarm contact remains
in its resting position.
In the presence of W003, W004, W005, W006, W007 signalling, the alarm contact switches
to then reset itself at the end of the alarm signal. This means that during the absence of grid
YROWDJHGLVSOD\PHVVDJH³0LVVLQJ*ULG´WKHDODUPFRQWDFWUHPDLQVLQLWVUHVWLQJSRVLWLRQ
$ODUP&RQWDFWFUHSXVFRODU
The relay is activated (status: switched) as soon as the inverter input
voltage exceeds the activation voltage set.
The relay switch to rest position when the input voltage drops below 70%
of the activation voltage set.
This mode is useful for disconnecting any output transformers that could
have unnecessary consumption during the night.
INVERTER RUN
SELECTED
ERROR/WARNING
OCCURENCY
ERROR MESSAGE
t=15s
GRID RECONNECTION
t=based on Country Standard
ERROR/WARNING
STILL
PRESENT
Yes No
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
N.C.
N.O.
Relay State: Switched
Relay State:
Idle
Vin > Vstart
Vin < Vstart
GRID RECONNECTION
t=based on Country Standard
Vin
IS STILL LESS THAN
Vstart
Yes No
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
Relay State: Switched
Relay State:
Idle
