ABB REACT 2 Series - Input Power Reduction Due to the Input Voltage

- 30 -
000889AG
2 - Characteristics

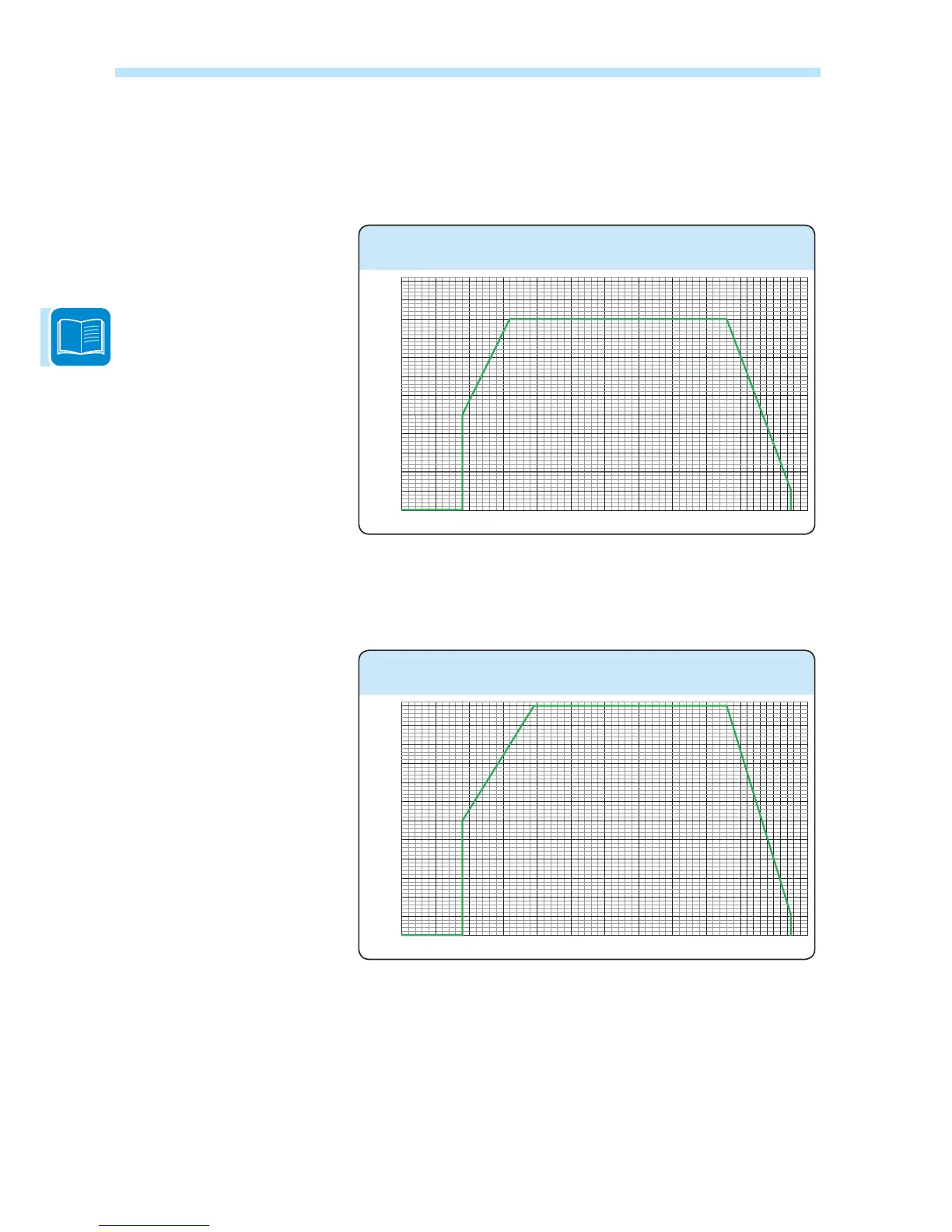

I nput power reduction due to the input voltage
The graphs show the automatic reduction of supplied power when input
voltage values are too high or too low.
Vin [V]
Pin [W]
0
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
0 50 100 150 200 250 300 350 400 450 500 550 600
5500
6000
Pin Vs. Vin
For input voltages below 90Vdc the batteries can only be charged from the grid, while over
90Vdc the batteries can be charged from the photovoltaic system and/or from the grid at the
same time.
Vin [V]
Pin [W]
0
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
0 50 100 150 200 250 300 350 400 450 500 550 600
5500
6000
Pin Vs. Vin
For input voltages below 90Vdc the batteries can only be charged from the grid, while over
90Vdc the batteries can be charged from the photovoltaic system and/or from the grid at the
same time.
REACT2-UNO-3.6-TL
REACT2-UNO-5.0-TL
