ABB REACT 2 Series - Output Power Reduction Due to the Input Voltage

- 31 -
000889AG
2 - Characteristics
O utput power reduction due to the input voltage

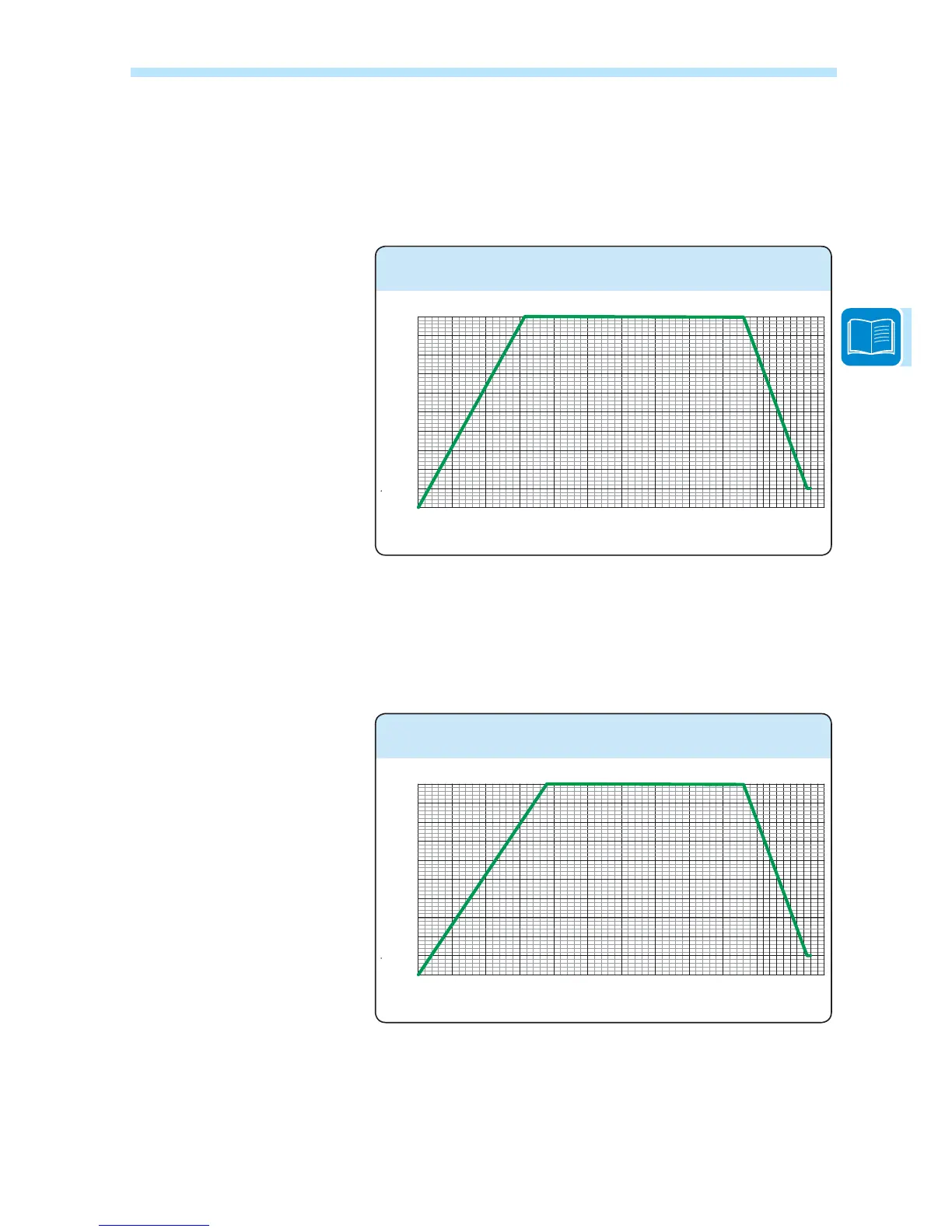

The graphs show the automatic reduction of supplied power when input
voltage values are too high or too low.
Vin [V]
Pout [%]
0
20
30
40
50
60
70
80
90
100
0 50 100 150 200 250 300 350 400 450 500 550 600
10
Pout Vs. Vin
The operating point of REACT2, inside the area of the diagram, depends on the level of
charge of the battery/ies, the PV power available and the setting of the control algorithm.
For input voltages below 90Vdc, the output power of the inverter could be different from zero
should the battery be low.
Vin [V]
Pout [%]
0
20
30
40
50
60
70
80
90
100
0 50 100 150 200 250 300 350 400 450 500 550 600
10
Pout Vs. Vin
The operating point of REACT2, inside the area of the diagram, depends on the level of
charge of the battery/ies, the PV power available and the setting of the control algorithm.
For input voltages below 90Vdc, the output power of the inverter could be different from zero
should the battery be low.
REACT2-UNO-3.6-TL
REACT2-UNO-5.0-TL
