5 - Installation

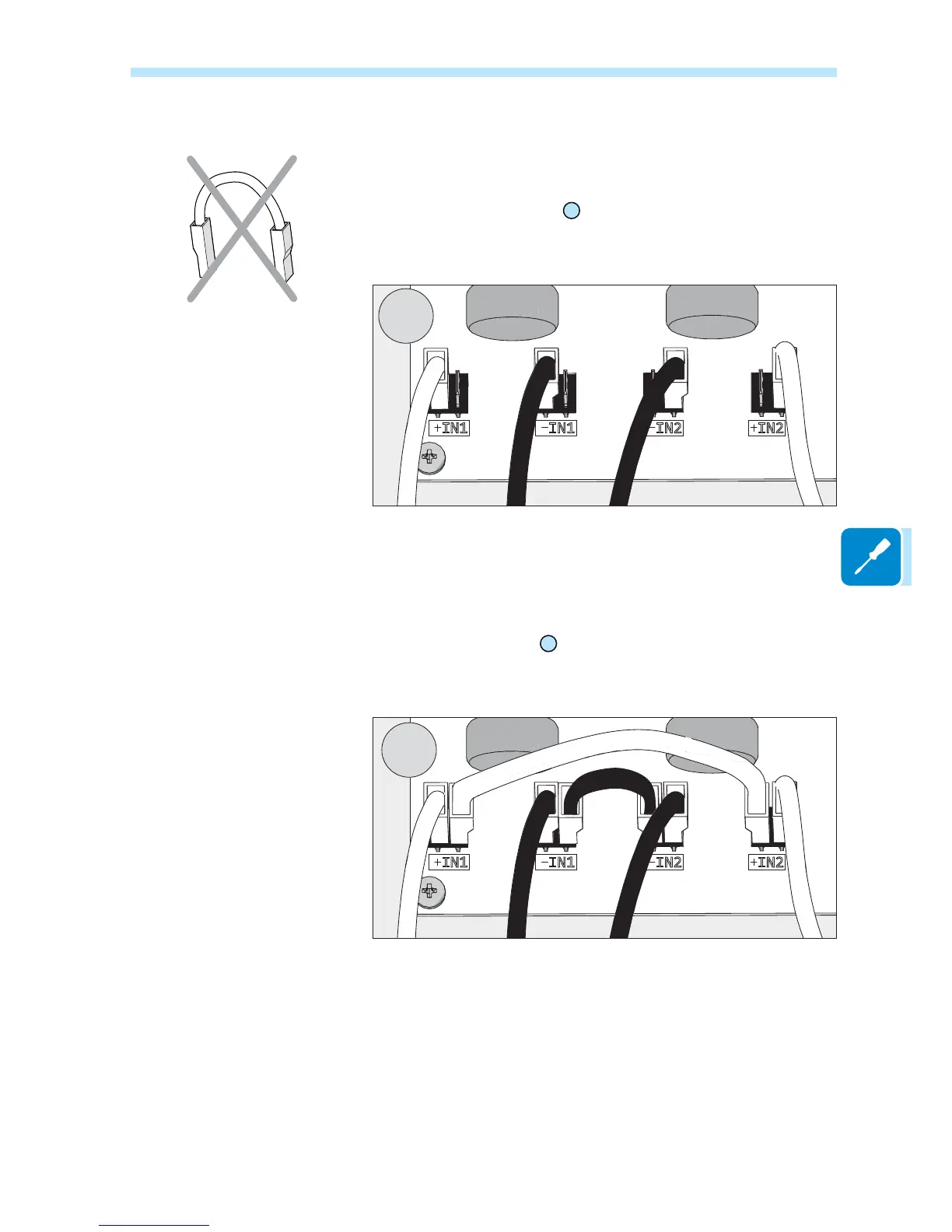

I ndependent channel configuration (default configuration)
7KLVFRQ¿JXUDWLRQXVHVWKHWZRinput channels (MPPT) independently.
This means that the jumper (supplied) between the positive poles of the
DC (IN1 and IN2) connectors
32
must not be installed and that the mode
which must be selected during the guided setup for commissioning the
system is “INDEPENDENT”.
32
IN2
IN2 IN1 IN1
C onfiguration of parallel-connected channels
7KLVFRQ¿JXUDWLRQXVHVWKHWZRinput channels (MPPT) connected in parallel.
This means that the jumper (supplied) between the positive poles of the DC
(IN1 and IN2) connectors
32
must be installed and that the mode which
must be selected during the guided setup for commissioning the system is
“PARALLEL”.
32
IN2
IN2 IN1 IN1
