2 - Characteristics
O perating diagram

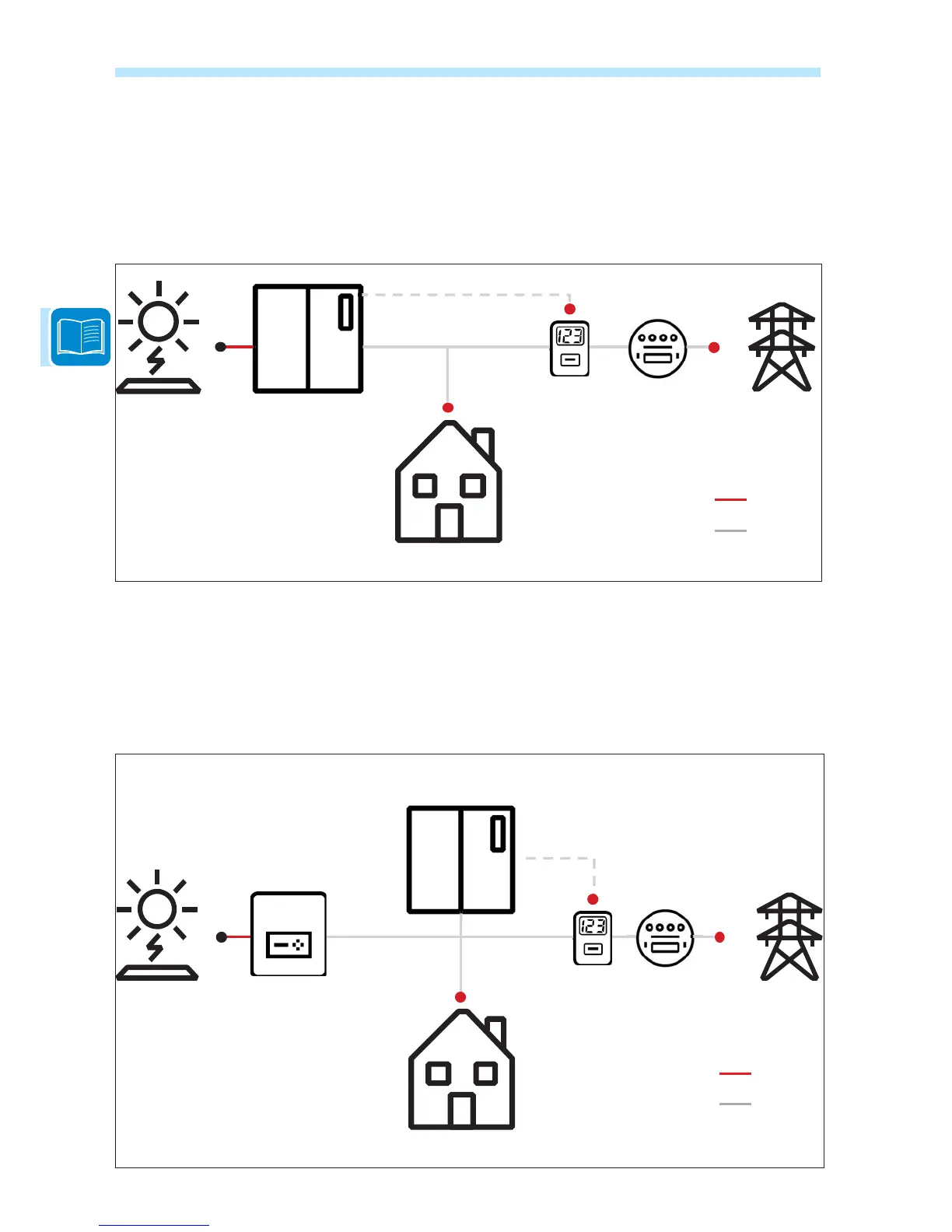

New installation
REACT 2 is perfect for new installation because it is a PV inverter with
an integrated battery allowing simpler installation and best performances
Meter Utility
me t er
Grid
House
RS-485
REACT 2
DC line
AC line
5HWUR¿WH[LVWLQJ39V\VWHP
REACT 2 can be installed together with an existing PV inverter on AC
side of the home grid, functioning as battery manager only
Existing
solar inverter
Meter Utility
me t er
Grid
House
RS-485
REACT 2
DC line
AC line
