ABB REACT 2 Series - Models and Range of Equipment

- 19 -
000887AG
2 - Characteristics
Models and range of equipment

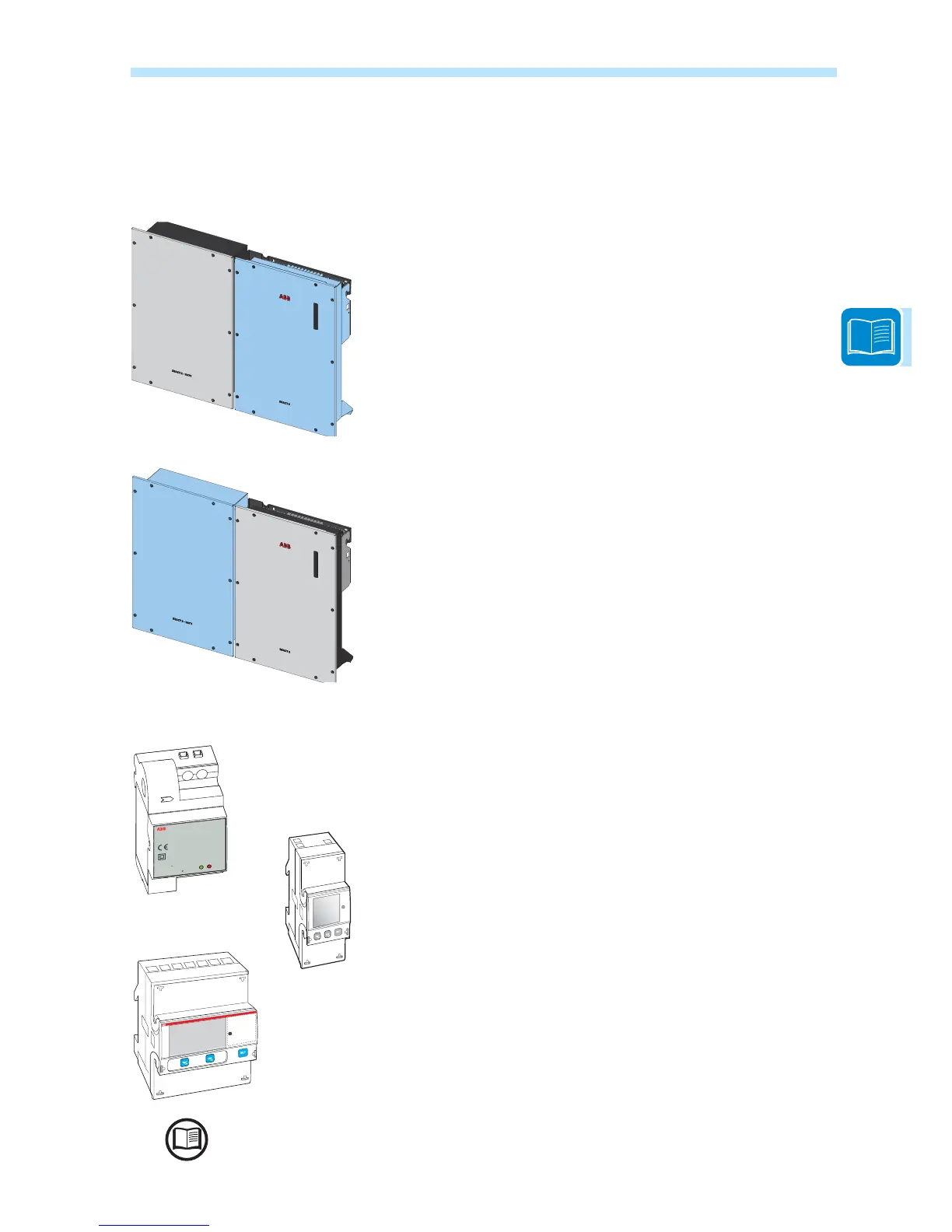

The pieces of equipment which make up the REACT2 system to which
this manual is dedicated are:
Single-phase inverter unit:
REACT2-UNO-3.6-TL single-phase, maximum output power 3600W
REACT2-UNO-5.0-TL single-phase, maximum output power 5000W
Main characteristics
1XPEHURILQSXWFKDQQHOV
,QSXWFRQQHFWRUVTXLFN¿WFRQQHFWRUVSDLUVIRUHDFKFKDQQHO
'&GLVFRQQHFWVZLWFK
:LUHOHVVRU/$1FRPPXQLFDWLRQ
0DQDJHPHQWRIH[WHUQDOORDGVWKURXJKLQWHJUDWHGUHOD\V
$&%DFNXS2XWSXWRIIJULG
Battery unit:
REACT2-BATT nominal battery capacity 4kWh
In the system up to three REACT2-BATTs can be used (maximum
capacity of the system 3x4kWh=12kWh)
Energy meter:
REACT-MTR-1PH energy meter for single-phase line
ABB B21-212 energy meter for single-phase line
ABB B23-212, B24-212 energy meter for three-phase line
7KHFKRLFHRI WKHFRPSRQHQWVIRUWKHV\VWHPPXVWEH PDGHE\DTXDOL¿HGWHFKQLFLDQZKR
knows about the installation conditions, the devices that will be installed outside the inverter
and possible integration with an existing system.
REACT-MTR-1PH
SUTATS
TSET
ERUSAEM
INPUT
:
110/230 V
50/60 Hz
10 mA max
