ABB REACT 2 Series - P- Q Curve Capability

- 31 -
000889AG
2 - Characteristics

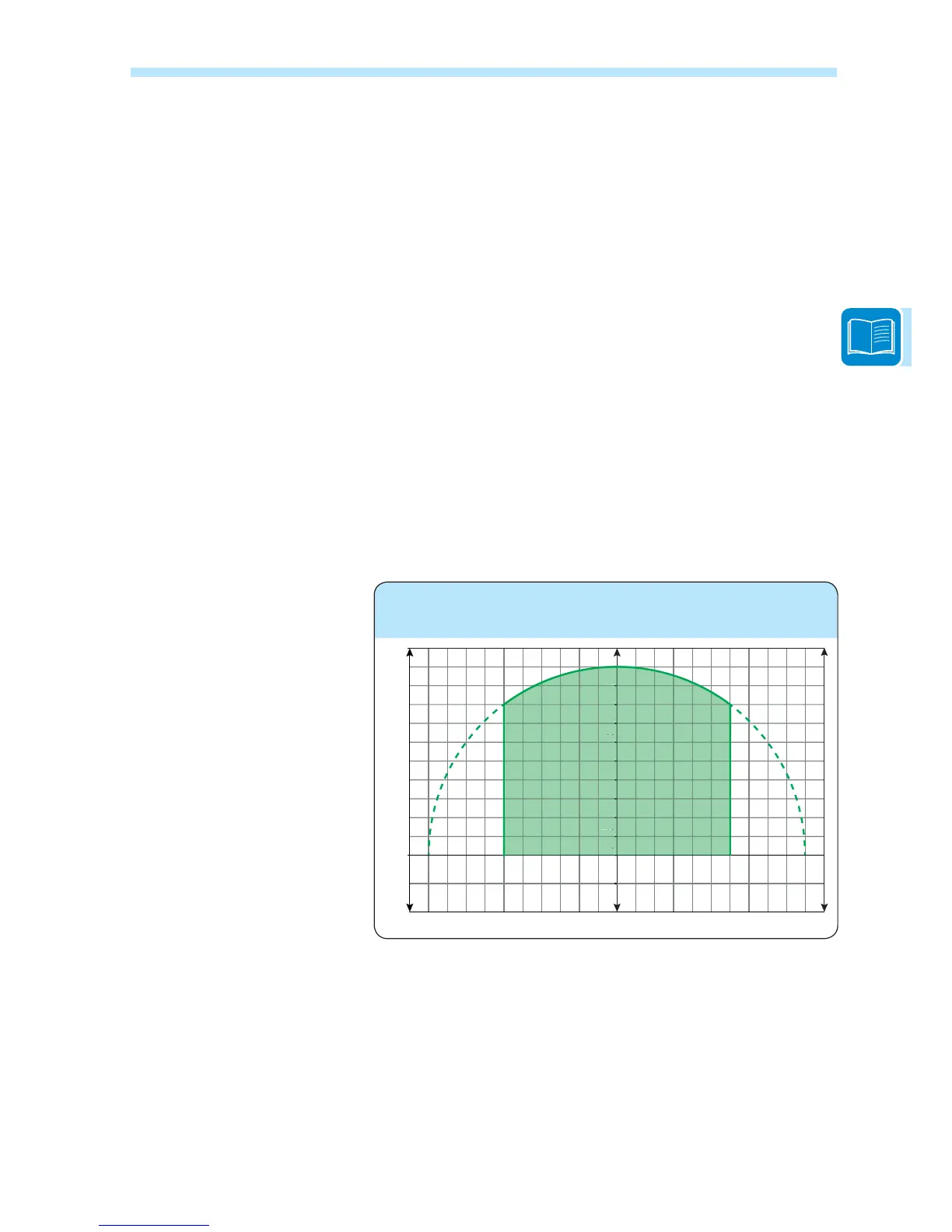

P - Q curve capability
Based on the country grid standard the P-Q capability curve can be reduced.
Conditions:
REACT2-UNO-3.6-TL
- Rated output voltage (Un) 230Vac
- Rated active power (Pn) 3600W
- Maximum apparent power (Sn) 3600VA
- Maximum reactive power (Qn) 2200VAR
- Cos -0.1 ... 1 ... +0.1
REACT2-UNO-5.0-TL
- Rated output voltage (Un) 230Vac
- Rated active power (Pn) 5000W
- Maximum apparent power (Sn) 5000VA
- Maximum reactive power (Qn) 3000VAR
- Cos -0.1 ... 1 ... +0.1
P (%)
-20
-10
Q/Pn (%)
P (%)
0
10
20
30
40
50
60
70
90
100
80
-100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 +10 +20 +30 +40 +50 +60 +70 +80 +90 +100
0
1
0
2
0
30
4
0
50
60
7
0
90
80
00
Capability P-Q
REACT2-UNO-3.6-TL
REACT2-UNO-5.0-TL
