5 - Installation
$YRLG HOHFWURPDJQHWLF LQWHUIHUHQFH WKDW FDQ FRPSURPLVH WKH FRUUHFW
operation of electronic equipment, with the consequent hazards.

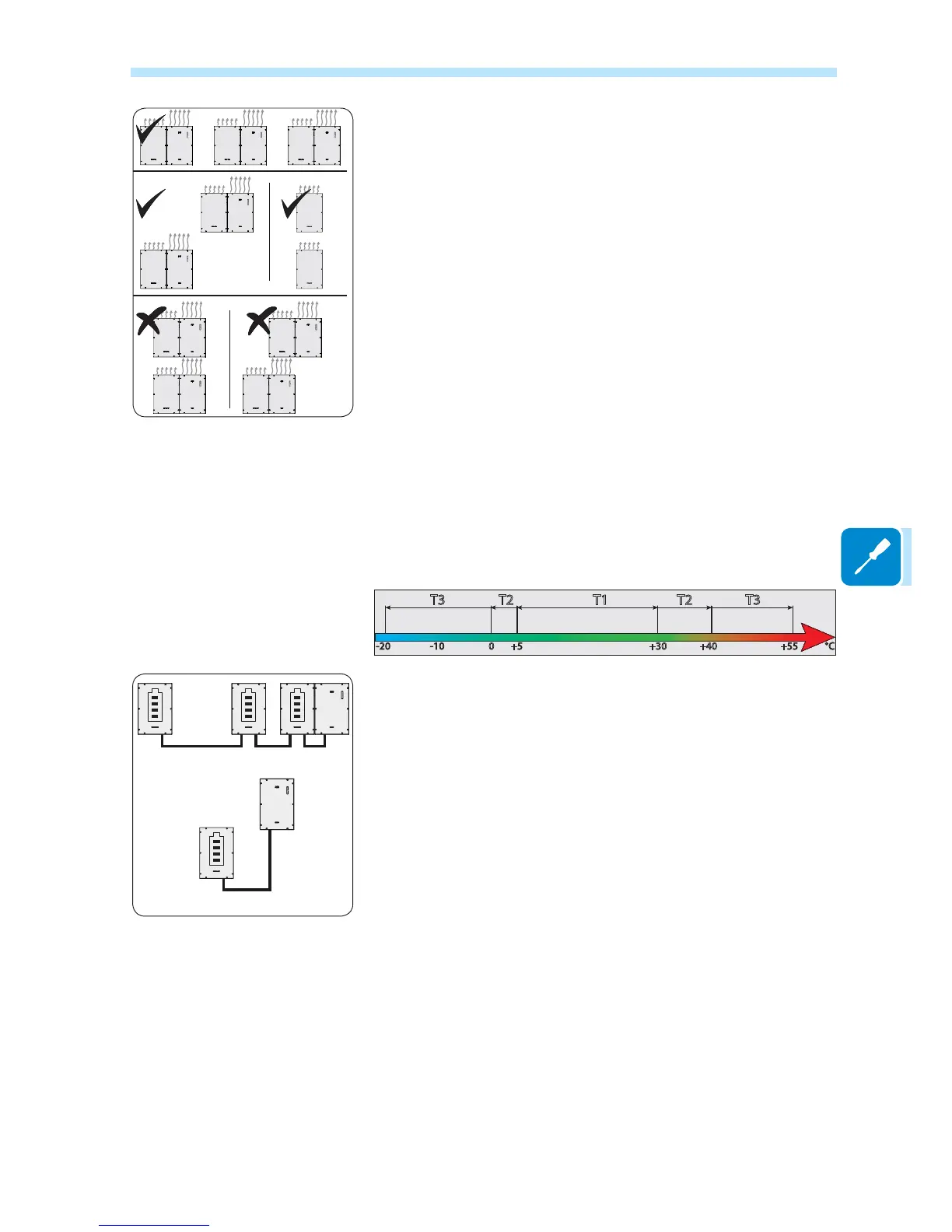

)RU D PXOWLSOH LQVWDOODWLRQ SRVLWLRQ WKH LQYHUWHUV VLGH E\ VLGH ,I
the space available does not allow this arrangement, position
the inverters in a staggered arrangement (as shown in the
¿JXUH VR WKDW KHDW GLVVLSDWLRQ LV QRW DIIHFWHG E\ RWKHU LQYHUWHUV
- Two or more REACT2-BATT can be installed one above the other.
- Do not install the REACT2-BATT above the REACT2-UNO.
The ambient temperature of the installation location should be
between 5°C and 30°C to guarantee the optimal operation of the
battery unit (REACT2-BATT). Here below are the functions available
from the system on the basis of the ambient temperature:
T1 - Optimal operation of the REACT2 system
T2 - Correct operation of the REACT2 system with possible reduction
of power
T3 - Operation limited to the inverter part only. Management of the
battery is disabled.
-20 -10 0 +5 +30 +40 +55
T1T2T3
°C
T2 T3
7KH 5($&7812 DQG 5($&7%$77 FDQ EH LQVWDOOHG VHSDUDWHO\
using the standard cable. Moreover in case of greater distances, the
LQVWDOODWLRQLVSRVVLEOHXVLQJWKH³5($&7;/&$%/(.,7´FDEOHNLW
meter cables length).
Hardware and software maintenance on REACT2-UNO entails opening
the front cover. Check that the correct installation safety distances are
observed in order to allow routine check and maintenance operations.
Install on a wall or strong structure suitable to bear the weight.
Install at a height which takes into consideration the weight of the
appliance and in a position which is suitable for servicing, unless
suitable means are provided to carry out the operation.
If possible, install at eye-level so that the synoptic can be seen easily.
XL connection
cable
Standard
connection cable
XL connection
cable
