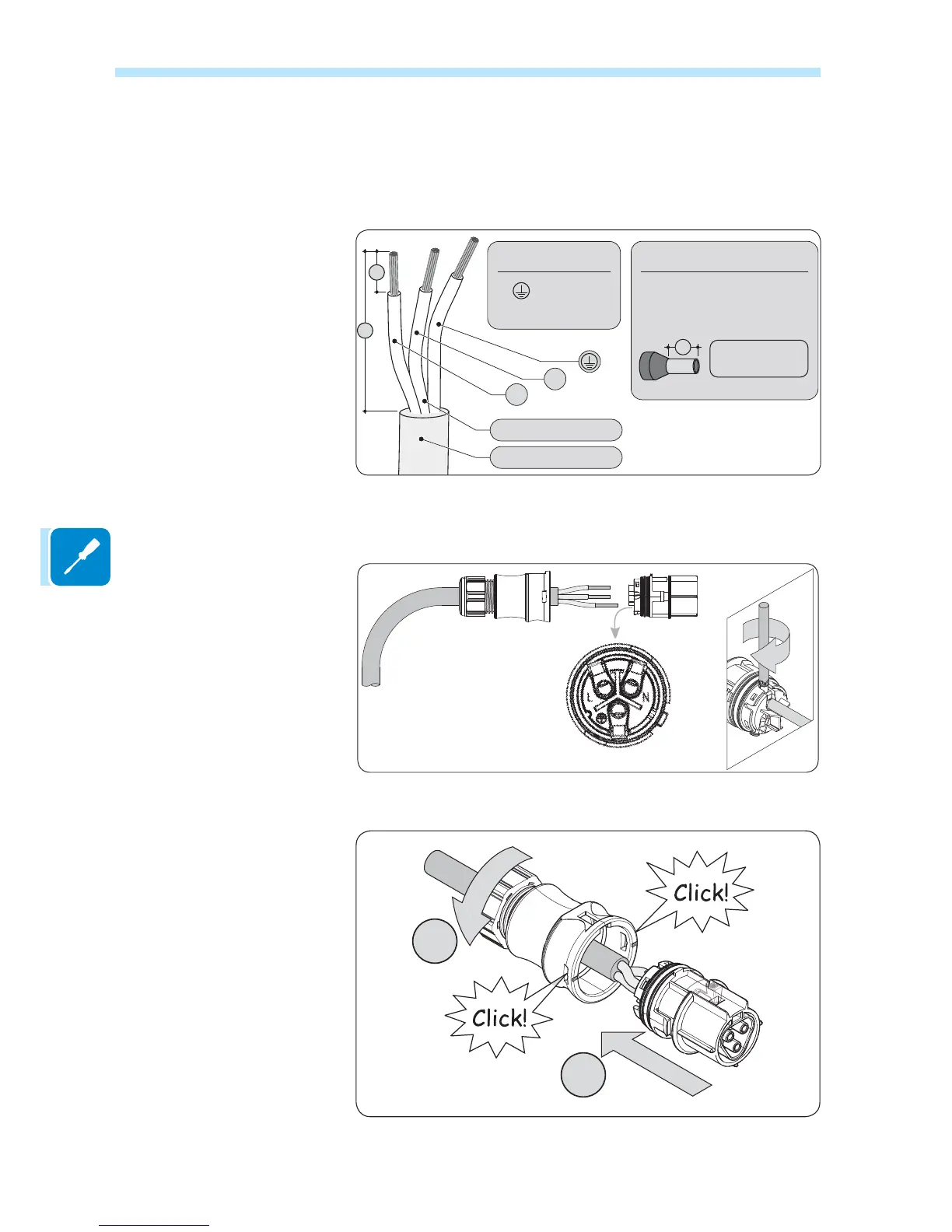

5 - Installation
3UHSDUHWKHFDEOHUHVSHFWLQJWKHIROORZLQJPHDVXUHPHQWV,W¶VSRVVLEOHWR
use both stranded or solid wire but the requirements are different.
The use of stranded wire with a conductor section values between 1.5 - 4 mm² are only allowed
with the mandatory use of properly crimped ferrules.
N
L
Max 6 mm²
12mm with ferrules*
8mm without ferrules*
X
Ø10÷14mm
X
Y
L,N 25 mm
Y
30mm
z:
10mm max
z
,QVWDOOWKHVLQJOHZLUHVSKDVHQHXWUDODQGJURXQGRQWKHKHDGRIWKH
connector respecting the indications printed on each of the three con-
nection terminals (tightening torque 0.8...1Nm)
&ORVHWKHFRQQHFWRUDQGWLJKWHQWKHFDEOHJODQGUHVSHFWLQJWKHWLJKW-
ening torque (4+1Nm) in order to guarantee the IP65 protection level
