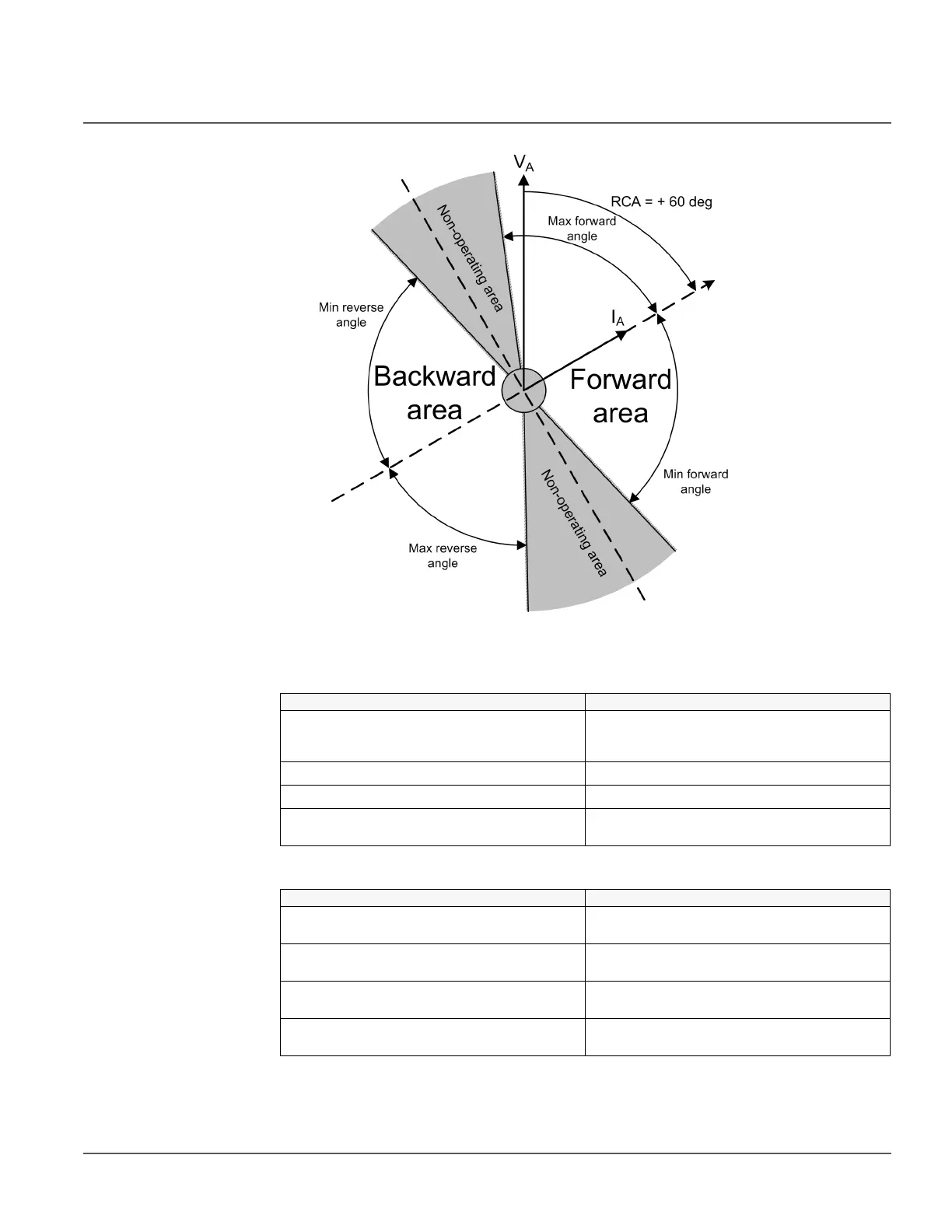

Figure 44: Configurable operating sectors
Table 127: Momentary per phase direction value for monitored data view
Table 128: Momentary phase combined direction value for monitored data view
FAULT_DIR gives the detected direction of the fault during fault situations, that is, when
the PICKUP output is active.
Criterion for per phase direction information The value for DIR_A/_B/_C
The ANGLE_X is not in any of the defined sectors,
or the direction cannot be defined due too low
amplitude
0 = unknown
The ANGLE_X is in the forward sector 1 = forward
The ANGLE_X is in the reverse sector 2 = backward
(The ANGLE_X is in both forward and reverse
sectors, that is, when the sectors are overlapping)
3 = both
Criterion for phase combined direction information The value for DIRECTION
The direction information (DIR_X) for all phases is
unknown
0 = unknown
The direction information (DIR_X) for at least one
phase is forward, none being in reverse
1 = forward
The direction information (DIR_X) for at least one
phase is reverse, none being in forward
2 = backward
The direction information (DIR_X) for some phase is
forward and for some phase is reverse
3 = both
